MOTOR MANUFACTURER · Anhui, CHINA

Anhui Weite

Anhui Weite Motor Technology in Lujiang, Hefei, supplies compact motors for scooters, e-bikes and other mobility equipment. Two current WT catalogue entries solve different wheel-integration problems: an 8-inch scooter hub and an H04 spoked-wheel geared motor. The manufacturer's short product pages list alternative voltages and power ratings but omit the exact variant matrix, torque curves and installation drawings. A buyer can narrow the correct wheel architecture here, then use the inquiry to obtain a matched motor, controller and mechanical drawing.

LocationAnhui, China
Published catalogue2 product series
Motor families2 represented

ANHUI WEITE · LIGHT-ELECTRIC-VEHICLE DRIVES

Anhui Weite: match a wheel motor to the vehicle interface

Explore the published range ↓

01 / DECIDE WHAT IS BUILT INTO THE WHEEL

An 8-inch scooter hub is not an H04 spoked-wheel assembly

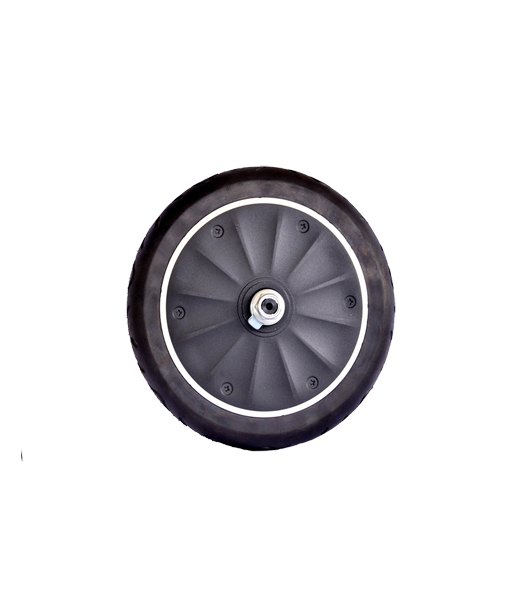

WT 8-inch scooter hub for a compact deck

The maker's scooter product page identifies an 8-inch wheel reference with 36 or 48 V and 250 or 350 W options. It does not say which voltage belongs to which winding/power combination, nor does it give axle flats, brake interface, tire size or controller pinout. A nominal 8-inch wheel label is not enough to prove interchangeability with an existing scooter fork and deck.

Confirm before ordering Send wheel/tire dimensions, front or rear position, fork dropout width and axle flats, brake type, cable exit, battery nominal/full-charge voltage, controller current limit and target speed on load. Request a single offered variant code with winding, connector and dimension drawing.

View WT electric-scooter hub motor →

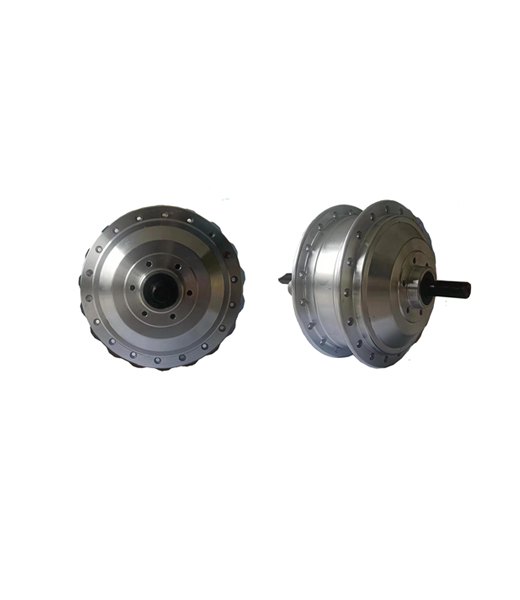

WT geared brushless motor for an H04 spoked wheel

The separate official page calls out a spoked-wheel H04 interface and lists 24/36/48 V and 180/240/350 W as alternatives. H04 is an interface reference here, not a published wheel diameter. A geared hub's spoke drilling, rim build, freewheel/brake side and sensor wiring can be incompatible with a one-piece scooter wheel even when the listed watts look similar.

Confirm before ordering Provide spoke count and flange dimensions, rim diameter, dropout and axle details, brake/freewheel arrangement, vehicle mass and climbing duty. Ask for H04 cross-section, gear ratio, torque-speed/current curve, Hall/phase wiring and serviceability of the geared assembly.

View WT high-speed brushless geared motor →

Other Weite families require their own evidence

The company also lists balance-board, mid-drive, robot, power-tool and charger categories. Their different installation and control tasks are not variants of the two wheel-motor cards above. For a mid-drive or robot project, state that architecture explicitly and request its dedicated model sheet instead of reusing scooter hub dimensions or electrical ratings.

Confirm before ordering Identify the end product and whether you need a wheel, mid-drive, standalone motor or motor-plus-controller assembly. Ask for the matching product family and current drawing before accepting a substitution.

02 / MATCH ELECTRICAL AND MECHANICAL SYSTEMS

Build one vehicle-level test brief, not a wattage-only quote

Both WT pages are brief catalogues, so a purchase decision needs evidence from the proposed exact variant. The critical fit is at the wheel, wiring and control system; nominal power by itself does not establish launch torque, hill grade or thermal behaviour.

Freeze the physical envelope

Share a wheel/fork or frame drawing, tire and rim specification, allowed axle protrusion, brake side, cable route, sealing requirement and maximum assembly mass. Ask for the manufacturer's toleranced GA drawing and sample build, then check wheel runout and brake alignment on the real vehicle.

Pair battery, controller and motor

State battery nominal and full-charge voltage, peak/continuous phase current, controller switching/control mode, Hall signals, connectors and regeneration requirement. The public voltage and power choices do not prove every pairing. Require the offered winding's back-EMF, speed-torque/current curve and thermal limit at the intended duty.

Test the load that matters

On a representative vehicle, measure start and climb current, wheel temperature, controller temperature, speed at load, noise, waterproofing at the cable exit and braking response. Record rider/load mass, grade, ambient and test duration so repeat orders can be compared to the same acceptance conditions.

03 / WHAT THE PUBLIC RECORD DOES AND DOES NOT SAY

Catalogue options are a starting point for a controlled sample

Keep the two rating lists separate

The 8-inch scooter page lists 36/48 V and 250/350 W. The H04 geared page lists 24/36/48 V and 180/240/350 W. Neither page presents a row-by-row voltage, winding, rated speed and power matrix. No nine-combination H04 family or four-combination scooter family is asserted here.

Company identity has independent support

The manufacturer's website identifies the Hefei/Lujiang legal entity and its mobility-motor categories. A 2023 Anhui specialist-SME public list and a 2024 technology-SME public list also name that legal entity. These records support company identification at those dates; they do not certify a particular WT motor, promised output or present-day quality-system scope.

Exact compliance remains variant-specific

The company biography makes broad ISO and product-certification claims but the two reviewed product pages do not identify a certificate number or the exact motor/control combination. For the destination market, request the certificate holder, model/suffix list, applicable vehicle or electrical standard and test report. Do not assume that a component certificate covers the finished scooter or bike.

Published motor range

2 series

Company information

Company name
Anhui Weite Motor Technology Co., Ltd
Chinese registered name
安徽微特电机科技有限公司
Region
Anhui, China
Record updated
2026-10-07
