MOTOR MANUFACTURER · Liaoning, CHINA

Dandong Huanghai

Dandong Huanghai Electric Motor in Donggang publishes a broad induction-motor catalogue spanning ordinary, inverter, brake, lifting and high-voltage families. Its MotorSourcing entries currently focus on YBX4 flameproof-motor frame pages. These three official pages identify 225M, 250 and 355M headings but reuse the same general efficiency-motor paragraph; they do not provide a separate output, speed or explosion-protection marking for each frame. The procurement decision is therefore not which heading looks larger. It is which exact certified motor can run the real load safely in the specified hazardous zone and electrical system.

LocationLiaoning, China
Published catalogue3 product series
Motor families1 represented

DANDONG HUANGHAI · HAZARDOUS-AREA MOTOR PROCUREMENT

Dandong Huanghai: specify YBX4 flameproof duty before comparing frames

Explore the published range ↓

01 / DEFINE THE INSTALLATION

An Ex motor starts with site classification, not a frame number

The official YBX4-225M, YBX4-250 and YBX4-355M pages sit in the flameproof category. Their shared paragraph gives broad induction-motor conditions, but an Ex application needs a much more specific evidence package.

Area, substance and temperature

State zone or division, gas or dust group, temperature class, ambient range, altitude and installation country. Ask the supplier to match these conditions against the exact protection marking and certificate schedule of the proposed model. A category label or a generic IP55 statement cannot establish hazardous-area suitability.

Electrical and thermal duty

Supply rated voltage/frequency, starting method, inverter use, minimum continuous speed, load-torque curve, starts per hour and duty cycle. The repeated catalogue paragraph gives a 380 V/50 Hz baseline, IC411 and F insulation, but it is not a frame-specific approval for alternate voltage, frequency or converter operation.

Installation and maintenance boundary

Provide mounting, shaft and coupling drawings, cable-entry and terminal-box requirements, enclosure exposure and maintenance access. Require certified accessories and the maker's instructions for glands, thermal protection and repair; an apparently similar non-Ex motor is not an acceptable substitute.

02 / READ EACH CATALOGUE HEADING CORRECTLY

225M, 250 and 355M are leads for inquiry, not complete specifications

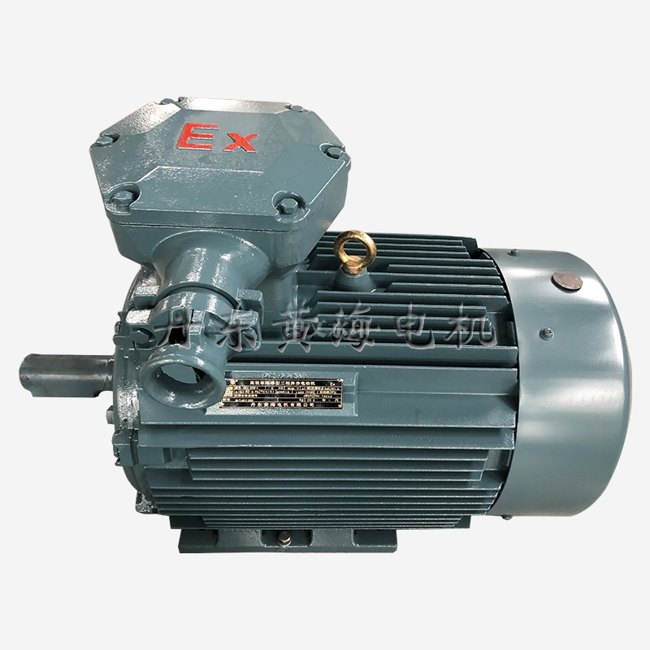

YBX4-225M heading

The official page names a 225M entry and places it under flameproof three-phase motors. Its main paragraph is the same broad H80–H355, 0.75–315 kW, 2/4/6-pole text used on the 250 and 355M pages. Those figures describe a broad family envelope; they cannot be read as a 225M output or pole configuration.

Confirm before ordering Request the complete 225M model suffix, kW, poles/rpm, rated current, efficiency, Ex marking, certificate/model schedule and dimensional drawing. Confirm the intended duty and installation country against that exact code.

View YBX4-225M high-efficiency flameproof motor →

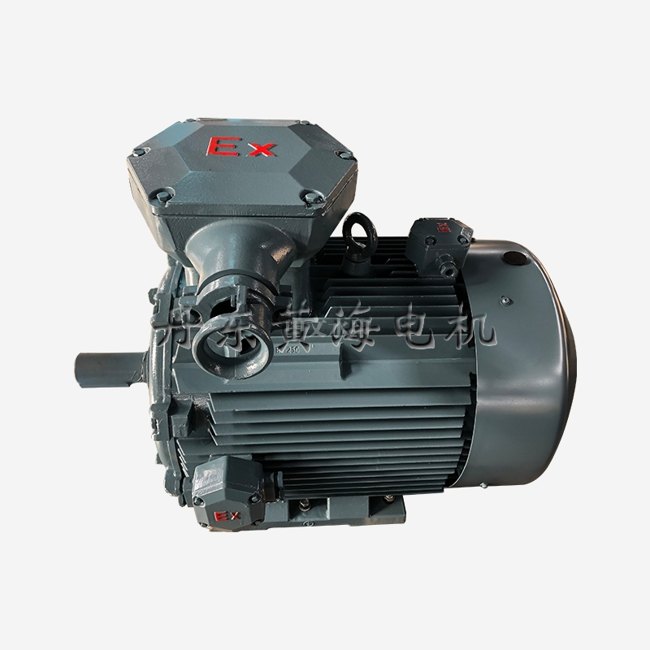

YBX4-250 heading

The 250 page also lacks a separate rating row. Its text repeats the same 380 V/50 Hz, IP55, IC411 and ambient statements. These are useful questions for the supplier, but do not prove the offered 250 variant has a particular power, speed, mounting or current certificate.

Confirm before ordering Supply shaft/load and installation drawings, then ask for the exact 250 subframe and suffix, rated operating point, Ex certificate and terminal-box/cable-entry configuration. Compare running and starting current against the plant supply.

View YBX4-250 high-efficiency flameproof motor →

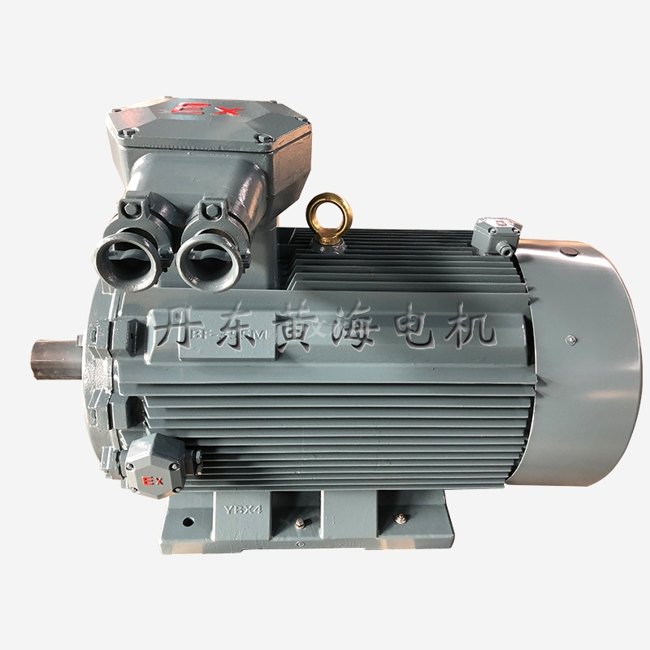

YBX4-355M heading

The 355M page again repeats the family paragraph rather than a 355M-specific table. A larger frame may change starting impact, thermal handling and mechanical fit, but the source does not establish a particular 355M output or inertia. Treat a higher-kW assumption as unverified until the exact technical sheet is supplied.

Confirm before ordering Request output, poles, inertia, starting method, efficiency test report, bearing/shaft and cooling details for the actual 355M variant. Verify the matching Ex marking and certified drive conditions before a replacement decision.

View YBX4-355M high-efficiency flameproof motor →

03 / TURN AN INQUIRY INTO A CHECKABLE OFFER

One current document set should tie the motor, site and test together

Company and manufacturing scope

The official company introduction identifies a design, manufacture, sales and repair operation in Donggang and lists YBX3/YB3, YVF2, YEJ, YD, crane-duty and Y/YR/YKK high-voltage branches. A Donggang municipal industrial plan names Huanghai Motor among enterprises it intended to support; an older national energy-inspection list names the company. These records corroborate industrial identity at their publication dates, not approval of a particular 2026 motor.

Do not inherit an obsolete efficiency claim

The YBX4 product copy cites GB 18613-2012 and IEC 60034-30:2008/IE3 language. These are dated references on reused pages, not evidence that the proposed unit meets the current destination-market rule. Ask for the exact motor's current efficiency test report and applicable standard edition.

Acceptance sequence

Compare offers only after the model code, Ex marking, protection method, certificate scope, nameplate, drawing and operating curve are aligned. Verify loaded current and temperature, starting behaviour, vibration and cable-entry installation against the site. Retain unit serial and document revision so the approved design can be checked at delivery.

Published motor range

3 series

Company information

Company name
Dandong Huanghai Electric Motor Co., Ltd.
Chinese registered name
丹东黄海电机有限公司
Region
Liaoning, China
Record updated
2026-10-07
