MOTOR MANUFACTURER · Shanghai, CHINA

Haiguang Motor

Shanghai Haiguang Electric Motor makes several drive architectures in Fengxian: HE-series three-phase induction motors, inverter-duty motors, pole-changing motors and electromagnetic-brake motors. These are not options that can be inferred from an HE3 label. For a replacement, first establish whether the machine needs fixed-speed efficiency, continuously controlled speed, discrete pole-switched speeds or a stop/hold mechanism. The HE3 family is the currently documented MotorSourcing product entry; the other official catalogue branches help frame the inquiry without creating unsupported model pages.

LocationShanghai, China
Published catalogue1 product series
Motor families1 represented

SHANGHAI HAIGUANG · INDUSTRIAL DRIVE CHOICES

Shanghai Haiguang: choose induction, speed or braking duty

Explore the published range ↓

01 / DEFINE THE REQUIRED MOTION

Select the motor architecture before comparing efficiency labels

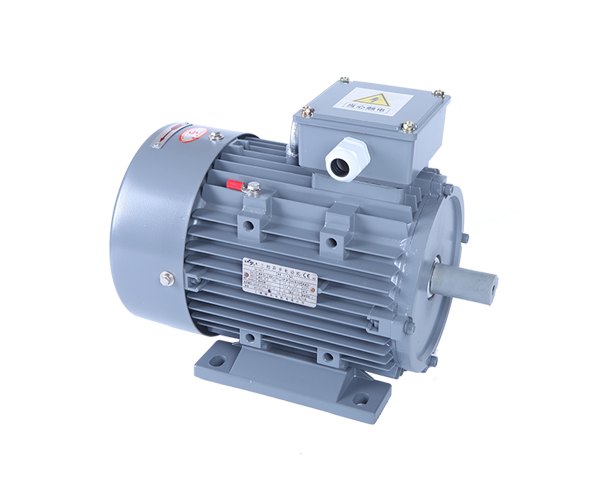

HE3 for a three-phase induction replacement

Haiguang groups HE2 and HE3 as efficient induction families and publishes a broad 0.75–355 kW, 2/4/6-pole range across them. That is a combined catalogue scope, not a row-by-row HE3 model matrix. The maker also describes an HE2/HE3 IP54 technical-condition document; request the current sheet and nameplate for the exact frame, frequency, voltage, output, efficiency and mounting needed in the plant.

Confirm before ordering Supply the failed motor's full nameplate and mounting drawing, driven-load curve, duty, ambient, voltage and frequency. Ask for the exact HE3 model code, efficiency test basis for the destination market, bearing/shaft dimensions and motor-protection settings. Do not assume the official sample-check model covers another frame or suffix.

View HE3 three-phase induction motor →

YVF2 when a converter controls operating speed

The official catalogue separately names YVF2 variable-frequency induction motors and gives a family centre-height/power span. A VFD requirement changes cooling and insulation questions, especially at sustained low speed; the public HE3 overview does not claim that an ordinary HE3 configuration has the same speed/torque envelope.

Confirm before ordering State converter type, carrier frequency, operating frequency range, torque at minimum speed, cable length and blower or cooling arrangement. Request a specific YVF2 variant sheet and motor-drive pairing rather than substituting an HE3 from kW alone.

YD steps or YEJ braking when the motion pattern demands them

YD is described as a pole-changing family with discrete speed arrangements, not infinitely variable VFD control. The maker separately lists YEJ/YDEJ/YVPEJ electromagnetic-brake variants, with AC or DC brake choice and different release/energise behaviour. A brake option is a controlled assembly and must be defined by stopping and holding duty; it is not a feature of every HE3 motor.

Confirm before ordering For YD, provide required discrete speeds, switching sequence and load at each step. For a brake drive, state stop frequency, load inertia, vertical-load risk, power-off response, release voltage and required holding torque; ask for the exact brake and motor combination and safety assessment.

02 / MAKE THE QUOTE COMPARABLE

One operating brief prevents the wrong motor family from being quoted

Haiguang's official pages present a wide manufacturing scope but not a universal interchangeable specification. Build a short application brief before comparing offers from the catalogue branches.

Electrical and duty conditions

Record rated supply, phase/frequency, starting method, converter use, start count, run hours and load torque at each speed. If energy performance is the buying reason, request a tested efficiency value for the exact voltage/frequency/model and the relevant current standard; an HE2/HE3 family claim is insufficient for a saving calculation.

Mechanical and thermal fit

Attach old frame/shaft/key and foot or flange dimensions, coupling load, enclosure requirement, ambient and altitude. State whether cooling air is available at low rpm and whether an auxiliary fan is needed. Require the quoted drawing and thermal derating for the actual mounting and controller.

Acceptance and traceability

Test the offered motor at the real duty: loaded speed/current, winding and bearing temperature, start or brake response and vibration. Retain the unit serial/nameplate, model suffix, test report and certificate model list. For a braking or VFD application, accept the full drive assembly rather than the motor alone.

03 / A PRECISE PUBLIC CHECK

One inspected HE3 sample is evidence, not a family-wide approval

What the Shanghai inspection actually says

Shanghai's market regulator published its 2022 energy-label measurement inspection in January 2023. It listed Haiguang's HE3-100L1-4 three-phase induction motor among the sampled products whose inspected items met the relevant requirements. The listing names that model and sample/batch identifiers; it does not assert that every HE3 frame or current production lot has passed the same inspection.

Company identity is separately checkable

The official company page identifies Shanghai Haiguang Electric Motor and its Fengxian address and product scope. A Shanghai electronic business-licence record names the same Chinese legal entity and Fengxian address. The licence display lists another site domain, so it is used here for legal identity only, not to claim ownership of every site carrying the brand.

Keep certification and efficiency model-specific

The maker's overview includes historical certification and efficiency-standard claims, but no certificate number or present-day model scope for the unit a buyer would receive. Its HE2/HE3 text combines grade and IE language in a way that should not be mapped to an exact HE3 suffix without a current test report. Ask for the applicable certificate and test results for the quoted motor and destination market.

Published motor range

1 series

Company information

Company name
Shanghai Haiguang Electromotor Co.,.Ltd.
Chinese registered name
上海海光电机有限公司
Region
Shanghai, China
Record updated
2026-10-07
