MOTOR MANUFACTURER · Henan, CHINA

Henan Nanyang

Henan Nanyang publishes ordinary YE4/YE5 induction motors, YBX4 dust-area motors and a high-voltage flameproof family. Start with the plant's hazardous-area classification, then match the exact motor marking and certificate. Its catalogue mixes older protection terms and has a YB3/YBX3 naming conflict; obtain a signed model-specific sheet before purchase.

LocationHenan, China
Published catalogue4 product series
Motor families2 represented

HENAN NANYANG · ORDINARY AND HAZARDOUS-AREA DRIVES

Henan Nanyang: separate ordinary drives from hazardous-area motors

Explore the published range ↓

01 / THE AREA DECIDES THE PRODUCT FAMILY

Classify the location before comparing motor efficiency or price

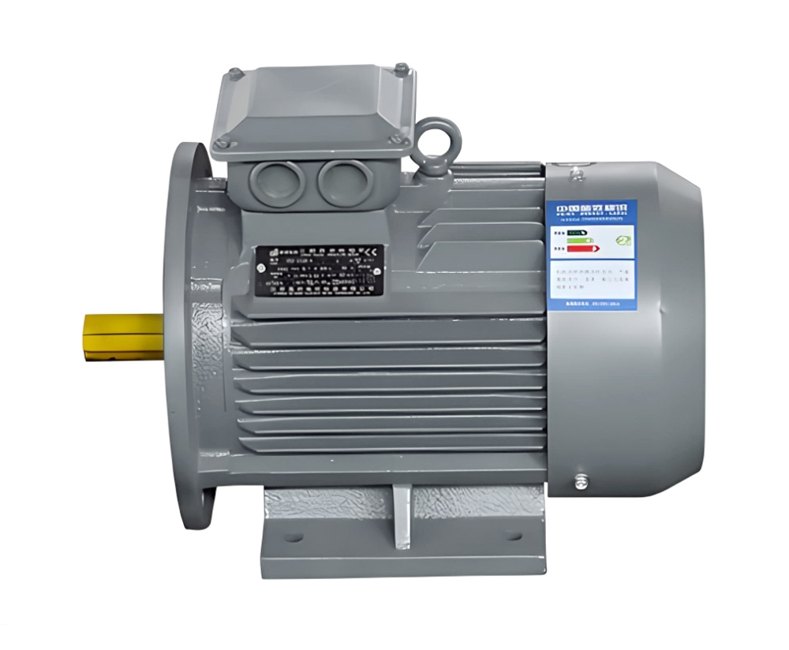

Ordinary industrial duty: YE4 or YE5

The official YE4 and YE5 pages position both as general three-phase induction families for pumps, fans, compressors and other machinery. Each gives a broad 0.55–375 kW, 50 Hz series scope with IC411 cooling and B3, B5 or B35 mounting alternatives. These are family ranges, not proof that every frame, voltage, pole count and efficiency combination is available. An ordinary YE motor must not be selected for a hazardous zone merely because this manufacturer also sells explosion-protected motors.

Confirm before ordering Provide the load curve, current nameplate, supply and starting method, mechanical drawing, ambient and target efficiency rule. Require a full model code and an efficiency test value at the ordered rating; compare YE4 with YE5 on the same duty, not just their series names.

View YE4 high-efficiency three-phase induction motor →

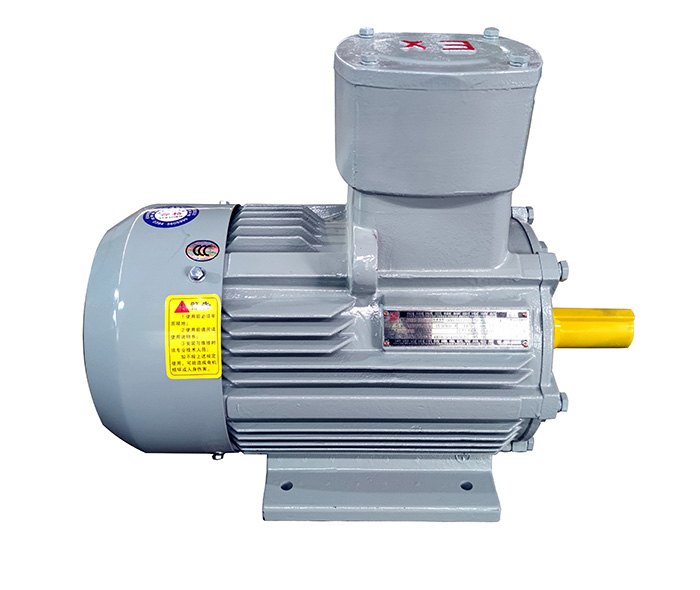

Combustible dust: check the exact YBX4 protection mark

The YBX4 dust page describes a 63–355 frame range and prints Ex tD A21 T135°C among several legacy dust marks, while parts of the same text also discuss gas and mine uses. Its generic prose cannot establish that a particular offered serial-numbered motor is approved for both gas and dust. Dust zone, dust group, maximum surface temperature and ingress protection must be checked against the exact certificate and current local requirements.

Confirm before ordering Give the classified zone, dust type, ignition temperature, ambient and cleaning method. Request the precise motor marking, certificate number, scope, IP rating, cable-entry details, nameplate photo and permitted converter operation for the quoted variant.

View YBX4 dust explosion-proof motor →

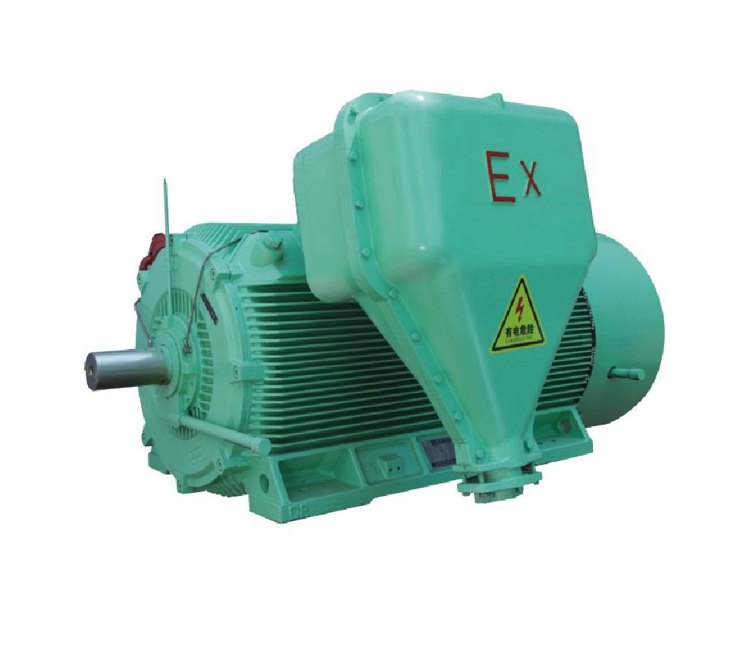

High-voltage flameproof: resolve the YB3/YBX3 name first

The official high-voltage page is titled YB3 but its technical body repeatedly calls the family YBX3. It discusses 3, 6 and 10 kV service, S1 operation and hazardous-area marks, yet gives slightly different voltage and cooling ranges in separate paragraphs. The page is evidence of a published high-voltage offering, not a sufficiently consistent specification for a purchase order.

Confirm before ordering Ask the manufacturer to confirm whether the offer is YB3 or YBX3 and issue one model-specific datasheet covering voltage, starting current, IC411 or IC416 cooling, bearing, mounting, exact Ex mark and certificate. Include the plant single-line diagram, protection settings, load torque/inertia and foundation drawing.

View YB3 high-voltage explosion-proof motor →

02 / A NAME IS NOT A TEST RESULT

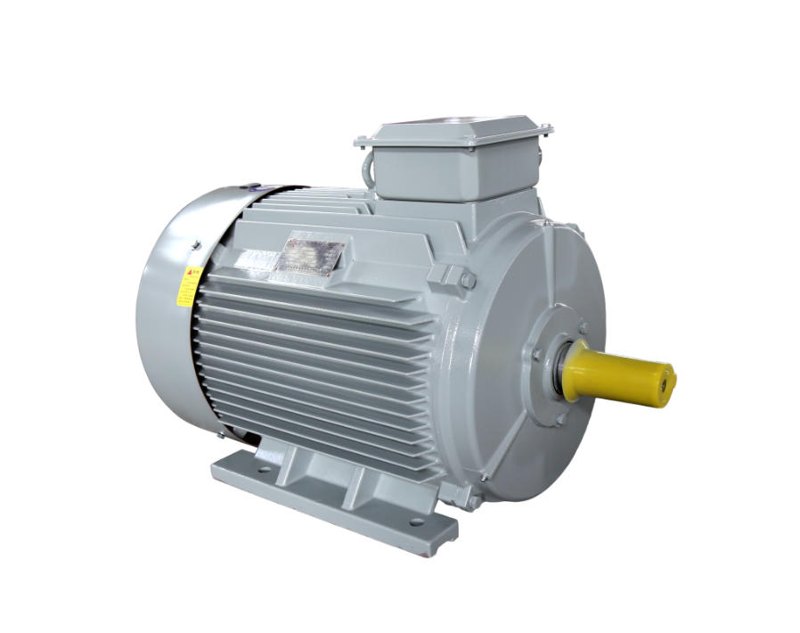

YE5 needs a current rating-specific efficiency record

The maker's YE5 page puts a Chinese grade-one statement beside an IE4 reference; the YE4 page also refers to IE4. Those labels cannot by themselves identify the measured efficiency of a supplied motor in the destination market.

Keep each operating condition together

The YE5 page gives 50 Hz and 380 V, 600 V, 1140 V and dual-voltage series options. Ask for the offered full code, exact rated output, pole count, frequency, voltage, duty, cooling, efficiency and power factor on the same technical sheet. A series envelope should not be recast as one selectable machine.

Compare energy on the actual load

For a replacement, reconcile frame and shaft dimensions, running load, yearly hours and converter operation. Use a tested efficiency at the relevant load and supply to model energy cost; the catalogue's high-efficiency heading alone does not establish a saving over the installed motor.

03 / ACCEPTANCE PACKAGE

The certificate, nameplate and installation must describe the same motor

What exactly is the classified atmosphere?

Identify coal mine, gas or combustible dust from the site's own area-classification document. Give the zone, group, temperature limit, ambient range and whether explosive atmospheres can be present during starting, cleaning or maintenance. Do not carry a mark from a YBX4 catalogue paragraph into a high-voltage YB3 inquiry.

What does the traceable certificate cover?

Request the actual certificate and validity/status check for the ordered legal entity, model suffix, protection concept, temperature class, cable entries and permitted operating modes. Confirm whether use with a frequency converter is within that scope and which thermal protection is mandatory.

What will be checked before shipment and commissioning?

Agree on the final nameplate, outline and terminal drawings, routine electrical tests, temperature-rise and vibration evidence, spare parts and installation instructions. For a high-voltage unit also define starting study, relay coordination, insulation and bearing acceptance.

04 / PUBLIC MATERIAL VS ORDER EVIDENCE

Corporate identity is independently visible; model conformity remains order-specific

Same named manufacturer

The official catalogue identifies 河南省南洋防爆电机有限公司 in Shangshui County, Zhoukou. A Henan government enterprise list includes the same Chinese company in Shangshui, and an older Zhoukou government research-centre list names it as a supporting unit. These independent records corroborate company identity at their respective dates; they do not approve the four present catalogue families.

Do not promote historic or mixed wording into an approval

The hazardous-area pages quote older editions of explosive-atmosphere standards and combine multiple protection descriptions. The high-voltage page differs between YB3 title and YBX3 body. The efficiency pages mix grade and IE terms. This profile keeps those discrepancies visible so the buyer can demand a current, signed, variant-specific document set instead of relying on broad web copy.

Published motor range

4 series

Company information

Company name
HeNan NanYang Explosion-proof Motor Co., Ltd.
Chinese registered name
河南省南洋防爆电机有限公司
Region
Henan, China
Record updated
2026-10-07
