MOTOR MANUFACTURER · Hubei, CHINA

Huada Motor

Wuhan Huada makes motion-control motors for machinery and automation. Its publicly described scope extends beyond one standard rotary servo: the parent-company catalogue lists LEE, ST and LDD families, while the company profile also identifies low-voltage and frameless servos, spindle motors and linear motors. For a buyer, the first decision is the axis job and its matched drive and feedback—not a frame size copied from a catalogue headline.

LocationHubei, China
Published catalogue1 product series
Motor families1 represented

HUADA · SERVO AXIS PROCUREMENT

Huada Motor: specify the servo axis, not just a motor frame

Explore the published range ↓

01 / START AT THE MACHINE

A feed axis, spindle and compact actuator do not ask the same question

Huada's parent-company site publishes separate servo families and names spindle, frameless and linear motors in the manufacturer's scope. A buyer should identify the machine function before comparing catalogue names.

Positioning or feed axis

LEE, ST and LDD are distinct names in the published servo range. The LDD description specifically pairs its permanent-magnet motor with a servo drive and position feedback such as encoder or resolver. Choose from a load and move profile, not from the shared word ‘servo’.

Confirm before ordering Send load inertia, reflected inertia, travel, acceleration, cycle time, holding or braking requirement, mounting envelope and target position accuracy.

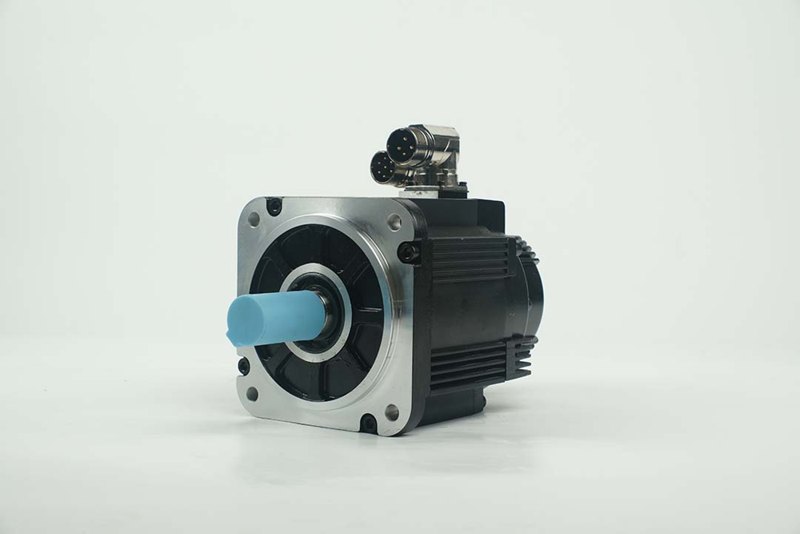

View LEE / ST / LDD industrial servo motor range →

Rotating machine spindle

The company profile separately names turning electrospindles and spindle servo motors. These are not a substitute for a feed-axis servo selected on the same nominal power alone: speed range, thermal behavior, bearing arrangement and tooling interface drive the choice.

Confirm before ordering Provide continuous and intermittent spindle speed, cutting torque cycle, tool interface, cooling method and allowable vibration; ask which published spindle family actually covers it.

Compact or direct-drive motion

Low-voltage, frameless and linear motors appear in the company scope, but the public overview does not establish a one-for-one replacement for any LEE, ST or LDD unit. The mechanical integration and control system must be reviewed as a separate project.

Confirm before ordering State supply, available space, moving mass, force or torque over travel, feedback arrangement, heat path and who will integrate the rotor or linear stage.

02 / THE ENGINEERING HANDOFF

Specify the motor, drive and feedback as one operating system

The LDD product description explicitly treats motor and servo drive as a coordinated system. Its published text names encoder and resolver as possible feedback elements; it does not say every variant can use either feedback device or every drive.

Torque through the full move

Ask for the selected model's continuous and peak torque curves at the required speed, with duty and ambient stated. A family power span or a maximum-speed line cannot prove the machine's acceleration or thermal margin.

Drive and feedback compatibility

Request exact motor code, compatible drive model and firmware, feedback type and resolution, brake option, connector pinout and cable length. Confirm the whole set before treating a motor-only quote as a working axis.

Installation and acceptance

Obtain the model drawing, shaft/flange tolerances, mass and inertia, protection/cooling conditions and the applicable test record. For a CNC retrofit, include the existing controller interface and mechanical coupling so the proposal can be checked without assuming plug compatibility.

03 / WHAT CAN BE VERIFIED

A real manufacturing identity; a model-specific quote still needs evidence

The manufacturer's parent, Wuhan Huazhong Numerical Control, names Wuhan Huada New Type Motor Technology Co., Ltd. and its servo-related lines on its corporate site. The parent company's 2025 annual report lists the same legal entity as a subsidiary developing and producing motors and controls. Those records establish the identity and business scope; they do not certify a particular quoted motor, lead time or application approval.

For a new CNC axis

Describe the machine axis, payload, inertia, motion profile, accuracy, mains or DC supply, cabinet drive, feedback and brake, mounting dimensions, quantity and commissioning location. Request a motor–drive pairing and a dated data sheet for the exact code.

For a replacement

Send photographs of the motor nameplate and connectors, existing drive/controller model, failure symptom, shaft/flange drawing and cable length. Identify which interfaces may change; the same frame number is insufficient evidence of electrical or feedback compatibility.

For supplier comparison

Ask every bidder to identify its actual manufacturing entity, offered model and variant, torque-speed curve, feedback/drive combination, drawing revision, tests supplied and service path. Compare equivalent operating points instead of mixing catalogue maxima.

Published motor range

1 series

Company information

Company name
Wuhan Huada New Type Motor Technology Co., Ltd.
Chinese registered name
武汉华大新型电机科技股份有限公司
Region
Hubei, China
Record updated
2026-10-07
