MOTOR MANUFACTURER · Heilongjiang, CHINA

Jiamusi Electric Machine

A 220t haul truck's electric wheel is a vehicle powertrain, while a fracturing skid needs a high-voltage pump drive. Jiamusi publishes both paths; keep the motor, converter, gearing and duty evidence tied to the chosen machine.

LocationHeilongjiang, China
Published catalogue2 product series
Motor families1 represented

JIAMUSI · APPLICATION-ENGINEERED ELECTRIC DRIVES

Jiamusi Electric Machine: haul-truck wheel drives versus fracturing-pump motors

Explore the published range ↓

01 / SELECT THE DUTY

The truck axle and the plunger pump require different purchase packages

220t haul truck: wheel, motor and generator interfaces

The manufacturer's 220t mining-truck catalogue distinguishes a 750kW, six-pole, 1140V asynchronous wheel-drive motor from the complete electric-wheel assembly, which lists a 31.875:1 gear ratio. It separately lists a 1750kW, eight-pole, 1110V electrically excited main generator. These are distinct components of a vehicle drive system; the generator rating is not wheel power, and the wheel gear ratio cannot be copied to a stand-alone motor quotation.

Confirm before ordering Provide gross vehicle mass and payload duty, grade and speed cycle, wheel/axle envelope, gearbox and brake boundaries, converter/DC-bus architecture, cooling flow, dust/water exposure and regeneration plan. Ask for the matched power-flow drawing and continuous/peak torque-speed maps of the offered wheel drive.

View 750 kW induction drive motor for 220 t haul trucks →

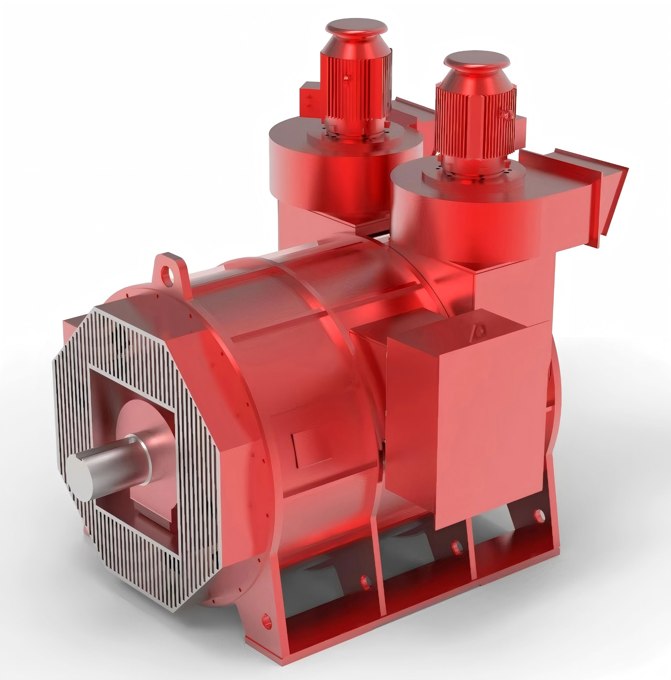

YPT fracturing drive: pump speed and thermal envelope

Jiamusi's separate YPT fracturing-truck page describes a high-voltage variable-frequency three-phase induction motor for a plunger pump, with H500–H800 frames, 4–6 poles and 3/6/10kV alternatives. Its 2000–10000hp statement is a family range, not one machine's rating. A frac pump's pressure/flow strokes, starts, repeated load changes and cooling arrangement set the actual motor-converter package.

Confirm before ordering State pump model, plunger size, fluid/pressure programme, speed range, overload duration, skid envelope, site ambient and available high-voltage VFD. Request exact-motor output, torque-speed, efficiency, insulation and vibration evidence, plus VFD and cable-interface limits.

View YPT high-voltage drive motor for fracturing pumps →

02 / WHERE SPECIFICATIONS GET MIXED

Do not transfer a safety label or a catalogue maximum across families

Hazardous areas need an exact variant

The same manufacturer also publishes protected YPT variants, including a different high-voltage flameproof series with its own H355–H560 power range and cooling language. The truck wheel-drive and fracturing pages do not by themselves establish a particular Ex approval. Request the area classification, complete Ex marking and current certificate for the exact quoted motor where required.

Motor, wheel and power source are not one catalogue row

The 220t vehicle catalogue lists wheel assembly, traction motor and main generator separately. Confirm which supplier owns inverter, braking, gearset and excitation interfaces, and which tests are conducted as components versus a complete installed truck. The 31.875:1 ratio only describes the published wheel assembly, not every 750kW motor.

03 / BUYER HANDOVER

Compare complete performance maps instead of nameplate kW alone

What must the buyer send?

For a truck, send route grades, payload and duty histogram, target top speed, wheel/axle space, regenerative braking, cooling and electrical single-line. For a frac skid, send pump pressure-flow programme, duty timeline, voltage/VFD scheme, ambient conditions, cable route, foundation and maintenance access. State any classified-area requirement separately.

What should a valid offer return?

Request a fully coded motor with continuous and transient torque-speed limits, current and efficiency points, cooling and enclosure, outline/shaft and terminal drawings, converter/excitation and protection interfaces, option list, actual test plan and the ownership split between motor and vehicle or skid integrator.

What evidence closes acceptance?

Link routine electrical, insulation, balance, vibration and thermal records to serial numbers. For a truck, verify integrated wheel gearing, brake and regeneration tests under vehicle loads. For a frac skid, verify pump-load transients and cooling at the VFD's low and high speed points. A factory brochure alone does not establish site acceptance.

04 / VERIFIED BOUNDARY

Company-level disclosure and exact equipment sheets answer different questions

The enterprise and product families are documented

The company's current catalogue identifies the truck's electric wheel, induction drive motor and excited generator as separate pieces, and an independent stock-exchange filing identifies the listed enterprise and its wider special-motor business. Neither is a purchase-order drawing for a specific truck or fracturing skid.

Known gaps stay open until the quote

The public truck listing lacks a complete converter and temperature-rise map; the YPT fracturing page gives family power and voltage alternatives without a paired model table. This profile does not invent a combined rating, infer a protected-area certificate, or claim that every option is available for every frame.

Published motor range

2 series

Company information

Company name
Jiamusi Electric Machine Co., Ltd.
Chinese registered name
佳木斯电机股份有限公司
Region
Heilongjiang, China
Record updated
2026-10-07
