MOTOR MANUFACTURER · Jiangsu, CHINA

Pinnxun Motor

Jiangsu Yinglong sells high-voltage motors under Pinnxun. Its Y2 compact enclosed machine and YKK box-frame air-to-air cooled machine answer different site constraints. Decide how heat leaves the motor, how the shaft is allowed to turn and what the grid can start before comparing the broad catalogue power ranges.

LocationJiangsu, China
Published catalogue2 product series
Motor families1 represented

HAI'AN · HIGH-VOLTAGE INDUCTION MOTORS

Pinnxun high-voltage motors: choose Y2 or YKK cooling

Explore the published range ↓

01 / START WITH THE INSTALLATION

Y2's frame cooling is not YKK's top-mounted exchanger

Y2 compact: check rotation and fin-clearance early

The official Y2 page describes an enclosed, finned-frame squirrel-cage high-voltage induction motor with IC411 cooling, horizontal foot mounting as standard and S1 duty. It offers IP54/IP55 alternatives and lists several frame, voltage and pole families. The same page warns that the high-speed external fan is one-way and the motor must not be reversed. A reversible hoist or process train therefore cannot be approved from the Y2 family label alone.

Confirm before ordering Send the equipment's normal and abnormal rotation requirements, shaft direction viewed from the drive end, site voltage/frequency, start inertia and number of starts, fin/air-flow clearances, ambient dust and mounting drawing. Request a named Y2 type, fan-rotation drawing, current/torque and temperature-rise test at the selected supply.

View Y2 compact high-voltage induction motor →

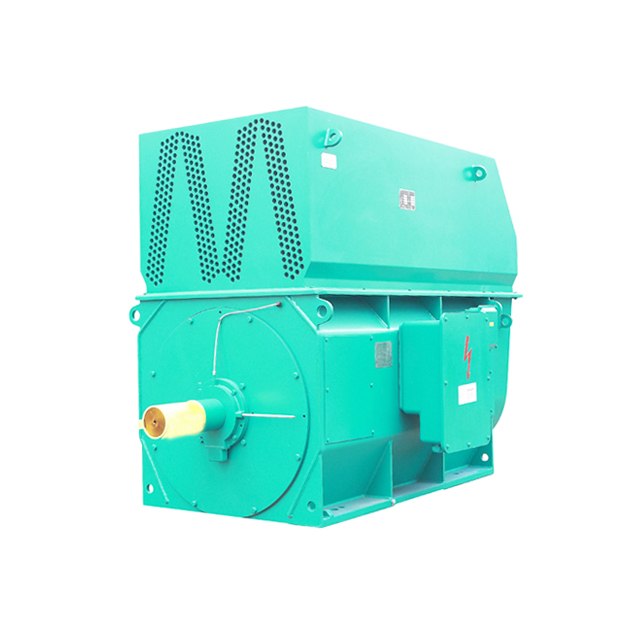

YKK: reserve the exchanger space and its airflow

The YKK page identifies a welded box-frame squirrel-cage machine with a removable enclosed air-to-air cooler on top. Its specification table lists IC611 or IC616 as options, not one interchangeable cooling code, and IP54 as the base enclosure with other protection available by order. The listed 160–12,000 kW and 3/6/10/11 kV family spans are selection limits, not a promise that the largest rating exists at every voltage, pole count and cooler design.

Confirm before ordering Give the ventilation path above the machine, cooler withdrawal space, inlet-air temperature and contamination, project voltage and start study, foundation/shaft centre height and bearing service access. Require the exact YKK cooling/protection code, heat rejection, cooler maintenance drawing, winding/bearing sensor schedule and routine-test plan.

View YKK air-to-air cooled high-voltage motor →

02 / RESOLVE CATALOGUE AMBIGUITIES

Treat old standard references and mixed supply labels as RFQ questions

Old edition printed on current pages

Both public product pages cite GB 755-2000 alongside IEC 60034-1 and JB/T 10315.2. The national standards platform now lists a later GB/T 755 edition. A buyer should ask which edition, test method and contractual acceptance limits govern the offered build instead of copying the page's historical reference into a specification or assuming an automatic update.

Frequency and start conditions need one signed schedule

The product tables show 50 Hz as rated frequency, while order notes say 50 or 60 Hz can be requested. They also show generic cold/hot start counts and timing without identifying the load inertia, grid voltage dip or exact motor. For either series, have the maker issue one project-specific voltage/frequency, starting-duty and thermal schedule.

The legal entity has independent local records

Jiangsu's published high-tech-enterprise list names Jiangsu Yinglong High Voltage Motor Manufacturing Co., Ltd. in Nantong. A 2026 provincial-party news report describes an expansion via a related Yiluomu factory and an in-progress coil line. That is useful manufacturing context, but an unfinished line or affiliate's later output is not evidence that the two Pinnxun catalogue motors were made at that newer site. Confirm the contracting and producing entity per order.

03 / ASK FOR THE ORDERED BUILD

A usable quote needs the load, cooler and inspection route

What should a process-plant buyer provide?

Provide driven-machine torque-speed curve and inertia; grid voltage/frequency and allowed dip; start method and starts per hour; steady/abnormal shaft direction; ambient temperature, altitude, dust and cooling-air path; mounting/coupling drawing, available headroom and service envelope; and required winding/bearing monitoring. Identify the exact fan, pump, compressor, mill or conveyor duty rather than only a kW target.

What should Pinnxun return?

Require a fully coded Y2 or YKK selection with compatible power, poles, voltage, IC/IP and direction; dimensional and cooler drawings; start and temperature calculations; bearing/insulation and sensor schedule; applicable current standard edition; and named factory plus inspection/acceptance plan. Treat optional 60 Hz, variable-speed duty, special corrosion protection or higher IP as engineered variants until documented for that exact build.

Published motor range

2 series

Company information

Company name
Jiangsu Yinglong High Voltage Motor Manufacturing Co., Ltd.
Chinese registered name
江苏应龙高压电机制造有限公司
Region
Jiangsu, China
Record updated
2026-10-08
