Moulded-case operators: KX-250, T4-T5, KXM-630
KX-250 operates moulded-case breakers below 250 A and was patented in 1999. The T4-T5 operator is described as compact, rated for up to 20,000 operations, with manual and electric operation, lockable manual mode and remote indication. KXM-630 serves moulded-case breakers above 630 A and adds stored energy.

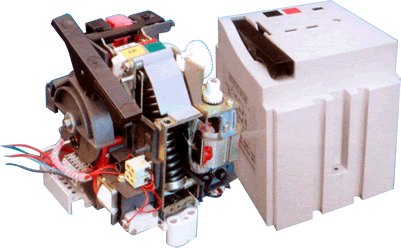

View KX-630 / KXM-630 circuit-breaker operating mechanism →
Air-circuit-breaker motors with stated gear ratios
The 3WN breaker motor drives the spring-charging mechanism through a four-stage spur gearbox at 350:1. The M-PACT breaker motor has a 317:1 reduction gearbox. The DW17 motor, for the ME breaker the page says was licensed from a German maker, uses a two-stage spur gearbox at 8.74:1. A replacement with a different ratio changes charging time and torque at the cam.
DW15 closing motors by part number and breaker size
For DW15 air breakers of 1,000 to 1,600 A the page lists HDZ-12307, DNZ-20307 and HDZ-32307; for 2,500 to 4,000 A it lists HDZ-13110, HDZ-23110 and HDZ-33110. Match the part number on the existing motor, not just the breaker series.
DW45, DW450, DW50, E, F, X1, LS and OMEM
DW45 and its successor DW450 (patent 2004) and the DW50 operator (co-designed breaker with the Shanghai Electrical Apparatus Research Institute) are described as core products. The E-series operator is described as tested and sold into Europe; X1 is a compact motor for the X1 breaker. LS and OMEM are permanent-magnet DC motors: LS uses one gear stage and a cam for a TOTAL ASSY breaker, OMEM has a clutch for manual/electric changeover on an OMEM transfer switch.

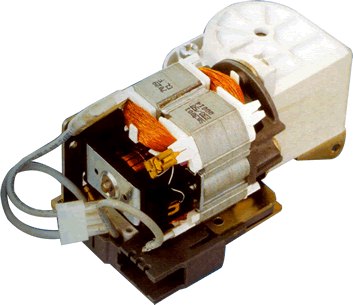

View X1 motor operating mechanism →
Medium and high voltage: VD4, 3AH55, CT19, LKE and gearboxes
The NEW-VD4 motor uses plastic gears and a planetary reduction and is stated to meet RoHS. HDZ-220.10B is the motor for 3AH55 vacuum breakers, with separable manual and electric operation. CT19 and LKE are permanent-magnet DC motors with four gear stages for spring-operated vacuum-breaker mechanisms. Separate 3AH55, 3AH23 and SION gearboxes serve vacuum-breaker spring-charging mechanisms. Kaixuan does not state an OEM relationship; treat the breaker names as compatibility targets to verify.
