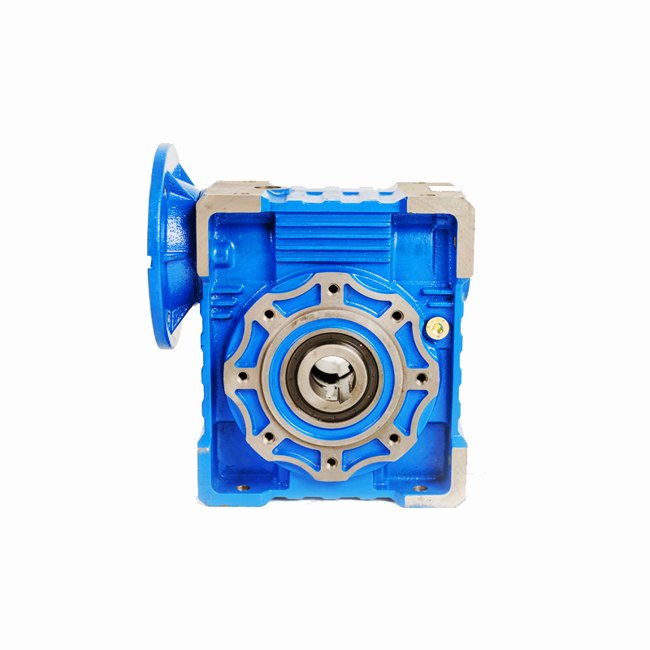

RV110 worm reducer for a right-angle output
Kejin's RV110 cast-iron page presents a worm-gear route with hollow or solid output shafts, mounting feet, flanges and torque-arm options. It lists IEC, NEMA, shaft and servo-flange input arrangements. The broad efficiency, ratio and torque ranges on that page describe the RV family, not one RV110 unit; do not select a 3000 N·m duty from the family maximum without the exact ratio and service factor. The page's browser title says RV130 while its breadcrumb and heading say RV110, which makes the signed dimensional drawing especially important.
Confirm before ordering Send required output torque and speed, direction of rotation, shock load, starts per hour, mounting position, hollow/solid shaft drawing and preferred motor interface. Ask for the RV110 order code, ratio, thermal rating, backdriving behaviour, lubricant and outline drawing for that configuration.
View RV110 cast-iron worm gearbox →
