Xinxiang Pengjin's catalogue serves two buyer jobs that should not be merged into one motor choice. A vibrating screen needs a matched excitation source and mounting structure; a crane or industrial speed-control axis needs an inverter-fed drive selected for its load cycle and cooling. The company's published PJFL and PJMV/BPMV vibration motors, YVP variable-frequency motor and YZP crane-range descriptions give useful starting points, but each requires a different drawing and duty check.

LocationHenan, China
Published catalogue4 product series
Motor families1 represented

PENGJIN · TWO DIFFERENT DRIVE JOBS

Pengjin Special Motor: separate screen excitation from crane drive duty

Explore the published range ↓

01 / FOR SIEVES AND FEEDERS

Choose where the force enters the machine

For screening equipment the decisive distinction is not just electrical power. It is where the vibration motor attaches, the force path through the structure and the eccentric setting.

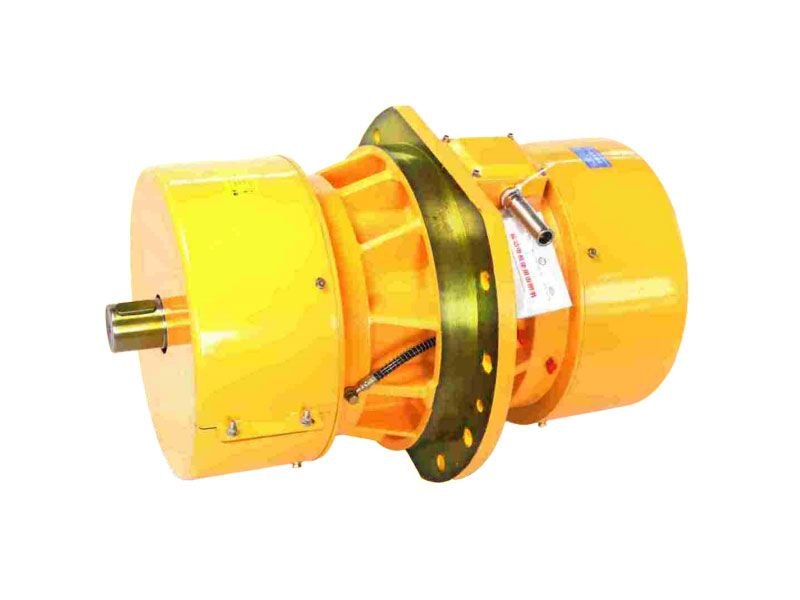

Large screen with a side-plate mount: PJFL

Pengjin describes PJFL as a side-plate-mounted three-phase vibration motor, removing the conventional baseplate arrangement. Its catalogue links the layout to large screens and says eccentric-block angle adjusts excitation force. Published standard conditions are 380 V/50 Hz, IP54 and S1; these are family conditions, not a force rating for a selected unit.

Confirm before ordering Send screen mass and geometry, mounting-hole drawing, side-plate thickness/stiffness, required force and frequency, number of motors and intended direction of motion. Request the PJFL size-specific force and fixing drawing.

View PJFL side-plate vibration motor →

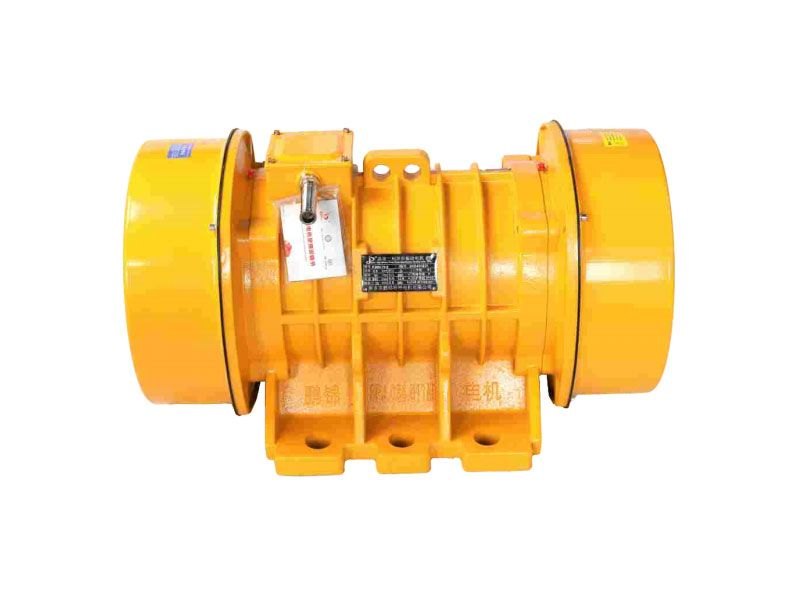

Adjustable vibration source: PJMV/BPMV

The official PJMV/BPMV page covers vibration-source use on screens, feeders, conveyors and compaction equipment. It describes force adjustment through eccentric blocks and lists 380 V/50 Hz, IP55 and IC410 for the stated conditions. It explicitly positions the enclosed unit for dusty locations without explosion-protection requirements.

Confirm before ordering State the load, acceleration target, force direction, eccentric adjustment range, support structure and dust classification. Do not specify this non-explosion-protected range for a hazardous atmosphere.

View PJMV / BPMV variable-frequency vibration motor →

02 / FOR SPEED-CONTROLLED DRIVES

Separate ordinary speed variation from repeated hoisting cycles

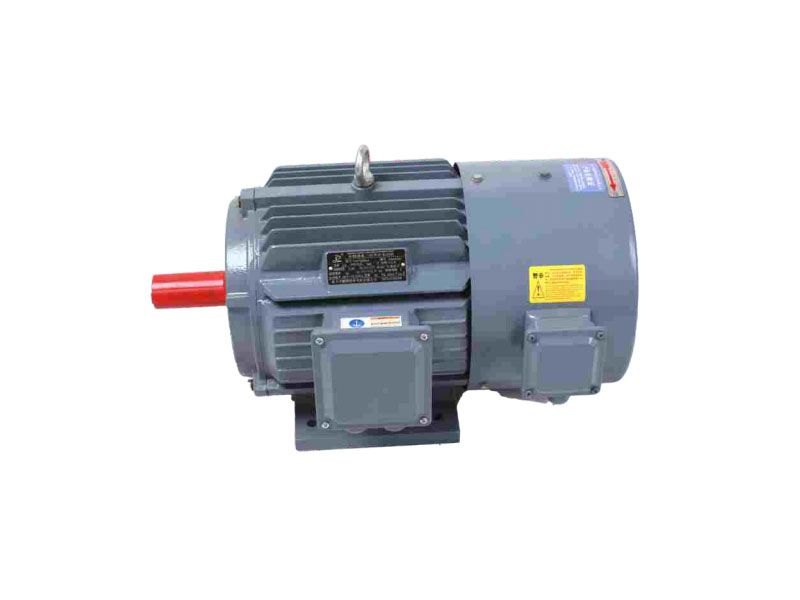

YVP for a general inverter-fed axis

Pengjin's YVP description calls for a separately powered rear cooling fan, IC416 cooling and S1 duty. It describes 5–50 Hz constant-torque and 50–100 Hz constant-power regions under standard conditions. A quoted motor still needs its own continuous torque-versus-speed data, inverter settings and fan supply; the website's frequency span alone does not prove a particular low-speed load is safe.

Confirm before ordering Provide operating speed/torque points, hours at low speed, drive output, fan power, enclosure and ambient; identify whether the offered assembly actually includes a brake.

View YVP / YVPEJ variable-frequency motor →

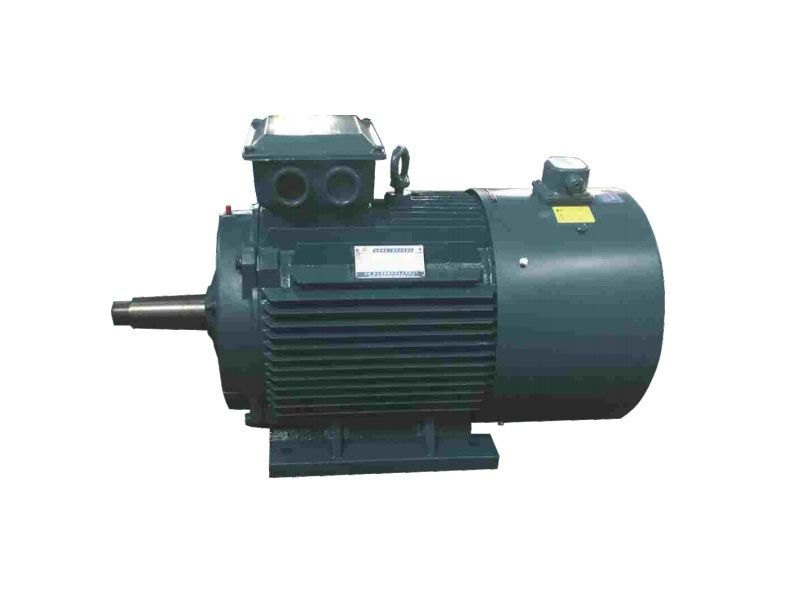

YZP/YZPF for crane and metallurgical machinery

The manufacturer's product page describes frequent starting, braking and reversal, plus short or intermittent duty. It distinguishes YZP as IC411 with S3 40% reference duty from a forced-cooled YZPF description with IC416 and S1. However, the page heading writes YZFP while the body writes YZPF; the series suffix must be resolved on the nameplate and current drawing before ordering.

Confirm before ordering Send hoist/travel cycle, starts per hour, overload and braking events, inverter model, feedback/brake need, cooling path and exact existing YZ/YZR frame dimensions. Request the duty-rated torque curve and corrected model code.

View YZP / YZFP crane and metallurgy motor →

03 / MAKE A COMPARABLE QUOTE

Match the test record to the part that will arrive

Pengjin's company page identifies Xinxiang Pengjin Special Motor Co., Ltd. in the Guandi industrial area and describes winding, insulation treatment, rotor balancing, assembly and outgoing motor testing. Those are manufacturer-published process claims, not an audit of a particular order. Its historic third-party listing corroborates the company name and special-motor product scope but does not certify present capacity or quality.

Screen and feeder purchase

Submit equipment drawing, total vibrating mass, process throughput, desired motion, mounting interface and excitation-force target. Ask for the exact motor force curve, eccentric-setting method, fastener requirements and synchronized-motor installation plan.

Crane or general inverter purchase

Submit the load/speed/time diagram, supply and inverter, braking and reversing schedule, required protection, ambient and existing frame drawing. Require a quoted full model code, cooling arrangement, feedback/brake options and model-specific test record.

Acceptance and boundary

Request winding resistance, insulation and running-test records for the exact supplied unit, plus nameplate, outline drawing and operating instructions. For hazardous locations, obtain a separately verified applicable protection approval; a statement that another series tolerates ordinary dust is not one.
