01 / SELECT THE REAL ASSEMBLY
Do not treat mounting and braking as minor options

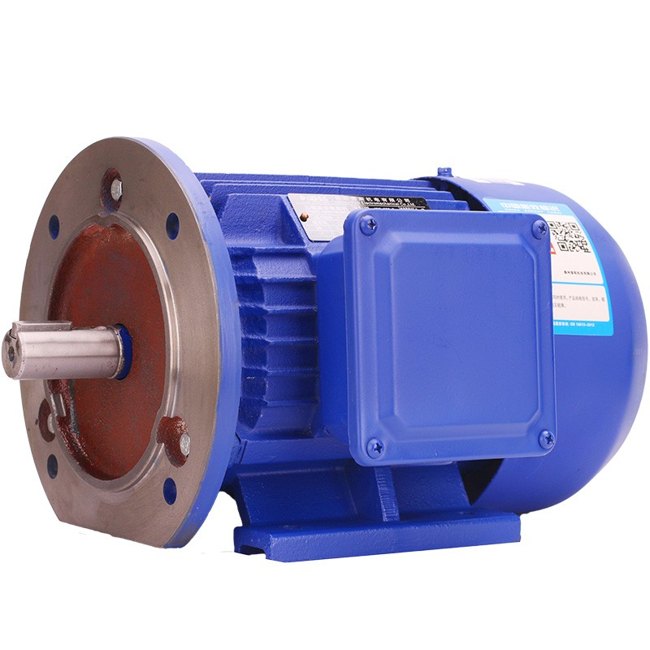

YE3 horizontal or vertical: prove the orientation and flange
The manufacturer's YE3 sheet illustrates horizontal and vertical three-phase arrangements and tabulates several frame, pole and output options. Existing reviewed image tables show 0.55–7.5 kW across frames 80–160M, with speed groups near 2800, 1400 and 940 r/min, IP54 and class F. These are row-dependent values, not a single motor. One table cell labels an apparent 0.75 entry in W while neighbouring entries use kW; do not order from that ambiguous cell alone.
Confirm before ordering Send supply, driven-load torque and starts, shaft and mounting drawing, horizontal/vertical orientation and enclosure environment. Request the exact row, corrected rated-unit confirmation, matching flange/shaft drawing and measured efficiency/temperature-rise results.
View YE3 horizontal and vertical three-phase motor →
YE3EJ brake: verify which brake table applies
The YE3EJ product images include a motor mounting table for frames 80M–250M but the brake data is headed YEJ2-80 through YEJ2-225. The brake supply column includes 99 V and 170 V entries by size; its excitation watts are brake-coil consumption, not shaft output. Do not combine the motor drawing and a YEJ2 brake row unless the manufacturer confirms the assembled ordering code.
Confirm before ordering State driven inertia, stop frequency, holding load, manual release and fail-safe need; ask for the exact motor-plus-brake assembly drawing, rated braking torque, gap, release/engagement time, brake-coil supply/rectifier and thermal test for the quoted combination.
View YE3EJ electromagnetic brake motor →

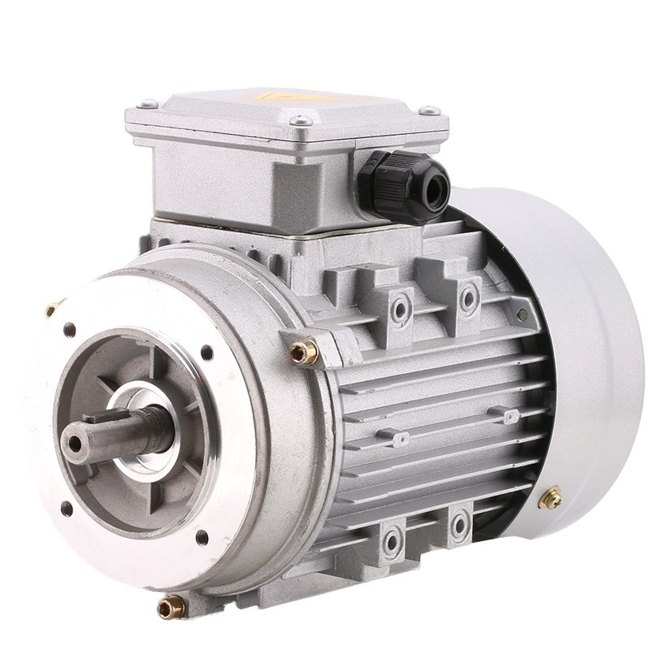

YS B14: a mounting label is not a complete rating
The official site separately advertises a YS aluminium-housing B14-flange motor, while its wider catalogue includes gearboxes and pumps. The inspected public listing does not provide a complete readable exact-code matrix for the B14 item. A replacement buyer should check flange pilot, bolt circle and shaft before substituting it for another small-frame machine.
Confirm before ordering Provide the incumbent nameplate, pilot/bolt/shaft dimensions, supply and start method, load and enclosure. Ask for the selected YS B14 code's drawing, terminal and grounding details, rating and safety-test report, plus clarification of any reducer or pump supplied with it.
View YS aluminium-housing B14 motor →
