01 / START WITH SUPPLY AND SPEED CONTROL
A high-voltage VFD project and a low-voltage replacement need different evidence

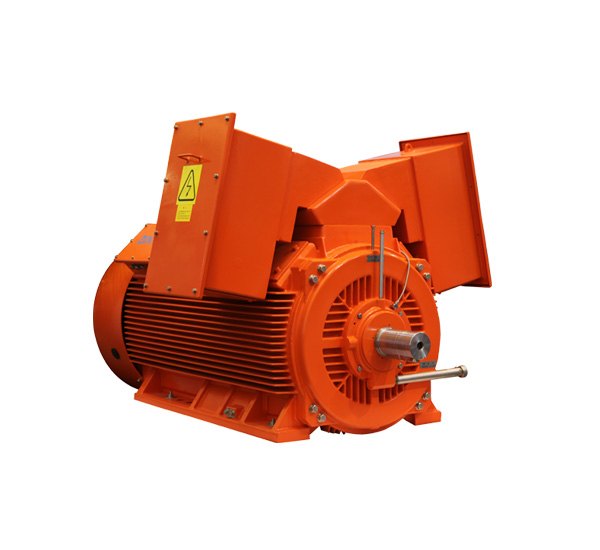

Y2VF for a variable-speed high-voltage machine
The manufacturer's Y2VF page identifies 3, 6 and 10 kV options, IC416 forced-air cooling and a separate axial fan. It describes constant-torque operation over 5–50 Hz and constant-power operation over 50–100 Hz at family level. These ranges do not confirm that every frame, load or site drive can run continuously at every point. For a large fan, pump or conveyor, check the torque-speed curve, drive output and cooling supply together, especially at low speed when a shaft fan would be inadequate.
Confirm before ordering Send the existing motor's rated voltage, kW, poles, mounting, shaft/load inertia, driven-machine torque curve, operating frequency profile, inverter output waveform, cable length and site altitude. Request the exact Y2VF frame's permitted speed/torque envelope, independent-fan supply, bearing/insulation measures and dimension drawing.
View Y2VF high-voltage variable-frequency motor →

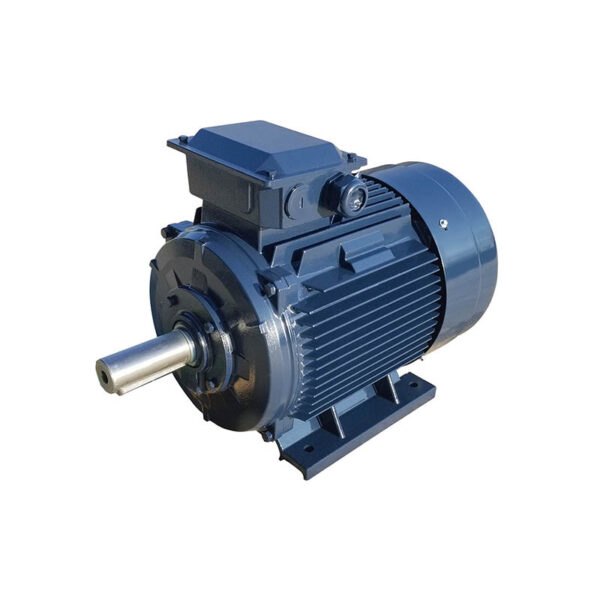

YE2/YE3 for an ordinary low-voltage line-fed replacement
The official combined YE2/YE3 page describes a totally enclosed, fan-cooled three-phase induction motor with selectable B3, B5, B35, V1, B14 or B34 mounting. That family-level list is useful for narrowing a mechanical replacement, but the visible specifications identify YE2 and IE2 rather than a separate YE3 performance table. A buyer replacing a regulated high-efficiency motor needs the offered model's own efficiency data instead of assuming the heading establishes it.
Confirm before ordering Provide the present nameplate, supply and starter, shaft height, flange/foot dimensions, load cycle and ambient. Ask for a model-specific 50 or 60 Hz performance sheet, mounting drawing and measured efficiency at the required duty.
View YE2/YE3 high-efficiency induction motor →

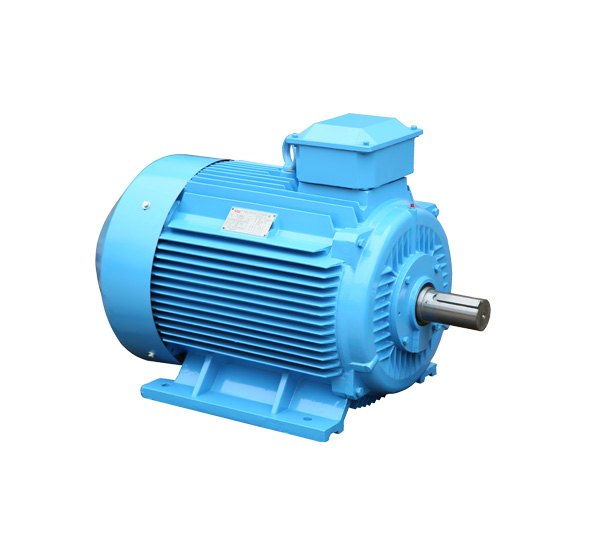

YE4 or YE5 when efficiency is a purchase requirement
Shuanglong lists separate YE4 and YE5 catalogue entries, but both pages currently repeat the same 'Model: YE3 80~355' heading detail and IE2 efficiency text. The labels alone therefore cannot support a model-specific IE4/IE5 claim or an energy-saving/payback calculation. Compare a dated tested-efficiency sheet for the exact pole count and rating against your load hours and tariff before upgrading.
Confirm before ordering State the target efficiency standard, power/pole count, annual hours and measured load profile. Request the precise YE4 or YE5 model code, rated voltage, certified efficiency values, test method, current certificate scope and compatible frame drawing. Do not buy on a family name or an unsupported payback estimate.
View YE4 high-efficiency induction motor →
