Zhejiang Shuda Motor in Wenling publishes several three-phase motor branches that solve different operating problems: YVF2 for variable-frequency speed control, YEJ2 for electromagnetic stopping, YB2 for potentially explosive atmospheres, and MS aluminium-frame motors with pump-oriented construction. A buyer cannot substitute one for another using kW alone. The useful first step is to specify the driven machine, control method, stopping behaviour and installation environment; only then can the exact frame and test documentation be compared.

LocationZhejiang, China
Published catalogue4 product series
Motor families3 represented

ZHEJIANG SHUDA · FOUR DIFFERENT DRIVE TASKS

Zhejiang Shuda: match motor duty to control, braking and site risk

Explore the published range ↓

01 / START WITH THE MACHINE

Four catalogue branches, four different purchasing decisions

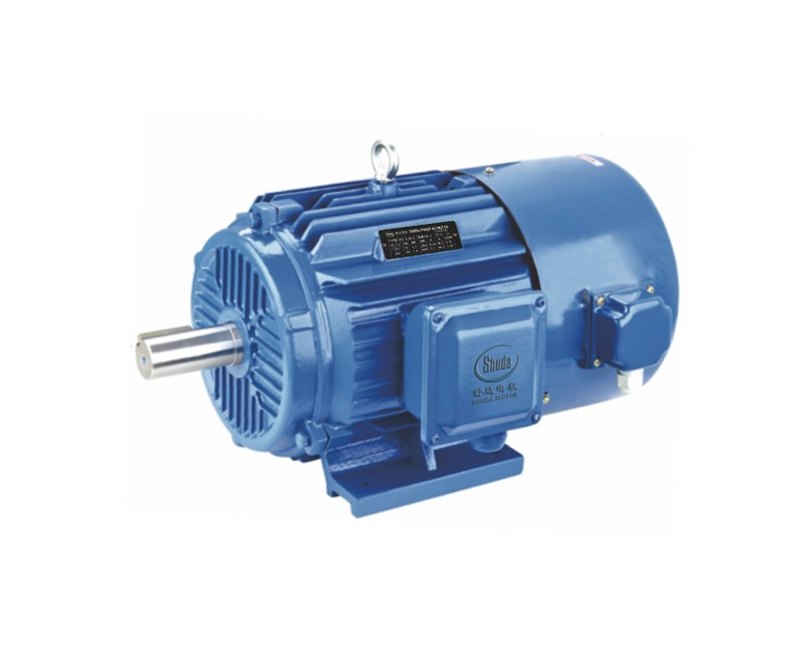

YVF2 — speed set by an inverter

Shuda's YVF2 page gives an 80–315 mm frame-height and 0.55–200 kW family envelope, a 50 Hz base frequency, a stated 3(5)–100 Hz frequency span and IC416 independent-fan cooling. These are family limits, not a promise that every frame delivers rated torque across that entire span. The independent fan matters for low-speed operation where shaft-mounted ventilation would fall away.

Confirm before ordering Send the load-torque versus speed curve, lowest continuous speed, inverter output and switching frequency, cable length, start/stop rate and ambient. Request the exact frame's torque/temperature limits and independent-fan supply before choosing a gearbox or drive setting.

View YVF2 variable-frequency three-phase induction motor →

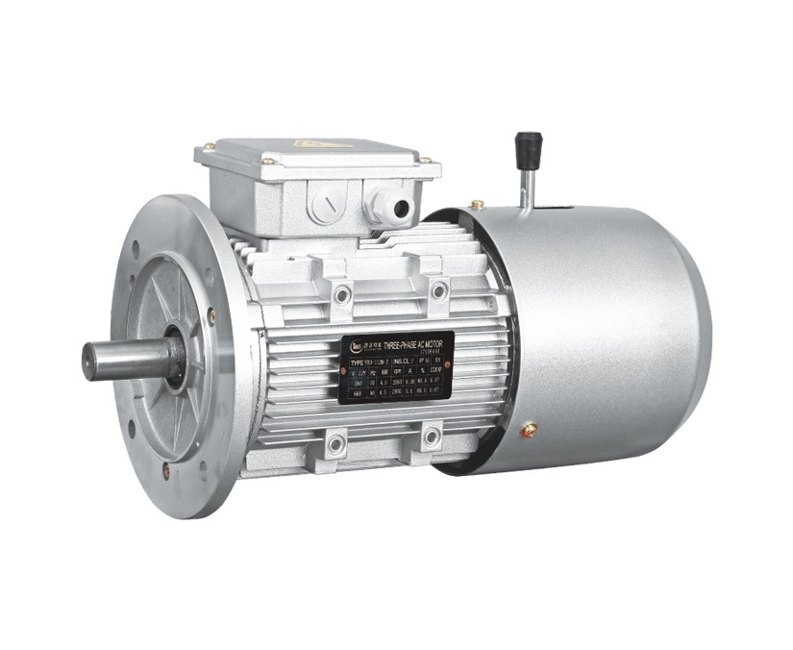

YEJ2 — a defined stopping or holding task

The YEJ2 brake-motor page lists an 80–225 mm frame range, 0.55–45 kW family output, F insulation and IP54/IP55 alternatives. It describes a half-wave rectifier and quick braking, but does not give a model-by-model brake torque, response time or vertical-load approval. A brake-equipped motor should be selected as an assembly, not treated as a standard induction motor with an unspecified accessory.

Confirm before ordering State moving inertia, required stop time, stops per hour, orientation, power-loss behaviour and any suspended load. Require the specific brake torque, coil/rectifier voltage, release time, manual-release provision and duty rating; perform a separate safety assessment if people or a suspended load are at risk.

View YEJ2 electromagnetic brake motor →

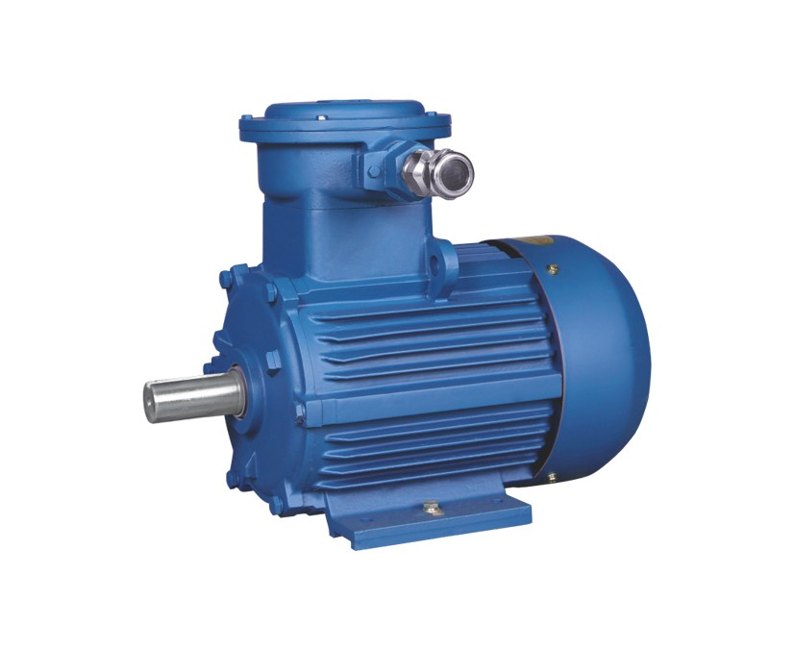

YB2 — atmosphere classification before a quote

The maker's YB2 page gives a 63–280 mm frame and 0.12–90 kW family span, IP55 and IC411. It discusses mining Group I and industrial Group II uses, but a broad catalogue statement cannot establish the explosion-protection marking, temperature class or current certification of a proposed serial-numbered motor. Site classification and the exact certified variant decide suitability.

Confirm before ordering Provide the hazardous-area classification, gas or dust group, temperature class, ambient range, installation country, cable-entry method and inverter use. Request the current certificate, exact model/marking schedule and installation instructions; do not infer mine or petrochemical suitability from the YB2 series name alone.

View YB2 flameproof three-phase induction motor →

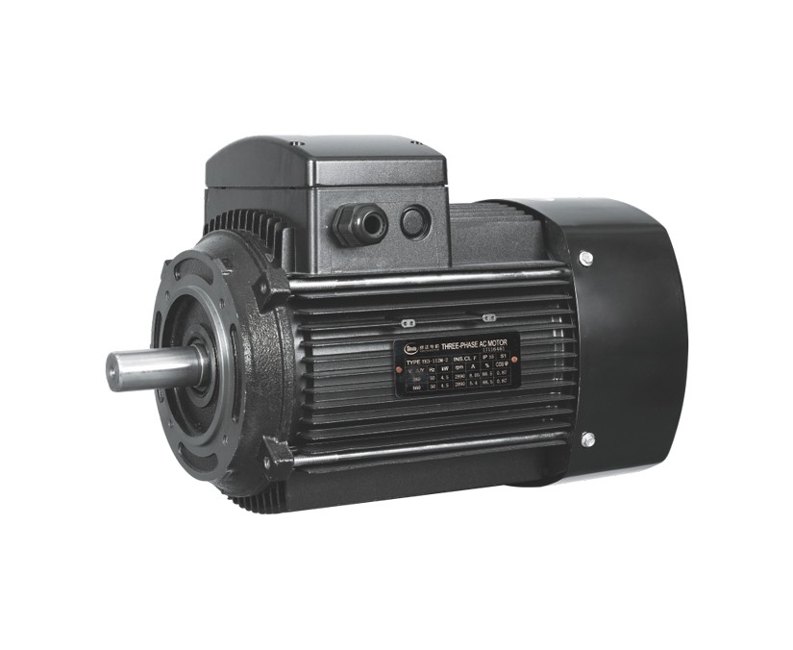

MS — pump-oriented mechanical fit

Shuda describes the MS aluminium-frame family as developed for pump matching, with cast-iron front flange and rear end cover. Its public page lists 380/400/415 V and 50/60 Hz alternatives, continuous S1 duty, F insulation, and IP54/IP55 casing options with an IP55 terminal box. The page's IE2/IE3 wording is a family-level claim; it is not an efficiency certificate for any selected frame or destination market.

Confirm before ordering Send pump curve and starting method, coupling/shaft and flange drawing, liquid-system duty, supply and frequency. Ask for the exact model's dimensional drawing, tested efficiency at the ordered rating and the applicable casing/terminal-box IP combination.

View MS high-efficiency aluminium-housing motor →

02 / MAKE OFFERS COMPARABLE

Ask for one model-specific package, not a mixed series brochure

The official product pages provide useful family boundaries, but several choices remain open at model level. An RFQ should make the missing conditions explicit so suppliers quote the same duty.

Nameplate and drive interface

Include full voltage/frequency/phase, required output and speed, service factor or thermal margin, drive waveform, start frequency and protection method. For YVF2, include the inverter and independent-fan supply; for YEJ2, include brake control wiring and rectifier details.

Mechanical and site interface

Attach the old or target motor's frame, foot/flange, shaft and key dimensions, driven-load curve, duty cycle, ambient, altitude, moisture and dust conditions. For MS pump replacement, verify flange and coupling alignment; for YB2, include formal area classification before any substitution.

Evidence at acceptance

Request a drawing, full model code, nameplate, model-specific test report and applicable certificate schedule. Test temperature rise and loaded current under the intended control method; for brakes, verify stopping and holding against the actual load. Avoid applying a family maximum power or marketing efficiency grade to a different frame.

03 / WHAT THE PUBLIC RECORD SUPPORTS

Company identity is corroborated; model claims still need exact documents

The manufacturer and catalogue are identifiable

The company site identifies 浙江舒达电机有限公司 / Zhejiang Shuda Motor in Daxi, Wenling, and presents the four separate product pages used here. An independent 2023 PTC Asia exhibitor list records the same Chinese company and a booth allocation. That historical listing supports identity and industry participation, not the present status of a product approval.

Read broad claims narrowly

The corporate page mentions quality and reputation honours without giving a model-level certificate schedule. The MS page uses IE2/IE3 language and the YB2 page cites explosion-protection standards and possible mining or industrial applications; none of those page-level statements by itself proves a current certificate for the exact order code. The buyer should obtain the applicable report and marking from the supplier.

Do not transfer conditions between families

IC416 forced cooling is stated for YVF2, while YB2 lists IC411. YEJ2's IP54/IP55 options are not a blanket IP rating for every Shuda motor. The MS page lists multiple supplies and protection alternatives. Confirm the chosen combination on the quotation and drawing rather than assembling a specification from separate catalogue branches.

Published motor range

4 series

Company information

Company name
Zhejiang Shuda Electric Motor Co., Ltd.
Chinese registered name
浙江舒达电机有限公司
Region
Zhejiang, China
Record updated
2026-10-07
