MOTOR MANUFACTURER · Jiangsu, CHINA

Suda Motor

Wuxi Suda publishes separate ZDS and SVM horizontal vibration-motor tables. Choose by the host machine's required vibration frequency, excitation force, motor mass and bolt pattern; shaft kilowatts alone do not size a feeder or screen. Its vertical and explosion-protected ranges are separate products.

LocationJiangsu, China
Published catalogue2 product series
Motor families1 represented

SUDA · VIBRATORY MACHINE DRIVES

Suda vibration motors: ZDS or SVM by force, speed and mounting

Explore the published range ↓

01 / MACHINE MOTION

ZDS and SVM sit at different speed and force points

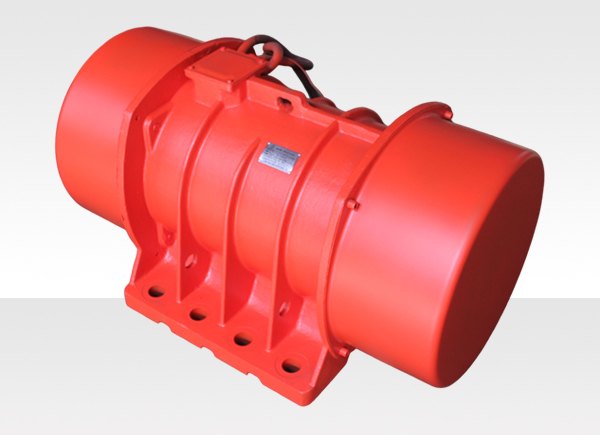

ZDS two-pole: faster excitation, smaller listed forces

Suda's two-pole ZDS table gives a 2860 r/min reference and eight model rows, from ZDS-0.6-2 at 650 N / 0.05 kW to ZDS-50-2 at 50,000 N / 3.7 kW. These are different model rows, not simultaneous settings of one motor. Higher rotational frequency may suit a particular screening or material-flow duty only if the machine design, stroke and material behavior agree.

Confirm before ordering Provide existing vibrator code, machine mass, operating speed, desired stroke, material throughput and any measured vibration. Request the exact ZDS row's rated exciting force, mass, current, weight adjustment method and mounting drawing; verify the proposed setting on the installed machine.

View ZDS horizontal vibration motor →

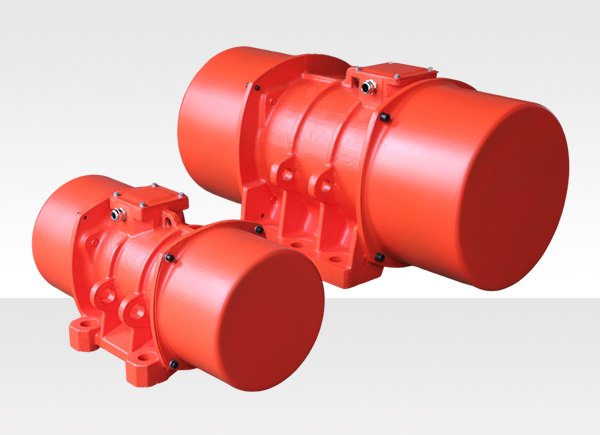

SVM four-pole: lower speed with a wider force range

The separate four-pole SVM table is headed 1450 r/min. It runs from SVM-3-4 at 3,000 N / 0.12 kW / 21 kg to SVM-200-4 at 200,000 N / 12 kW / 650 kg. The larger units introduce substantial dead load and mounting reactions. A 200 kN force headline is not a substitute for checking the steelwork, springs, bearings and real operating amplitude.

Confirm before ordering Send the screen or feeder drawing, support and spring layout, two-motor or single-motor configuration, desired operating frequency and force direction. Ask for the selected SVM row's force setting, rated current, operating mass, centre of gravity, bolt pattern and installation constraints.

View SVM horizontal vibration motor →

02 / FROM MOTOR TO MACHINE

Excitation force is useful only when the structure can carry it

Check motor mass and bolted interface together

The manufacturer's ZDS and SVM technical pages each include a separate dimensional table rather than one common footprint. Their listed masses change sharply across sizes. For a replacement, compare bolt-hole spacing, mounting plane, available height, cable exit and structural reinforcement against the exact old unit, not merely the family prefix or nominal force.

The whole vibrator arrangement determines motion

A feeder's conveying direction and a screen's throw depend on the number and orientation of exciters, eccentric-weight settings, support springs and loaded machine mass. If the design uses paired motors, specify both positions and the intended synchronized direction. Ask the equipment designer to approve the selected force and frequency for the structure; a motor supplier's table alone does not prove the operating stroke.

Keep hazardous locations in their own product family

Suda's site separately lists ZDSB and ZDSB-L explosion-protected vibration motors. Neither the ordinary ZDS nor SVM row should be called explosion-proof simply because the machine is used in mining or chemical processing. Provide the area classification and require the exact protective designation, document scope and matching installation method if a hazardous area applies.

03 / RFQ AND TEST

Compare proposals at the same force, frequency and loaded state

What data should accompany the RFQ?

Send the existing vibrator plate, equipment general arrangement, total vibrating and material load, target throughput, material characteristics, duty hours, mains voltage/frequency, ambient, cleaning exposure and old failure mode. Include machine photos of the mounting pads and cable routing.

What does the selected model actually deliver?

Request an exact model code with pole count, rated speed, exciting-force setting range, rated current, mass, terminal diagram and full dimensioned base. A generic series maximum is not the offered model's nameplate. For a retrofit, compare the proposed unit to the current pair or single motor at the same force setting.

How will the assembled machine be accepted?

Agree a loaded trial covering stroke/amplitude, movement direction, throughput, structural vibration, bearing temperature and fastening integrity. Measure after the machine reaches operating condition, not only while the motor runs freely on a bench.

04 / BOUNDED EVIDENCE

The manufacturer and row-level tables are documented; machine performance is not

Company and catalogue

The official site identifies 无锡市速达振动电机有限公司 in Wuxi and publishes separate ZDS and SVM technical tables. Independent trade-show organizer listings name the same enterprise and vibration-motor focus; they are identity evidence, not a plant inspection or model certificate.

Read the table by row

The published ZDS-0.6-2 and SVM-3-4 examples have different force, power, speed and mass. This page uses them only as named examples and does not infer that a motor can deliver the full series force at every voltage or in any machine. The catalogue's force unit is newtons; shaft output remains a separate kW field.

Published motor range

2 series

Company information

Company name
Wuxi Suda Vibration Motor Co., Ltd.
Chinese registered name
无锡市速达振动电机有限公司
Region
Jiangsu, China
Record updated
2026-10-07
