01 / START WITH THE SHAFT BEHAVIOUR
Continuous rotation, repeated indexing and a right-angle output are separate choices

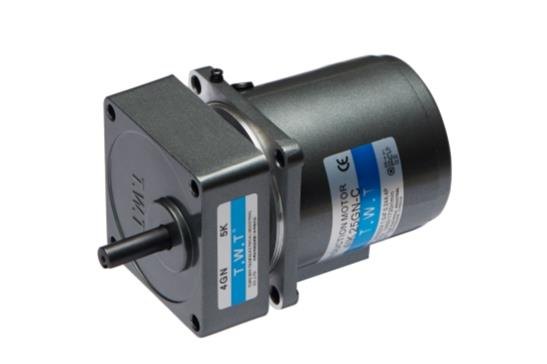

Miniature AC motor for a continuously rotating shaft
T.W.T. describes its induction-motor family as continuous duty, while the reversible family has a 30-minute rating in the reviewed catalogue. The manufacturer's AC family also lists speed-control and brake variants; those features must be selected as an exact motor/controller combination. A 200–440 V three-phase family statement is not a universal nameplate or an approval to connect any unit to any supply in that span.
Confirm before ordering Give the machine's input supply, required output rpm and torque throughout the cycle, start frequency, ambient, mounting space and intended gear ratio. Ask for the exact motor/gearhead code, nameplate, duty rating, permitted controller and dimension drawing.
View AC miniature standard geared motor →

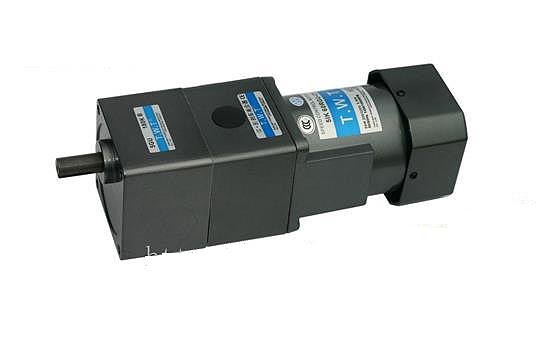

C.B clutch-brake assembly for frequent one-direction stops
The C.B catalogue combines a rotating induction motor, clutch-brake and gearhead so the output can start and stop without reversing the motor each time. Its reviewed illustration lists 40, 60 and 90 W motor options, separate 24 V DC clutch/brake supply, and AC motor-supply alternatives. Those are component choices, not one configuration with interchangeable voltages or a published positioning tolerance.
Confirm before ordering State the load inertia at the output, starts per minute, dwell, stop accuracy, required holding torque, motor AC supply, 24 V DC control supply and fail-safe behaviour. Request the full assembly code, control timing, thermal/cycle limits and stopping test under the real load.
View C.B clutch-brake geared motor →

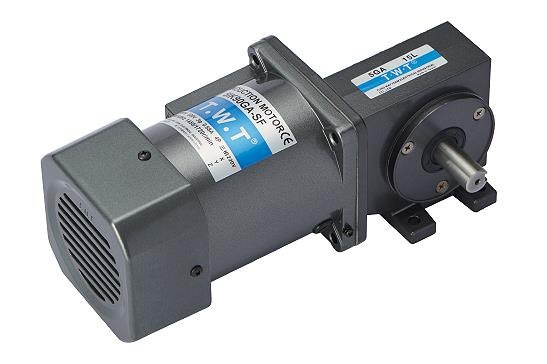

GA worm reducer where the output must turn 90 degrees
The GA description places the output shaft perpendicular to the motor to shorten one installation dimension and lists IK, RK, US and DC motor combinations. It advertises a degree of stopped holding force but gives no numeric holding-torque limit or safety-brake rating. A worm stage alone must not be treated as certified load restraint.
Confirm before ordering Provide a top and side-view envelope, output-shaft diameter and orientation, radial/axial loading, speed, continuous and peak torque, ratio, mounting pattern and backdrive or suspended-load requirements. Request a GA drawing and reducer rating for the selected input motor; specify an independent brake where load safety requires it.
View GA right-angle worm geared motor assembly →
