A Z4 replacement can fail on mounting or field supply; a flying shear can fail on acceleration duty. Tianjin Zhongxing publishes separate Z4 and ZFQZ sheets. Start with the machine cycle and exact rating row, not the series badge.

LocationTianjin, China
Published catalogue2 product series
Motor families1 represented

TIANJIN · INDUSTRIAL DC DRIVES

Tianjin Zhongxing: DC motor replacement versus rolling-mill flying shear

Explore the published range ↓

01 / TWO BUYING SITUATIONS

A mechanical replacement and a cyclic shear need different evidence

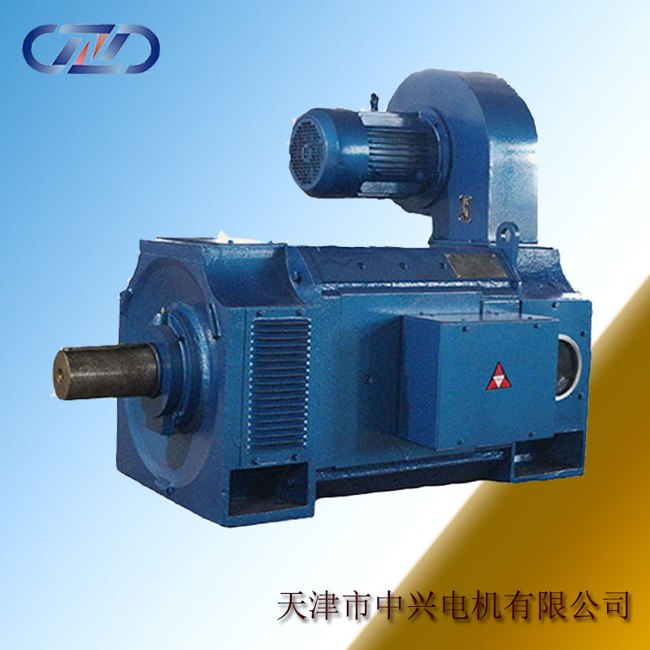

Z4: fit the existing machine before comparing output

The maker's Z4 drawing separates smaller Z4-100–160 constructions from Z4-180–450. Its B3 table gives the Z4-100-1 a 100 mm shaft-centre height, 24 mm shaft diameter and 160 × 318 mm mounting-hole dimensions. The neighbouring Z4-100-2 differs in length, so an identical frame prefix does not prove drop-in fit. A dimensional drawing is not an armature or field rating sheet.

Confirm before ordering Send the old nameplate and drawing: shaft diameter and extension, foot-hole pattern, centre height, available overall length, coupling, armature/field supplies, base and maximum speeds, duty and blower arrangement. Ask for an overlay drawing and exact replacement order code.

View Z4 DC motor →

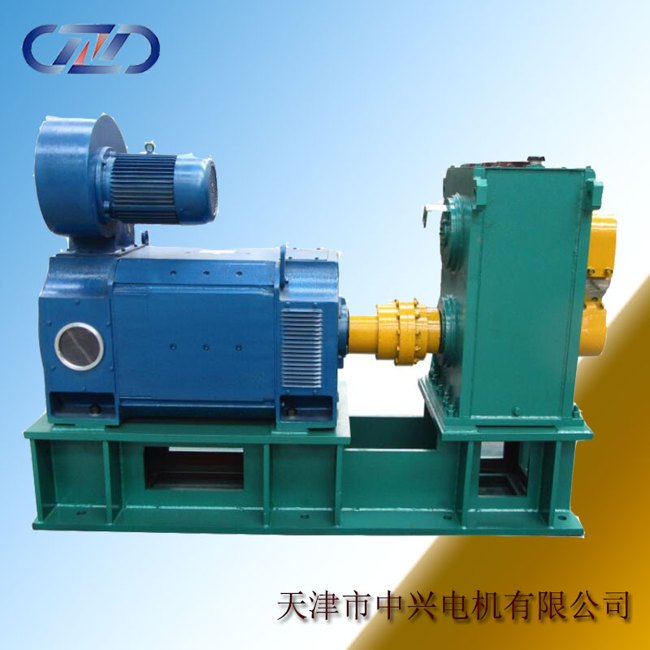

ZFQZ: quote against the flying-shear cycle

The manufacturer's ZFQZ rating table distinguishes a ZFQZ-450-42 row of 600 kW, 725 V and 600 rpm from a ZFQZ-450-32 row of 500 kW, 660 V and 500 rpm. Other rows can repeat a model label with different winding or speed data. These examples cannot define the output of an unspecified ZFQZ or establish a shear's acceleration capability from nominal kW alone.

Confirm before ordering Provide strip speed, cut length, drum inertia, acceleration/deceleration and braking timeline, cuts per minute, armature converter, field supply, cooling, ambient and allowable speed error. Require the complete offered rating row and a torque-speed versus duty-cycle check.

View ZFQZ DC motor →

02 / ELECTRICAL INTEGRATION

Motor output, armature voltage and excitation are separate commitments

Match the converter and field circuit

The ZFQZ sheet lists excitation separately from rated shaft output. Confirm rated and transient armature current, field voltage/current, field-weakening range, commutation limits and overspeed protection for the exact winding. A 725 V armature example does not authorize direct connection to a different DC bus, and it says nothing about the field circuit of another row.

Cooling and stopping belong to the full drive

For a shear, low-speed repeated starts and electrical braking can dominate thermal load. Ask whether ventilation is shaft-driven or independent for the offered motor, who supplies its blower, and how the converter, braking path and mechanical brake divide stopping duty. For a Z4 retrofit, verify the plant's existing airflow and enclosure before reusing the old drive settings.

03 / PROCUREMENT CHECKLIST

A useful offer must be testable on the buyer's machine

What documents should accompany the quotation?

Request the complete motor designation and winding row, outline and foundation drawing, shaft and coupling tolerances, armature/field terminal diagram, ventilation and enclosure, duty and overload curve, bearing and brush service plan, accessories, spares and the factory test schedule. Identify which values are guaranteed and which are indicative catalogue examples.

How should acceptance be divided?

Use serial-numbered electrical and mechanical factory tests for the motor, then a separate site test of converter tuning, cooling, vibration and loaded process performance. A flying shear needs actual cut accuracy and thermal behaviour over its production cycle; a Z4 retrofit needs the agreed fit, polarity, direction and base/maximum-speed checks.

04 / WHAT THE PUBLISHED SHEETS PROVE

Catalogue examples identify questions; they do not replace a model-specific drawing

The manufacturer's material is specific but not a complete purchase order

Its Z4 page supplies a B3 mounting table, and its ZFQZ page supplies distinct electrical rating rows and ordering notes. The corporate introduction identifies DC and AC variable-frequency motor manufacturing, but general claims about certificates or testing are not evidence that a particular motor and destination-market configuration has current approval.

Keep legacy catalogue uncertainty visible in the RFQ

The public Z4 entry lacks a one-to-one mapping from the illustrated mounting row to a complete electrical and blower package. ZFQZ repeats some model labels across rows. The buyer should request the current issue of the exact drawing, winding data and test plan before comparing bids; this profile does not construct missing pairings.
