Zhengzhou Xinhang publishes two materially different hazardous-area motor programmes. YBX3 is a flameproof three-phase induction drive for a connected machine; EVMD carries eccentric weights to excite a feeder or screen. Their intended movement, mounting and gas/dust application cannot be inferred from the shared word 'explosion-proof'. Begin with the site hazardous-area classification and the driven machine, then obtain the exact offered variant's current certificate and dimension drawing.

LocationHenan, China
Published catalogue2 product series
Motor families1 represented

XINHANG · HAZARDOUS-AREA MOTOR SELECTION

Xinhang flameproof motors: YBX3 drive or EVMD vibration source?

Explore the published range ↓

01 / WHAT MUST THE MOTOR DO

YBX3 turns a machine shaft; EVMD creates vibration

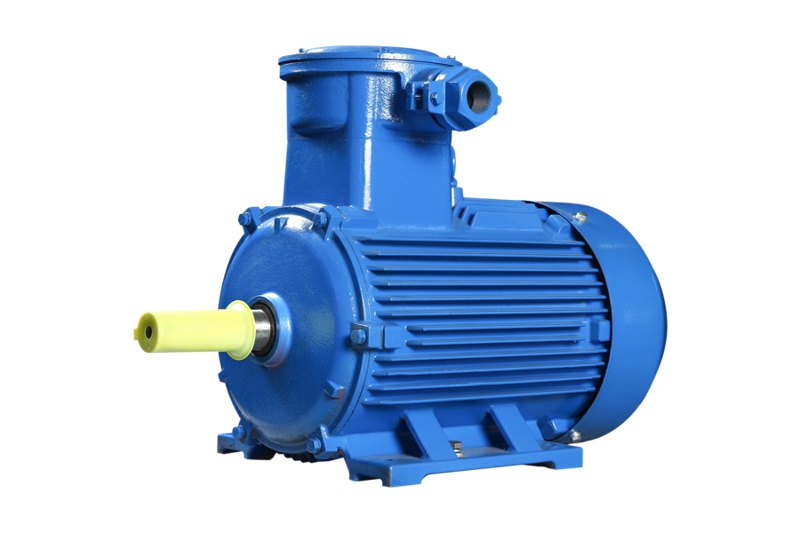

YBX3: continuous industrial drive

The manufacturer's YBX3 page describes a high-efficiency flameproof three-phase induction series, frame sizes 80–280, 50 Hz and S1 continuous duty. It lists 380 V, 660 V and 380/660 V supply options, IP55 enclosure and multiple mounting arrangements. These are family-level options, not a power, pole count or terminal configuration for any one order code. The page distinguishes mine and industrial-gas flameproof markings; neither can be substituted for the other by description alone.

Confirm before ordering Quote the driven pump, fan or machine load curve, required kW and speed, voltage, mounting and shaft, cooling, starts per hour, ambient and exact area classification. Request the selected full type code, current certificate and nameplate, performance sheet, outline and terminal-box drawing.

View YBX3 explosion-proof motor →

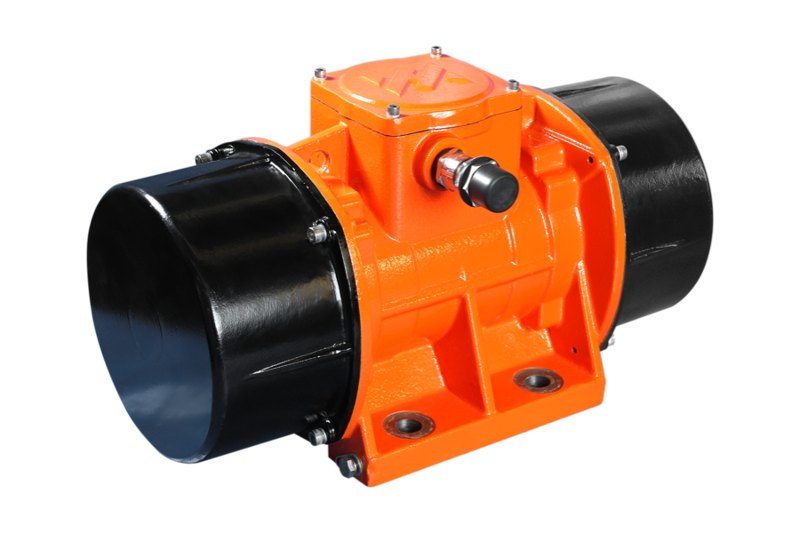

EVMD: eccentric-weight vibration source

The EVMD page describes two eccentric-weight assemblies on the motor shaft, used on vibratory feeders and screens, singly or in combinations. The manufacturer describes different circular, elliptical and linear movement arrangements and both gas and dust protection markings. Its downloadable or pictured force/power and mounting tables are not fully readable as text, so no force, kW or dimensions are inferred here.

Confirm before ordering Provide the equipment mass, required excitation force and frequency, target motion, number and orientation of motors, mounting stiffness, ambient and gas/dust area classification. Ask for the exact force-setting procedure, rated current, bolt pattern and paired-unit synchronization plan.

View EVMD explosion-proof vibration motor →

02 / SAFETY-CRITICAL MATCH

The marking, installation and certificate must agree with the site

Gas, dust or mining atmosphere?

Give the plant's formal zone, gas or dust group, temperature class or surface-temperature limit, ambient range and any mine-specific requirement. Xinhang's older catalogue text names different markings for YBX3 and EVMD. Do not use that text as proof that an offered unit has a current certificate for the actual area.

Which documents belong to this serialised unit?

Request the exact model's certificate number and validity, issuing body, covered marking and ambient conditions, nameplate photograph, installation instructions and drawings. Confirm the standard edition accepted by the destination authority; the manufacturer's public text cites older editions and does not establish present-day compliance by itself.

Will the cable entry and accessories preserve protection?

The manufacturer's instructions emphasise the cable-entry seal, earth connection, flameproof joints and unused-entry closure. Provide cable diameter, gland specification, terminal orientation and maintenance access. Ask the supplier to match approved entries and any drain, bearing service or sensor accessory to the selected certified configuration.

What changes after commissioning?

For EVMD, the catalogue cautions that eccentric-weight assemblies and vibration duty need controlled adjustment and monitoring. For YBX3, bearing lubrication, coupling alignment and enclosure integrity matter. Agree an inspection schedule, permitted field adjustments and replacement-parts list with the operator's hazardous-area procedures.

03 / PROJECT HANDOVER

Use a different installation brief for a rotating drive and a vibrating machine

YBX3 mechanical and electrical fit

The family page lists several IEC-style mounting forms and top-position terminal-box orientations. An existing-machine replacement needs the actual frame, foot/flange arrangement, shaft, coupling alignment, cable routing and 3- or 6-terminal configuration recorded on drawings, with a signed deviation list.

EVMD excitation and structural fit

A vibration motor's force, speed and eccentric setting act on a structure, so the screen or feeder's mode of motion matters as much as nameplate power. Supply the tray/screen drawing, motor positions, structural mass and target trajectory. Require the selected unit's mounting and force table plus a commissioning and synchronization procedure.

Acceptance cannot be a catalogue screenshot

Agree factory acceptance measurements for the offered serial number: electrical rating, insulation, rotation, temperature and vibration or excitation performance as applicable, plus enclosure and nameplate checks. Request a traceable report and certificate set that matches the delivered configuration.

04 / EVIDENCE BOUNDARY

A company record and product instructions answer different questions

Enterprise identity

A 2025 Henan provincial public technology-enterprise list names 郑州欣航防爆电机有限公司 in Zhengzhou's Shangjie district. This cross-checks the legal name and place at that date; it does not certify a specific motor or hazardous-area installation.

What the manufacturer pages establish

Xinhang's YBX3 and EVMD pages provide distinct construction and installation guidance. Some parameter and mounting tables are images or unavailable as readable values. The page cites older standard editions, so model-level ratings, current approval and site suitability remain documents to obtain for the actual offer.
