MOTOR MANUFACTURER · Zhejiang, CHINA

Xizi Forvorda

Zhejiang Xizi Forvorda Electrical Machinery appears in the Xizi group's elevator-component business. Its catalogue includes PMM permanent-magnet synchronous motors for door operators and GETM gearless traction machines for lifting the car. The MotorSourcing product entry here represents only the door-motor range. A door motor, an Optimax door operator and a traction machine solve different jobs; select the component and the legal supplier for the exact project before comparing a quote.

LocationZhejiang, China
Published catalogue1 product series
Motor families1 represented

XIZI FORVORDA · ELEVATOR DRIVE COMPONENTS

Xizi Forvorda: door-motor choice is not traction-machine choice

Explore the published range ↓

01 / IDENTIFY THE DRIVE IN THE LIFT

Door movement and car traction are separate engineering packages

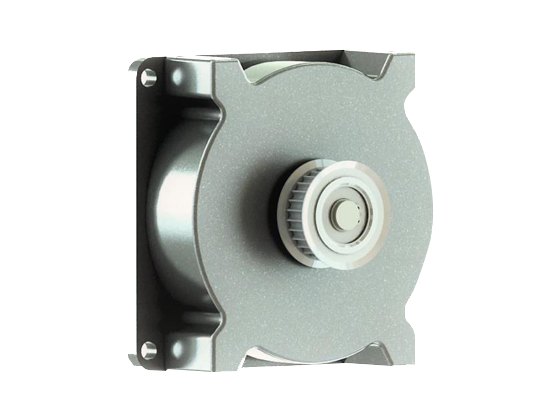

PMM door motor: open and close the doors

The official door-motor catalogue lists PMM5.0G, PMM3.8K, PMM2.3K and PMM2.3G. A PMM5.0G page states 5.0 N·m, 94 W, 65–120 V and 180 rpm, whereas PMM2.3K states 2.3 N·m, 43.5 W, 65–100 V and 180 rpm. These are different model statements, not a configurable 2.3-to-5 N·m range for every housing. The motor must match the operator, pulley/belt, encoder and door mass; a bare motor has no claim to be a complete door safety system.

Confirm before ordering Provide the existing PMM code, door panel count and mass, opening width, operator transmission, control voltage, feedback connector, flange and shaft drawing. Request the offered model's curve, outline, plugout and approved controller pairing.

View PMM synchronous elevator-door motor range →

GETM traction machine: move the lift car

The manufacturer's GETM3.0Pro page is a separate gearless traction-machine system. Its table ties each variant to suspension ratio, car load, speed, motor torque/power, sheave geometry and brake supply. For example, one 800 kg / 1 m/s / 2:1 row lists 5 kW, 511 N·m and a DC110 brake. None of these figures describes a PMM door motor. A traction-machine replacement requires hoistway, controller, rope, brake and regulatory review, not just a motor selection.

Confirm before ordering For a traction project, send the lift's rated load/speed, roping and sheave data, machine location, controller, brake circuit, mounting, counterweight and applicable inspection regime. Ask for the precise GETM model and approved machine/brake documents.

Door operator: a broader system than the motor

The group's separate Optimax door-system pages discuss controller signals, position sensing, drive profile and power-off behaviour. These features belong to a configured door operator/system, not automatically to any PMM motor. The official catalogue lists related Xizi entities, so the quote must identify which company supplies the motor, operator, controller and warranty interfaces.

Confirm before ordering Request a bill of materials and interface drawing showing motor, encoder, controller, door mechanism and protection functions, plus the party responsible for system commissioning and documentation.

02 / MODEL DATA TO ACT ON

Use exact PMM ratings, then test the door's actual load cycle

Torque is a first filter, not the closing-force result

The official PMM5.0G and PMM2.3K pages state different rated torque, power and voltage bands. Door-edge force depends on gearing, control profile, friction, inertia and panel geometry. Ask for a torque-speed curve and test the installed operator against the project's door-motion and obstruction requirements.

Electrical range does not specify a drop-in controller

Both cited PMM pages state 180 rpm and IP54/F class but different voltage bands and currents. Obtain the matching inverter/driver, feedback and connector specification. A similar voltage label is insufficient evidence that an existing operator board will commutate or protect a replacement motor correctly.

Keep entity and certification claims bounded

Xizi group's public industrial-park page identifies Zhejiang Xizi Forvorda Electrical Machinery as a Xizi subsidiary in Lin'an. It does not certify a PMM model or a complete lift. The manufacturer site makes broad company and standards claims, but no current model-specific certificate or inspection approval was established in this review. Request the documents required for the exact destination and installation.

03 / PREPARE A SAFE COMPARISON

Quote the motor, system interface and approval evidence together

A lift component is usually procured into a controlled machine design. For a door retrofit, the most useful starting package is the old operator's identity and the complete door duty, not only a photograph of a motor body.

Describe the door duty

Send centre- or side-opening layout, panel and hanger mass, travel, opening/closing time, traffic cycles, exposure, door force limits and fault modes. Add the current motor and controller labels, harness and mounting photographs.

Require an integrated sample plan

Compare torque and speed over the full door travel, reversals, obstruction response, power-off recovery, sensor loss, temperature rise, noise, vibration and repeat-cycle reliability with the actual operator. Document controller software and parameter revision.

Approve a traceable configuration

Record exact PMM suffix, supply, drawing revision, operator/encoder/driver pairing, supplier legal entity, test limits and replacement-parts policy. For a traction-machine job, start a separate GETM technical review rather than repurposing this door-motor RFQ.

Published motor range

1 series

Company information

Company name
Zhejiang Xizi Forvorda Electrical Machinery Co., Ltd
Chinese registered name
浙江西子富沃德电机有限公司
Region
Zhejiang, China
Record updated
2026-10-07
