01 / THREE DIFFERENT PROCUREMENT ROUTES
Do not turn a flameproof label into a universal motor approval

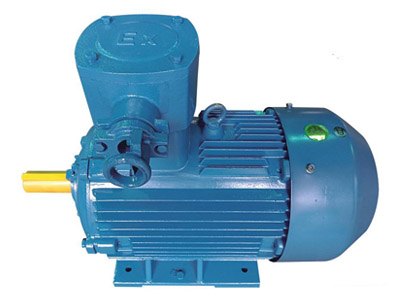

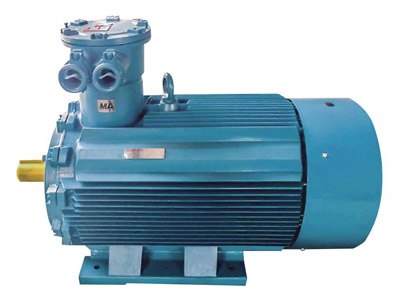

YBX3, YBX4 and YBX5: begin with the hazardous-area dossier
Yuanzhong lists these as separate flameproof three-phase induction series. The catalogue's higher-efficiency naming distinguishes families, but it does not tell a buyer that every frame, terminal arrangement and temperature class is certified for the same gas group or zone. The three linked MotorSourcing pages are existing catalogue references, not substitutes for a current nameplate and certificate schedule.
Confirm before ordering Supply the site's zone, gas group, temperature class, ambient range, voltage, frequency, power, poles, mounting, ingress and cable-entry requirements. Ask for the exact ordering code, current certificate with model schedule, marked nameplate, drawing and efficiency test values for that code.

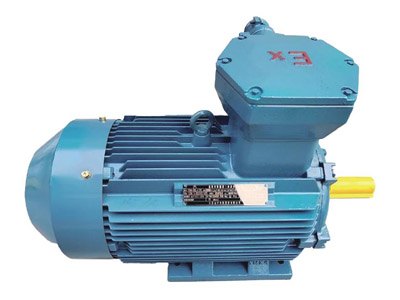

View YBX4 high-efficiency flameproof motor →
YBBP or YFB3: decide whether the risk is drive supply or combustible dust
The same low-voltage list separately names a YBBP flameproof variable-frequency family and a YFB3 dust-explosion-protection family. A VFD changes thermal and bearing conditions; a dust atmosphere needs its own protection marking and installation plan. Neither classification follows automatically from a YBX certificate or the motor's efficiency label.
Confirm before ordering For drive-fed duty, provide torque-speed curve, speed range, carrier frequency, cable length and cooling method. For dust, provide zone, dust group/layer, maximum surface temperature, cleaning and ingress conditions. Ask which exact combination is within the relevant certificate and which external protection is required.

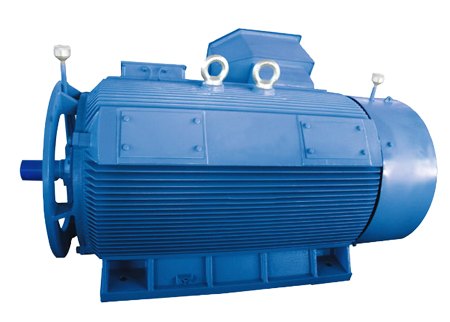

Y2, YKK and YRKK/YRKS: first solve the high-voltage starting system
Yuanzhong has a separate high-voltage catalogue with Y2 compact induction, YKK and wound-rotor YRKK/YRKS entries. A wound rotor with a starting resistor is a different system from a squirrel-cage Y2/YKK installation. The catalogue page does not provide a complete model-by-model electrical schedule, so motor dimensions or rotor type cannot be inferred across the families.
Confirm before ordering Send grid voltage, permissible inrush and voltage dip, load torque versus speed, starts per hour, acceleration time, cooling-air or water conditions, mounting, service factor and protection scheme. Request the exact motor data sheet, starting study, rotor-resistor interface if applicable, outline drawing and type/routine test plan.
View Y2 compact high-voltage induction motor →
