MOTOR MANUFACTURER · Zhejiang, CHINA

Zhejiang Better Motor

Better Motor publishes ordinary, submersible and explosion-protected motor categories. Its YBX3-160M page mixes incompatible model details, so the buyer needs a corrected model sheet before comparing ratings.

LocationZhejiang, China
Published catalogue1 product series
Motor families1 represented

ZHEJIANG · MOTOR AND HAZARDOUS-AREA SELECTION

Zhejiang Better Motor: resolve catalogue conflicts before choosing an Ex motor

Explore the published range ↓

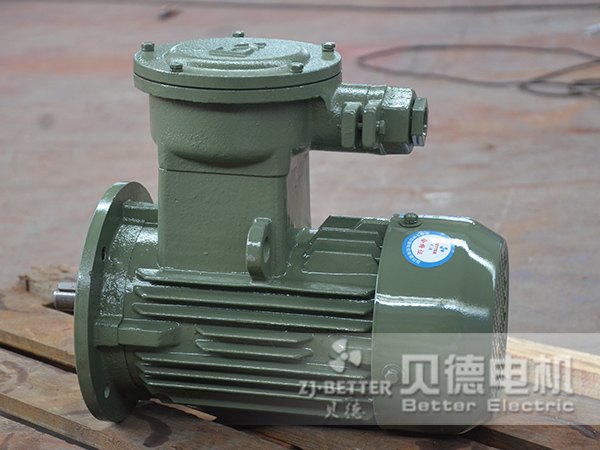

01 / THE YBX3-160M TEST CASE

The catalogue title and technical paragraph do not describe one clear motor

The heading says 160M; the body changes frame and family

The manufacturer's own page is titled YBX3-160M, yet its detailed paragraph names YBX3/YB3-132M-4 at 7.5 kW. It also contains stepper-motor copy unrelated to a flameproof induction motor. The metadata and narrative disagree on supply voltage as well. Those mixed fields cannot be turned into a trustworthy YBX3-160M nameplate.

Do not borrow 132M values for the 160M inquiry

The site's cited 7.5 kW, current, speed, torque and efficiency lines have no reliable one-to-one relationship with the 160M heading. The site's image and marketing list establish interest in a YBX3 family, not the rating, flange, Ex marking or certified scope of the offered unit. Existing MotorSourcing YBX3-160M is therefore retained as a catalogue reference, not an orderable specification.

What the buyer should ask to reconcile it

Request a single revision-controlled sheet carrying the exact complete code, frame, pole count, rated supply and current, kW, rpm, dimensions, connection arrangement, protection marking and certificate number. Require the same code on the drawing, nameplate photograph, test report and commercial quote. If these still diverge, defer technical approval.

02 / DISTINCT APPLICATIONS

Submersible, dust and gas duties are separate procurement routes

Dry industrial drive

The site separates ordinary three-phase motors from inverter-controlled motors. A fixed-frequency fan or pump and a variable-torque process are not the same electrical brief; neither ordinary category is proof of suitability for a classified atmosphere.

Confirm before ordering Provide load point or torque curve, supply, start or drive method, duty, ambient, mounting and cooling. Ask for the exact efficiency test basis and drive thermal limits where applicable.

Gas or combustible dust location

The manufacturer's navigation gives flameproof motors and dust explosion-protection motors their own categories. The public family labels do not show that a particular build is approved for both gas and dust, or that an older scan still covers the current production variant.

Confirm before ordering State zone, gas or dust group, temperature class or maximum surface temperature, ambient and cable-entry conditions. Request the issuer-verifiable certificate, holder, model coverage, marking and current design revision for the exact quote.

Submersible service

The catalogue further distinguishes ordinary submersible motors from submersible explosion-protected motors. Both require a fluid and sealing discussion that a dry-motor drawing cannot answer. Explosion-protected submersible service adds a separate approval question, not simply a stronger enclosure label.

Confirm before ordering Send fluid composition, solids content, immersion depth, duty cycle, cable length, seal and bearing requirements, starting method and site classification. Request wet-end interface, permissible immersion, seal arrangement and exact safety scope.

03 / BUYER HANDOFF

Use the corrected build record as the purchase gate

What evidence supports the identity of this page?

The manufacturer site itself names Better Technology Group (Zhejiang) Motor Co., Ltd. A Zhejiang provincial government-hosted enterprise list independently includes the same Chinese legal entity and registration identifier. That is a narrow identity cross-check; it does not establish any YBX3 rating, current Ex certificate, capacity or performance outcome.

Which documents should close the YBX3-160M quotation?

Ask for the full variant code and one matching package: nameplate photograph, electrical and dimensional sheets, tested rated point, Ex certificate with current validity and model range, environmental limits, installation manual and inspection/acceptance plan. State the motor-only versus pump/drive package boundary and the factory that will produce the quoted configuration.

Published motor range

1 series

Company information

Company name
Better Technology Group (Zhejiang) Motor Co., Ltd.
Chinese registered name
贝德科技集团(浙江)电机有限公司
Region
Zhejiang, China
Record updated
2026-10-08
