01 / THE LOAD SHAPE MATTERS
Three compact platforms, three operating problems

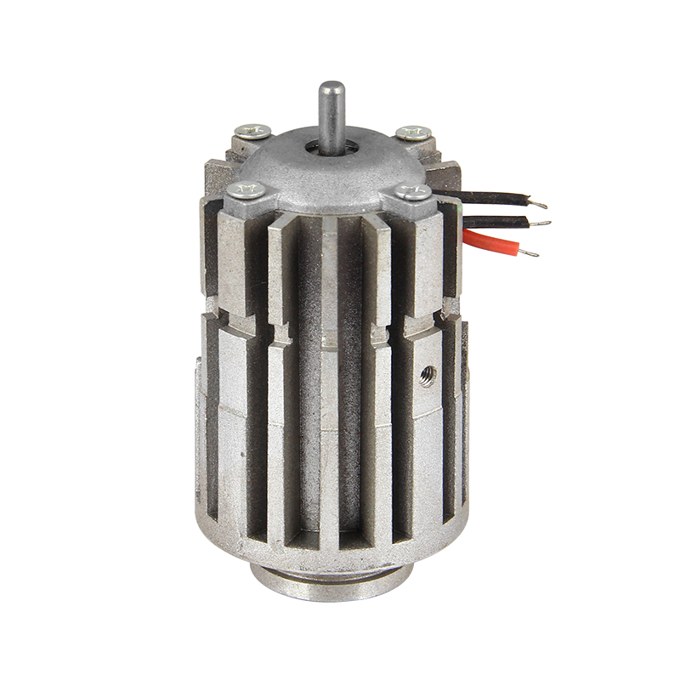

M29 wool clipper: cutting transients and hand-held packaging
The official M29 page identifies a 29-size platform for wool shears and lists 12–36 V, 100–300 W and 10,000–30,000 rpm as family ranges. Those extrema are not one build's guaranteed operating point. Cutting torque spikes, blocked blades and housing airflow can dominate a hand-held tool even when a bench speed is attractive. Confirm whether the supplier is quoting the bare motor, geared spindle or assembled drive.
Confirm before ordering Send blade/cutter torque trace, reduction ratio, handle envelope, allowable mass and vibration, battery voltage under load, duty/rest cycle and stall event. Ask for the exact winding's torque-speed curve, controller current limit, temperature-rise test and shaft/mount drawing.
View M29 inner-rotor brushless motor for clippers →

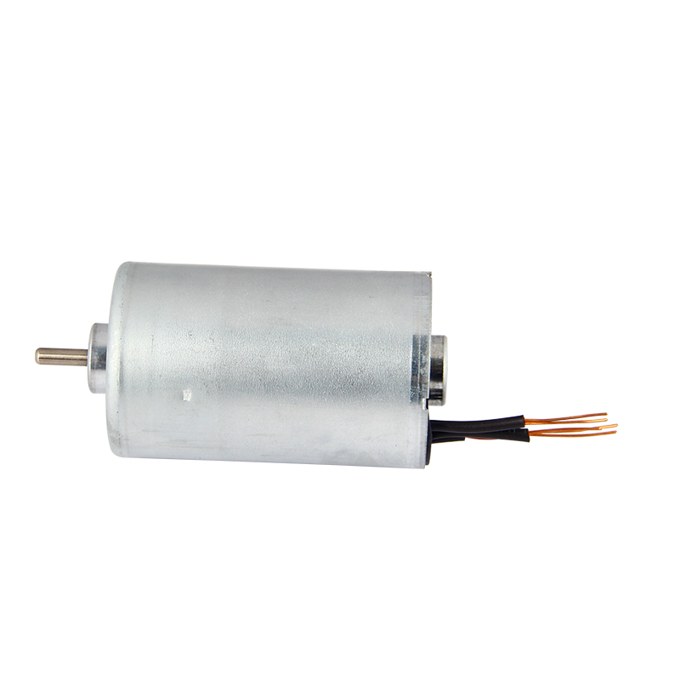

M36 pump or horse clipper: do not share one test plan
The manufacturer's M36 record names both water pumps and horse clippers and presents 12–24 V, 100–400 W and 10,000–35,000 rpm as family ranges. A centrifugal pump imposes a continuous hydraulic operating point and liquid-isolation requirements; a clipper imposes blade impacts, grip noise and intermittent handling. One motor diameter does not prove either application is qualified.
Confirm before ordering For a pump, provide flow-head curve, fluid temperature, seal arrangement, run hours and dry-run protection. For a clipper, provide blade load, gear reduction, duty, washdown and hand-arm vibration limits. For both, request the exact motor/controller revision, rated speed under load and endurance test.
View M36 compact inner-rotor brushless motor →

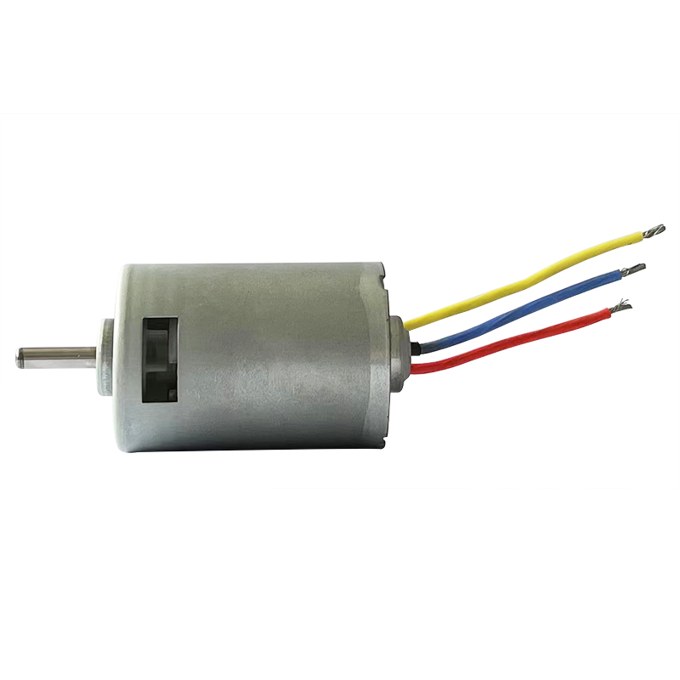

M40 fruit harvester: size for repeated impacts
The official M40 page associates the 40-size series with fruit-harvesting equipment and lists 12–24 V, 200–500 W and 10,000–35,000 rpm as catalogue intervals. A shaker or picker may experience rapid acceleration, branch contact and repeated reversals. The motor must be assessed with the gearbox/eccentric and tool, not selected solely because the family's top wattage exceeds a competing product.
Confirm before ordering Provide eccentric mass or cutter mechanism, stroke and impact schedule, gearbox efficiency, battery sag, overload and shock limits, outdoor ingress and thermal cycle. Request torque-current and efficiency maps, gearbox interface, protection strategy and field duty validation.
View M40 brushless motor for fruit-harvesting equipment →
