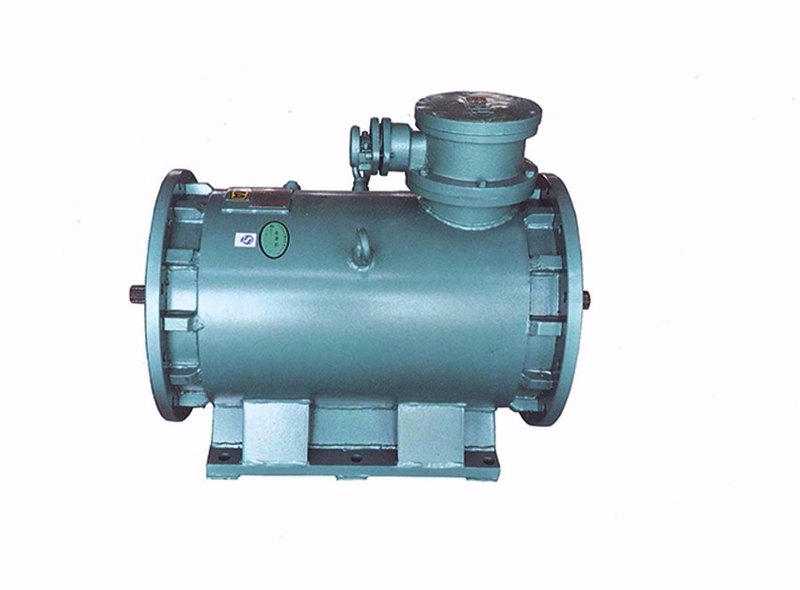

YBK3 underground-mine induction motor

Manufacturer catalogue image · Series illustration

Explosion-proof motors

YBK3 underground-mine induction motor

Power
2.2–630 kW
Voltage
380 / 660 / 380–660 / 660–1140 V
Duty
S1
Frequency
50 Hz

Catalogue series · Exact configuration and availability confirmed by the manufacturer.

CATALOGUE OVERVIEW

About this motor series

Shuangyun’s underground-mine catalogue separates YBK3 general drives from conveyor and pump motor families. The YBK3 detail page lists 2.2–630 kW at 50 Hz, continuous S1 duty, IP55 protection and class F insulation. It describes a steel-plate frame and a high-strength cast-iron terminal box. Voltage options include 380 V, 660 V, dual 380/660 V and 660/1140 V.

For a mine-drive enquiry, identify the equipment, winding voltage and mounting drawing, then request the exact model certificate. The catalogue refers to YB3 dimensions; that reference does not establish interchangeability of every frame or approval for every underground location.

Model / series reference: YBK3

Published specifications

Specifications describe a series range; confirm which ratings apply together to the quoted model.

Power
2.2–630 kW
Voltage
380 / 660 / 380–660 / 660–1140 V
Duty
S1
Frequency
50 Hz
Insulation
Class F
Protection
IP55
Product Type
Mining explosion-proof motor
Terminal Box
High-strength cast iron
Catalogue Scope
Product family / configuration confirmed on inquiry
Detailed Family
YBK3
Frame Construction
Steel plate
Speed
Model dependent
Manufacturer
Shuangyun Motor

Confirm mounting and shaft dimensions against the drawing for the quoted configuration.

Catalogue reference

Manufacturer
Shuangyun Motor
Product reference
YBK3 underground-mine induction motor
Source reviewed
2026-09-21

Ask for the current datasheet and dimensioned drawing with your inquiry.

Selection guidance for Explosion-proof motors
  • Gas or dust environment
  • Site classification
  • Certificate and exact marking
  • Temperature and ambient range
  • Installation requirements
