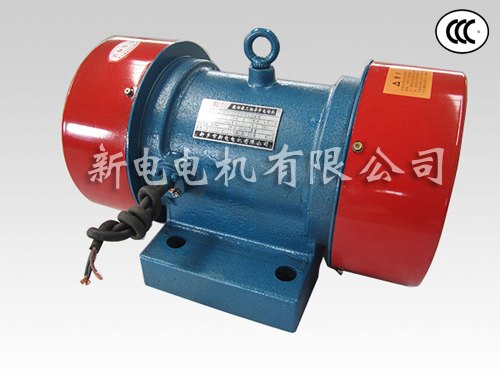

YZS vibration motor

Manufacturer catalogue image · Series illustration

Application-specific motors

YZS vibration motor

Power
0.09–10 kW
Example
YZS-140-6: 10 kW; 140000 N
Product Type
YZS vibration motor
Catalogue Scope
Manufacturer model or series

Catalogue series · Exact configuration and availability confirmed by the manufacturer.

CATALOGUE OVERVIEW

About this motor series

Xindian’s YZS vibration-motor table spans 0.09–10 kW and separates synchronous-speed groups of 3000, 1500, 1000 and 750 rpm. The YZS-140-6 example is listed at 10 kW and 140000 N maximum excitation force. Mounting dimensions and weight vary substantially by size; match force, speed and the support structure together. The table headings give synchronous speed rather than measured loaded shaft speed.

The YZS-40-6 force cell is printed as 4000 N, inconsistent with adjacent rows. That individual force value requires supplier confirmation.

Model / series reference: YZS

Published specifications

Specifications describe a series range; confirm which ratings apply together to the quoted model.

Power
0.09–10 kW
Example
YZS-140-6: 10 kW; 140000 N
Product Type
YZS vibration motor
Catalogue Scope
Manufacturer model or series
Selection Inputs
Excitation force, mounting dimensions and machine support
Tabulated Output
0.09–10 kW
Synchronous Speed Groups
3000 / 1500 / 1000 / 750 rpm
Voltage
Confirm supply
Speed
Model dependent
Manufacturer
Xindian Motor

Confirm mounting and shaft dimensions against the drawing for the quoted configuration.

Catalogue reference

Manufacturer
Xindian Motor
Product reference
YZS vibration motor
Source reviewed
2026-09-21

Ask for the current datasheet and dimensioned drawing with your inquiry.

The YZS-40-6 force cell is printed as 4000 N, inconsistent with adjacent rows. That individual force value requires supplier confirmation.

Selection guidance for Application-specific motors
  • Application and load cycle
  • Mechanical envelope
  • Supply and control
  • Environment and cooling
  • Drawings and acceptance criteria
