MOTOR MANUFACTURER · Zhejiang, CHINA

Baixiang Motor

Baixiang's catalogue covers wiper systems as well as geared DC door drives. For a door-opener project, specify the mechanism and supply first: its W.E1041R and W.E2041R are separate 12V and 24V entries, not interchangeable voltage settings of one motor.

LocationZhejiang, China
Published catalogue1 product series
Motor families1 represented

BAIXIANG · GEARED DC ACTUATION

Baixiang Motor: source a 12V or 24V door-opener drive by its mechanism

Explore the published range ↓

01 / APPLICATION FIT

Choose a door drive from motion and holding needs, not a generic DC label

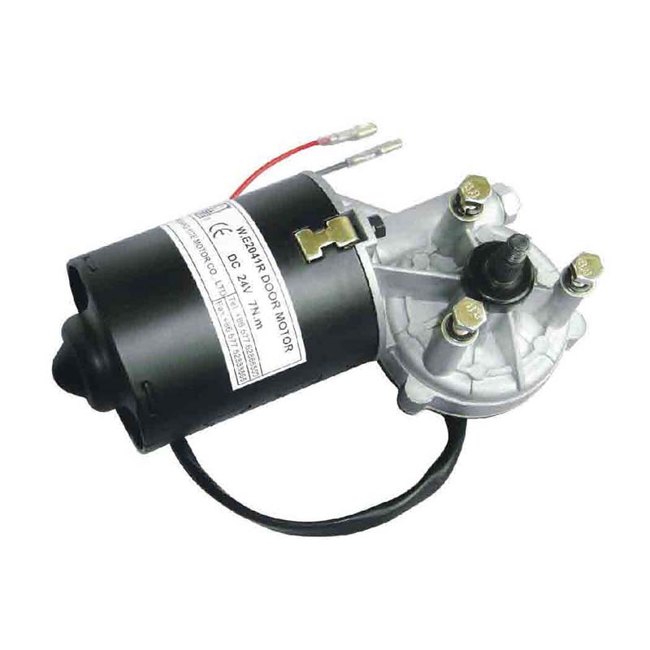

Hinged or opener mechanism: W.E1041R / W.E2041R

The maker's table pairs W.E1041R with 12V and W.E2041R with 24V. Both list 7 N·m working torque and about 40 rpm loaded output speed, while loaded current is up to 8A and 5A respectively. Those are two voltage-specific rows. The same page separately gives braking torque and gear-strength thresholds; neither is the continuous working torque available at the shaft.

Confirm before ordering Send the door or opener linkage drawing, required output rotation, load versus travel, operating cycles, stall exposure, supply and controller current limit. Ask for the exact left/right output, gearbox and mounting drawing, electrical connector and test conditions for the chosen voltage row.

View W.E1041R / W.E2041R door-opener motor →

Sliding door: do not substitute by voltage alone

The same official catalogue has a separate W.E2030 sliding-door motor. Its published working torque is 1.2 N·m and loaded output speed about 85 rpm, unlike the W.E1041R/W.E2041R opener rows. These numbers explain why a catalogue match by 12V or 24V alone can select the wrong gearbox. The site does not yet have a dedicated W.E2030 product record, so request its original drawing directly in the RFQ rather than treating the two families as one listed product.

Confirm before ordering Describe whether the load is a sliding leaf or a hinged opener, the rail or linkage, duty cycle, travel time and holding or braking arrangement. Compare gearbox ratio, shaft and mounting pattern as well as torque and speed.

02 / WHAT IS BEING BOUGHT

Baixiang's wiper system scope does not turn every motor into the same part

A wiper assembly includes different interfaces

Baixiang lists rail-vehicle, yacht, bus, engineering-vehicle and agricultural wiper categories, alongside wiper motors, arms, blades and linkage assemblies. A buyer sourcing a complete wiper arrangement should provide windshield geometry, sweep angle, mounting and linkage layout, water exposure and required control behavior. A buyer sourcing only a motor must specify which existing gearbox and linkage it must drive.

For a door drive, distinguish the motor from the safety system

The W.E1041R/W.E2041R catalogue gives motor and gearbox electrical/mechanical figures, not a complete door safety controller, obstruction detection or installation approval. The OEM must define end stops, reversal, emergency release, enclosure and braking behavior. Agree which side supplies and validates those components before comparing motor prices.

Read torque labels literally

On the official opener page, working torque is 7 N·m; braking torque is stated at least 24 N·m and gear-strength threshold at least 30 N·m. Higher braking or strength figures should never be quoted as normal drive output. Ask for the maker's load-test method and thermal limits at the intended cycle rate.

03 / MODEL-SPECIFIC CHECKS

Give the supplier one complete motion and electrical brief

Which drawings and load data are needed?

Include door or wiper equipment drawing, linkage/gearbox interface, shaft orientation, required motion arc or travel, moving mass, friction and peak load, operating temperature, ingress exposure and daily cycles. Photos of the existing unit and connector help distinguish a replacement from a new design.

Which voltage row and controller?

State nominal and allowed supply range, cable length, motor control polarity, controller current limit and protection behavior. The maker gives the two opener rows different loaded currents: up to 8A at 12V and up to 5A at 24V. Do not pair the 12V current with the 24V part when sizing wires, fuses or the controller.

How should the sample be accepted?

Approve a dimensioned sample and test it on the actual mechanism for travel time, running/stall current, working torque, noise, temperature rise, end-stop behavior, reversed direction and repeated cycling. The catalogue's 40 rpm loaded speed is a reference under its stated conditions, not an assembled-door cycle-time guarantee.

04 / SOURCE BOUNDARY

A real motor maker with a broader wiper business; the ordered build still needs proof

Identity and catalogue

The official site names 白象电机有限公司 and publishes wiper-related systems, wiper motors and a separate door/DC motor category. A Yueqing municipal enterprise list independently names the same legal entity; that list checks identity, not the performance or certification of the W.E1041R/W.E2041R.

Which numbers are actually supported?

The manufacturer's W.E1041R/W.E2041R page has distinct 12V and 24V rows for current and common working-torque and speed entries. A separate W.E2030 page makes the sliding-door distinction concrete. Neither page gives a full installed-door test, lifecycle test or confirmed compatibility with a buyer's controller; these must be quoted and validated for the chosen assembly.

Published motor range

1 series

Company information

Company name
Baixiang Motor Co., Ltd.
Chinese registered name
白象电机有限公司
Region
Zhejiang, China
Record updated
2026-10-07
