MOTOR MANUFACTURER · Jiangsu, CHINA

BEIDE

BEIDE is Innomotics Motors (China)'s low-voltage brand. Its cast-iron 1TL8004 serves a conventional fixed-speed brief; YVF2 is the separate inverter-duty family with independent cooling. The official 1TL8004 page contradicts itself on efficiency grade, so confirm the exact model's current nameplate and certificate before comparing offers.

LocationJiangsu, China
Published catalogue2 product series
Motor families1 represented

BEIDE · LOW-VOLTAGE DRIVE CHOICE

BEIDE industrial motors: 1TL8004 fixed speed or YVF2 inverter duty

Explore the published range ↓

01 / MATCH THE CONTROL STRATEGY

A fixed-speed replacement and a wide-speed retrofit are different purchases

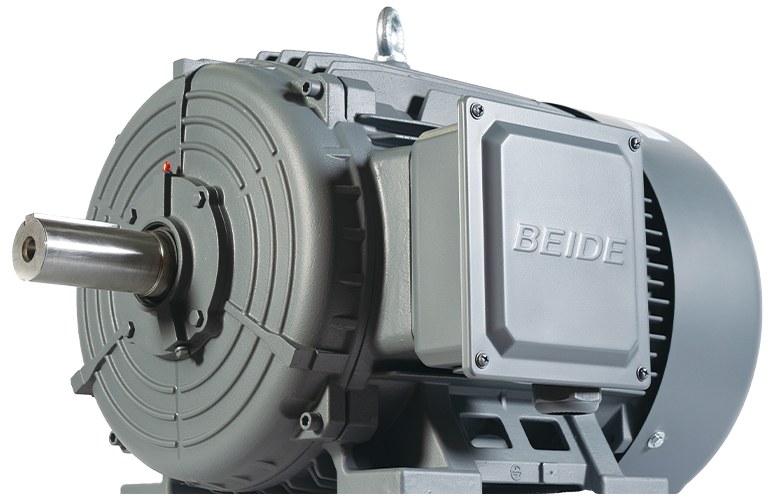

1TL8004: continuous-duty cast-iron induction motor

The maker describes 1TL8004 as a cast-iron, IP55, S1 general industrial platform, listing frame 80–355, 0.55–315 kW and standard IC411 cooling with IC416/IC410 options. It gives pumps, fans, compressors, textile machines, conveyors and mixers as application examples. Those family bounds do not establish every frame's power or an inverter speed range. If an existing load simply needs a fixed-speed replacement, first match supply, pole count, mounting and starting conditions.

Confirm before ordering Send the present nameplate, load and starting curve, voltage/frequency, coupling/shaft drawing, mounting code, ambient and required duty. Request an exact 1TL8004 code, outline, starting and thermal data, and current efficiency proof for that code.

View 1TL8004 cast-iron induction motor →

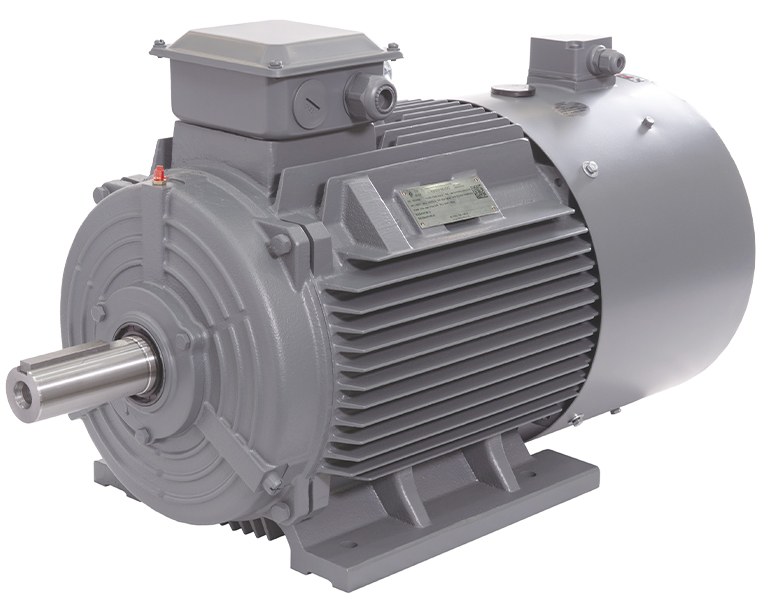

YVF2: variable-frequency duty with separate cooling

The official YVF2 page specifies IC416 independent axial-fan cooling, IP55 and a 380 V reference. Its table varies constant-torque and constant-power speed ranges by frame and pole count; the displayed cells are incomplete for some combinations. Do not apply the broadest frequency line to an unspecified unit. The fan supply, VFD and motor must be specified as a system, especially at sustained low speed.

Confirm before ordering Provide the torque-speed envelope, minimum continuous rpm, maximum rpm, inverter voltage and switching characteristics, cable length, cooling-fan supply, ambient and bearing/load details. Ask for the quoted frame/poles' confirmed frequency ranges, fan wiring and thermal test conditions.

View YVF2 independently cooled variable-frequency motor →

02 / RESOLVE A PUBLISHED CONFLICT

The 1TL8004 page gives two different efficiency grades

Do not choose the more attractive line

The current official 1TL8004 title and descriptive paragraph call it a second-grade high-efficiency series, while the specification block says GB18613-2020 grade 3. These statements cannot both prove a specific quoted unit's grade. The profile records the discrepancy rather than silently converting it to grade 2 or grade 3.

Verify the destination-market requirement

Ask for the exact motor code, rated output, speed and efficiency test values, the governing standard and revision, the certificate or registration scope, and a photo of the production nameplate. Local grade labels do not automatically equal a different market's IE or regulatory marking. Compare efficiency at the required load point, not a catalogue badge.

Do not mix cooling options into the base offer

The 1TL8004 page lists IC411 as normal and IC416/IC410 as options, whereas YVF2 uses IC416. If an offer needs independent cooling, clarify whether fan assembly, supply and enclosure are included. The exact cooling build affects installed length, auxiliaries, noise, protection and total cost.

03 / COMPARE COMPLETE OFFERS

Tell every bidder the same operating point and acceptance test

What must fit on site?

Record frame, feet/flange, shaft extension, coupling, terminal-box side, cable entry, foundation clearance and lifting space. The same nominal frame does not guarantee identical mounting dimensions or service clearance across a standard and an independently cooled motor.

What will the power system permit?

For a fixed-speed 1TL8004 replacement, provide supply tolerance and available starting current/voltage dip. For a YVF2 retrofit, provide the VFD type, operating frequency range, long-cable filtering and required low-speed torque. Request protective and insulation coordination appropriate to the proposed installation; do not assume an optional bearing or filter is standard.

What evidence closes the order?

Agree rated-load current, temperature rise, vibration, noise and efficiency documentation for the chosen build. For inverter duty, test temperature at the slowest sustained speed and the actual fan supply. Record the offered auxiliary fan and any feedback or thermal sensors as explicit line items.

04 / VERIFIED IDENTITY

The Yizheng manufacturer is real; each quoted motor needs its own proof

Operating identity

The BEIDE site names 茵梦达电机(中国)有限公司 at the Yizheng automotive industrial park and presents low-voltage product families. Independent Jiangsu and Chinese public records corroborate the former Siemens Motors (China) to Innomotics Motors (China) renaming. This checks who the manufacturer is, not the efficiency class or factory test outcome of a quoted motor.

Family data versus order data

The official pages distinguish 1TL8004 continuous duty from YVF2 inverter service and list separate cooling arrangements. The 1TL8004 efficiency contradiction and YVF2 frame-dependent speed table keep the exact order code, nameplate and applicable datasheet essential. No price, certification coverage or performance at a specific buyer operating point is inferred here.

Published motor range

2 series

Company information

Company name
Innomotics Motors (China) Co., Ltd.
Chinese registered name
茵梦达电机(中国)有限公司
Region
Jiangsu, China
Record updated
2026-10-07
