MOTOR MANUFACTURER · Hebei, CHINA

Cangzhou Yineng

Cangzhou Yineng lists collector rings, brush gear, motor cooling fans and fan covers. These are replacement and integration components, not a complete motor quote. Identify the host motor and its mating dimensions first; the older catalogue pages do not supply enough measurements to choose by a family name alone.

LocationHebei, China
Published catalogue4 product series
Motor families1 represented

CANGZHOU YINENG · REPLACEMENT COMPONENTS

Cangzhou Yineng motor parts: match slip rings, fans and covers to the host motor

Explore the published range ↓

01 / WHERE THE PART SITS

Electrical transfer and cooling hardware are separate replacement jobs

Slip-ring and brush path: preserve the electrical interface

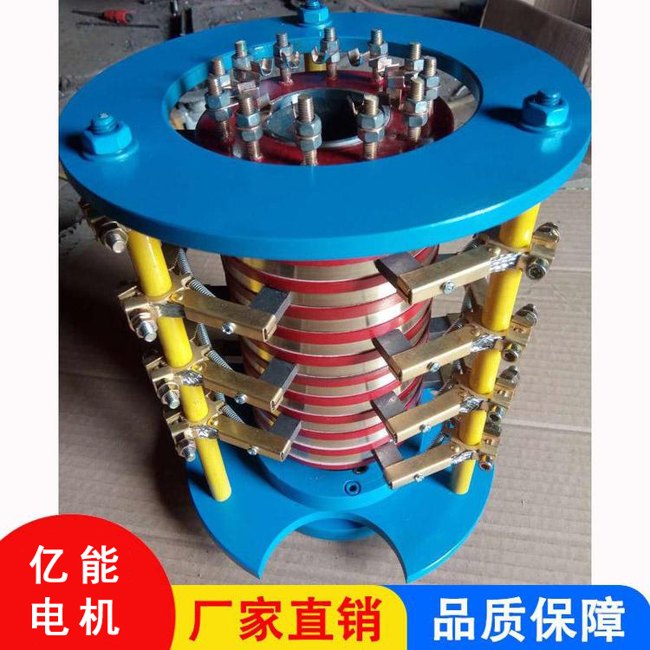

The manufacturer's catalogue separates motor collector rings, carbon brushes, brush holders and centre collector-ring assemblies. A named YNJDHD-15-112 assembly appears in the slip-ring category, but its detail page does not print circuit count, current, insulation, diameter or material. A ring pictured for one YR or YZR machine cannot be treated as interchangeable with another rotor simply because both use brushes.

Confirm before ordering Send the host-motor maker, serial/model plate, old-part drawing and photos; specify ring outside and inside diameters, number of circuits, shaft fit, voltage/current, brush grade, spring force, lead connection and operating environment. Ask for a signed mating drawing and electrical test criteria.

View Motor slip ring and collector assembly →

Fan and cover path: preserve airflow and clearance

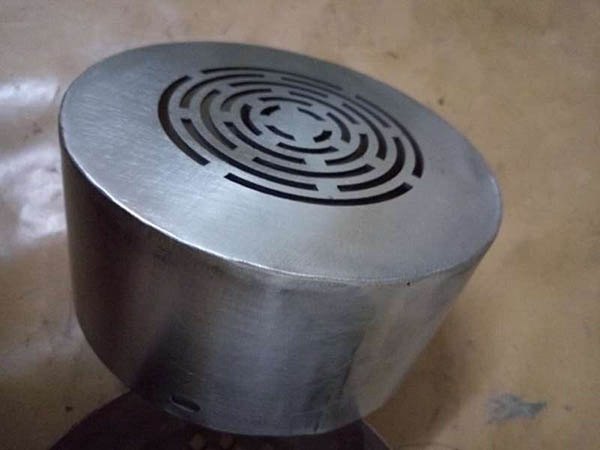

The site lists aluminium fans for Y and YZR motor families and separate metal fan covers, including a stainless YNDJFZ9238 listing. Those category names do not establish blade geometry, rotational direction, shaft bore, clearance or the cooling performance of a specific replacement. The old Y-series fan detail also contains unrelated prose about fluidized-bed air caps and wind-turbine blades; it is not a usable motor-fan specification.

Confirm before ordering Provide the host motor's frame and cooling method, existing fan/cover photographs, fan diameter and bore, key or clamp details, rotation direction, cover depth and mounting-hole pattern. Request material grade, balance/fit checks and airflow or thermal evidence for the offered configuration.

View Y-series aluminium motor cooling fan →

02 / PREVENT A NEAR-FIT PART

Send a dimensioned failed part and the host-machine duty

Is this a direct replacement or an engineered substitute?

The company's catalogue names YR, YZR, JR and other motor families, but public product cards do not provide a cross-reference matrix. Mark the existing motor and component part numbers, supplier drawing revision and any modifications. If the offer is a substitute, require a written deviation list and the dimensions that must be measured on receipt.

Which failure mode must the new part address?

For collector rings, describe brush sparking, pitting, heat or uneven wear and give speed and current duty. For a fan or cover, describe rubbing, fractured blades, corrosion, dust clogging or overheating and give the ambient and enclosure conditions. These observations help distinguish a worn component from a motor, mounting or cooling-system fault.

What will count as an acceptable delivery?

Request the itemized part number, material and process declaration, approved drawing, inspection dimensions, electrical isolation/contact checks for rings or clearance/balance checks for rotating fans, packaging protection and spare brush/fastener details as applicable. Do not accept an unmeasured catalogue image as a fit guarantee.

03 / SOURCE REVIEW

Useful product families are visible; exact component specifications are not

Identity and scope

The company's own About page names 沧州亿能电机电气设备有限公司 in Dongguang, Hebei and lists motor collector rings, brushes, holders, aluminium fans, covers and other electrical transfer components. A historical public-company disclosure also names the same Chinese company among counterparties; that is identity context, not proof of current capacity, a particular supply contract or a product approval.

Old pages require a current drawing

The checked stainless-cover detail is dated 2016 and has a product name and image without a readable dimension sheet; the Y-series fan page is dated 2013 and contains off-topic material. The collector-ring page likewise has a name and image but no complete electrical/mechanical data. These gaps are why the RFQ asks for a current, selected-part drawing and test conditions. The site's ISO 9001 statement has not been validated against a current certificate and is not presented as a verified certification.

Published motor range

4 series

Company information

Company name
Cangzhou Yineng Motor Electrical Equipment Co., Ltd.
Chinese registered name
沧州亿能电机电气设备有限公司
Region
Hebei, China
Record updated
2026-10-07
