ZHEJIANG · INDUSTRIAL MOTOR SELECTION

DAGAO motors: separate hazardous-area duty from drive-fed speed control

Explore the published range ↓

01 / APPLICATION GATE

Start with the installation hazard and control method

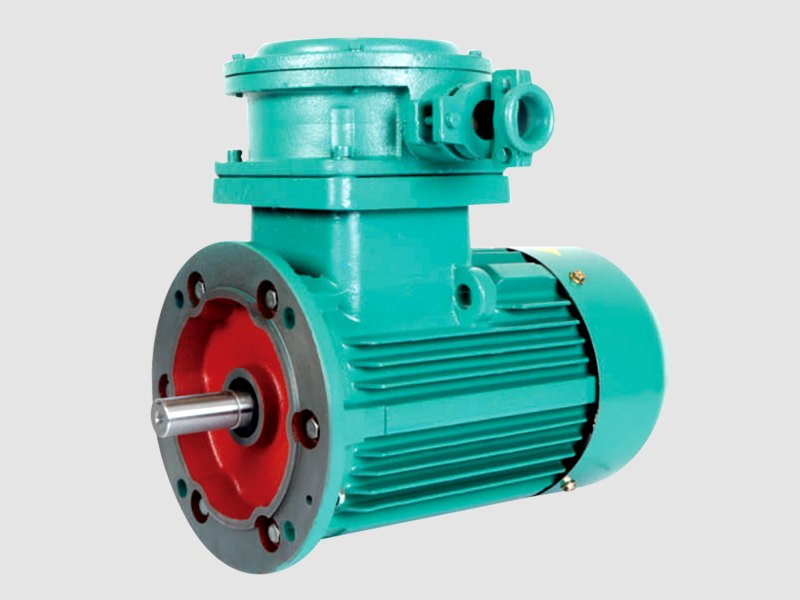

Hazardous area and vertical mounting: investigate the YBX3 variant

DAGAO has a separate official listing for a vertical YBX3 flameproof and dust-protection motor. Its attached performance table covers two-, four-, six-, eight- and ten-pole YBX3 rows; the YBX3-90S-4 row is 1.1 kW at 1400 rpm. A family table does not prove that every row is sold with the pictured vertical flange or that one variant carries every gas and dust marking in the heading.

Confirm before ordering Send zone/classification, gas or dust group, temperature requirement, ambient range, process medium, flange and shaft drawing, mounting orientation, supply and load. Ask for the exact configuration code, nameplate, legal-entity-specific certificate and scope, and a dimensional drawing before accepting an Ex claim.

Ordinary fixed-frequency drive: compare the YE3 catalogue

The 2024 DAGAO group brochure presents YE3 as a separate three-phase induction family with model-by-model performance data. Its series range is not a rating for one machine and the brochure is not a hazardous-area approval. Compare a proposed YE3 row to the actual supply, duty, frame, pole count, efficiency requirement and mounting envelope.

Confirm before ordering Give rated supply and frequency, required shaft power at the load point, starting method, starts per hour, duty cycle, ambient, enclosure, cooling and shaft orientation. Request a current model sheet and tested values for the selected configuration.

Variable-speed process: assess YVF2 with its inverter

The same brochure treats YVF2 as a drive-fed adjustable-speed family, with IC416 continuous cooling and frequency ranges that differ by pole group. A speed range in a family table is not a promise of constant torque or usable cooling at every speed for every motor. It also cannot substitute for an explosion-protected motor in a classified location.

Confirm before ordering Supply speed-versus-torque demand, minimum continuous speed, overload duration, drive type and carrier frequency, cable length, braking or regeneration duty, and the installation atmosphere. Request the selected motor-drive thermal envelope, bearing/insulation guidance and cooling arrangement.

02 / WHAT THE SOURCES ESTABLISH

A family catalogue and a certified configuration answer different questions

What is independently attributable to this company

The manufacturer's own pages identify Zhejiang Dagao Electric Motor Co., Ltd. and show distinct motor families. A national standards record independently names the same Chinese legal entity among the drafting organizations for a line-start permanent-magnet synchronous motor standard. That supports identity and standards participation only; it is not a certificate, test report or endorsement of any YBX3, YE3 or YVF2 motor.

The brochure is useful, but dated and grouped

A DAGAO-branded 2024 group brochure separates fixed-frequency YE3, inverter-fed YVF2, multi-speed YD/YDT and braking YEJ2 families. Its tables are family-level selection evidence. Treat drawings, electrical ratings, environmental protection and delivery scope as current only after the supplier identifies the exact model, revision and factory in a quotation.

Explosion-protection claims need a unit-specific document

The current YBX3 page combines vertical mounting, gas flameproof and dust wording. No independently checked certificate tied to the offered exact variant was obtained in this review. The page therefore does not present a certification badge or claim that the tabulated YBX3-90S-4 has all pictured mounting and protection options simultaneously.

03 / BUYER ACTION

A useful inquiry identifies the motor duty before a model label

What should be included for a vertical hazardous-area replacement?

Send the existing nameplate and GA drawing, zone/classification and gas/dust data, flange and shaft dimensions, load curve, supply, starter or inverter details, ambient and process temperatures, cable-entry needs and quantity. Ask DAGAO to identify the exact certificate scope and protection marking against the proposed legal entity and build variant, plus any inverter-use limitations.

What changes for an ordinary or drive-fed process motor?

For YE3, provide the fixed-frequency load and starting duty. For YVF2, include the complete speed/torque cycle, minimum cooling point and drive details. For either, request the selected model sheet, connection diagram, dimensional drawing, nameplate values, test documentation, warranty scope and delivery configuration; do not quote from the family's maximum values.

Published motor range

1 series

Company information

Company name
Zhejiang Dagao Electric Motor Co., Ltd
Chinese registered name
浙江大高电机有限公司
Region
Zhejiang, China
Record updated
2026-10-08
