Qingdao Guofang publishes motors for several textile-machine stations, not one universal ‘textile motor’. A carding-machine FO53-6, an air-jet-loom FYQG-160L and a heavy water-jet FYQG-132M differ in pole count, output choices and mechanical duty. Buyers replacing an installed unit should start with the loom or carding-machine model, its existing nameplate and mounting drawing; nominal kW alone does not establish interchangeability.

LocationShandong, China
Published catalogue4 product series
Motor families1 represented

GUOFANG · TEXTILE MACHINE REPLACEMENT

Guofang Motor: match the motor to the textile machine station

Explore the published range ↓

01 / WHERE DOES IT WORK?

Carding line or loom: identify the station before the frame

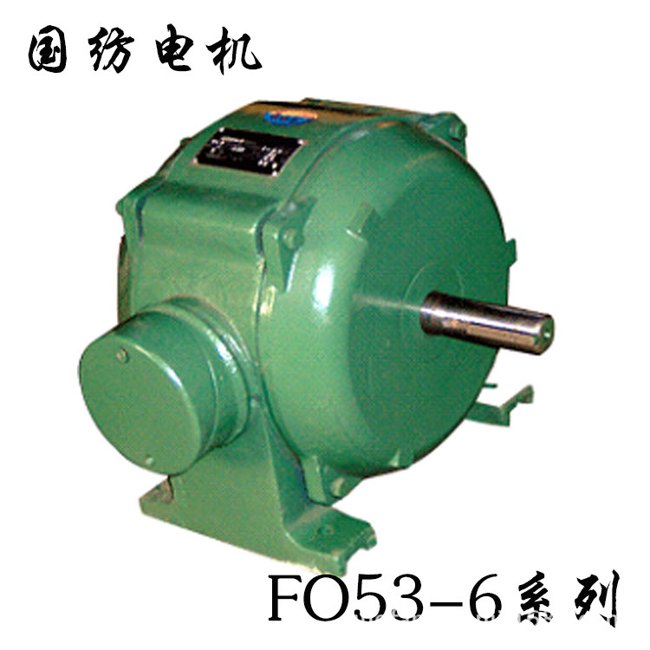

Carding machinery: FO53-6

Guofang's named FO53-6 carding motor is six-pole. The published 50 Hz catalogue gives discrete 5.5, 6.5, 7.5, 9 and 11 kW options at a stated 950 r/min. These are choices in one application family, not a continuous power range or proof of a fit on every carding machine.

Confirm before ordering Provide carding-machine make and station, current motor code, drive arrangement, shaft/flange drawing, output and process duty; select an actual listed winding.

View FO53-6 carding-machine motor →

Air-jet loom: FYQG-160L

The 160L air-jet page lists five six-pole output choices from 5.5 to 11 kW and quotes 950 r/min at 50 Hz. Although its headline ratings resemble FO53-6, the intended textile station is different; a matching power and speed pair does not prove the same enclosure, mounting or coupling.

Confirm before ordering Send loom model, coupling/shaft dimensions, duty cycle, supply and an existing nameplate; request the 160L variant drawing and starter or drive requirements.

View FYQG-160L air-jet loom motor →

Heavy water-jet or short air-jet loom: FYQG-132M

The 132M page specifies four-pole 3.0, 3.7 and 4.5 kW choices, with 1450 r/min at 50 Hz. It separately offers 415 V/50 Hz and 380 V/60 Hz custom windings. The 1450 r/min figure belongs to the stated 50 Hz data, so do not transfer it to a custom 60 Hz unit.

Confirm before ordering State whether the machine is heavy water-jet or short air-jet, mains voltage/frequency, water exposure, starting load, mounting and shaft details; ask for the actual custom-winding nameplate if used.

View FYQG-132M heavy-duty water-jet loom motor →

02 / AVOID A FALSE MATCH

Three checks matter more than a broad textile-motor label

The manufacturer's pages are useful at family level but do not publish complete fit-and-performance files for each orderable configuration. These are the points to close before approving a substitute motor.

Electrical equivalence

Match exact supply, pole count, rated current, starting method, duty and thermal protection. Guofang's 132M custom-winding options need their own rated data; frequency conversion is not a substitute for a manufacturer-confirmed winding.

Machine interface

Compare foot or flange pattern, shaft diameter/length, key, overall envelope, cable entry and cooling clearance with the installed machine. A shared FYQG family name is not an installation drawing.

Process behavior

Record the actual loom or carding cycle, starts per shift, speed changes, ambient humidity and load at startup. Ask for motor test data at the offered rating and confirm whether the machine OEM imposes additional operating limits.

03 / EVIDENCE AND NEXT STEP

Use the maker's catalogue as the shortlist, then quote the exact build

Guofang's current corporate site names 青岛国纺电机股份有限公司 and describes textile-motor manufacture in Qingdao. A 2023 Shenzhen-exchange filing independently names the same shareholding company and its business of producing energy-saving textile motors. The site also lists permanent-magnet and spindle products, but those lines are not interchangeable with the three machine-station examples above. An older government energy-efficiency list names 青岛国纺电机有限公司, a different legal-name form; without a documented name-history link it is not used here to claim a current certificate or rating for the shareholding company.

For a like-for-like replacement

Send existing nameplate, front/side photographs, machine brand and station, dimensioned shaft/mounting drawing, supply and control method, failed-unit symptoms, quantity and required delivery window. Ask which current Guofang model and drawing revision directly correspond.

For a redesign or energy project

Send measured operating power, speed and load cycle plus the machine's textile process constraints. Ask for a proposed variant and model-specific efficiency/test report under the applicable current standard; do not infer today's efficiency from a historical award or an unrelated motor family.

Published motor range

4 series

Company information

Company name
Qingdao Guofang Motor Co., Ltd.
Chinese registered name
青岛国纺电机股份有限公司
Region
Shandong, China
Record updated
2026-10-07
