Air-cooled circulation: establish what the motor actually sees
The manufacturer's catalogue has a distinct air-cooled circulating-fan family. The heading alone does not specify whether the motor, bearing housing or impeller sits inside the hot zone. For a replacement, the furnace wall penetration and thermal path matter as much as electrical input.
Confirm before ordering Send a section drawing showing the hot-face location, shaft penetration, impeller, bearing position and airflow route. State chamber temperature profile, cycle duration, available cooling air, shaft speed, supply and mounting. Request the assembly drawing and motor temperature limits for the offered configuration.
Sealed dual-water-cooled or corrosion-resistant service: define the medium
Separate official headings identify sealed dual-water-cooled and corrosion-resistant sealed circulating fans. They are different selection routes: a cooling circuit does not itself establish gas tightness or compatibility with a particular furnace atmosphere. The public category pages do not publish seal material, leakage rate, water-flow or corrosion limits.
Confirm before ordering Provide process gas and contaminants, pressure differential, acceptable leakage, coolant inlet temperature and quality, available flow and pressure, connection dimensions and failure response. Ask for the seal arrangement, wetted materials, cooling-circuit drawing and test method for the quoted unit.
Bell furnace or rapid cooling: define the control sequence

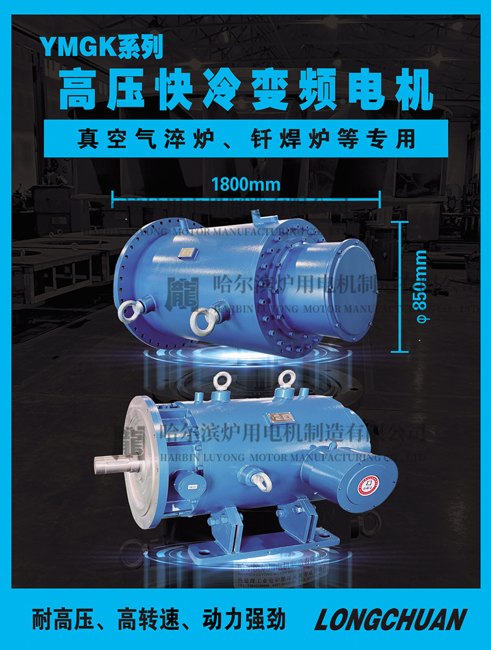

The catalogue lists a bell-furnace two-speed circulation family and a high-pressure rapid-cooling variable-frequency motor separately. A two-speed operating step and an inverter-controlled speed range are not interchangeable specifications. The existing MotorSourcing rapid-cooling entry is a family reference, not an orderable model rating.
Confirm before ordering Supply the heating, hold and cooling sequence; required gas flow and pressure at each step; acceleration and changeover times; inverter details where applicable; starts per cycle; impeller inertia; and emergency-stop behavior. Request the selected speed/torque envelope, motor-cooling method, drive pairing and dimensional drawing.
