Zhejiang Huaming presents both IEC-style motors and a separate North American NEMA range, including single-phase starting variants. For an exported machine or a replacement order, the useful first question is not just horsepower: it is whether the shaft, pilot, flange, supply and starting method match the actual installation. The manufacturer's NEMA 48 and 56C web pages show the same table dominated by 56-frame entries, so a buyer should request the exact 48- or 56C-frame drawing and nameplate instead of treating that table as proof of both fits.

LocationZhejiang, China
Published catalogue4 product series
Motor families1 represented

HUAMING · NEMA AND IEC MOTOR FIT

Huaming Motor: verify the NEMA frame and mounting before a quote

Explore the published range ↓

01 / FRAME BEFORE HORSEPOWER

Pick the motor standard and the mounting interface first

NEMA 48 or 56C, three-phase: drawing is decisive

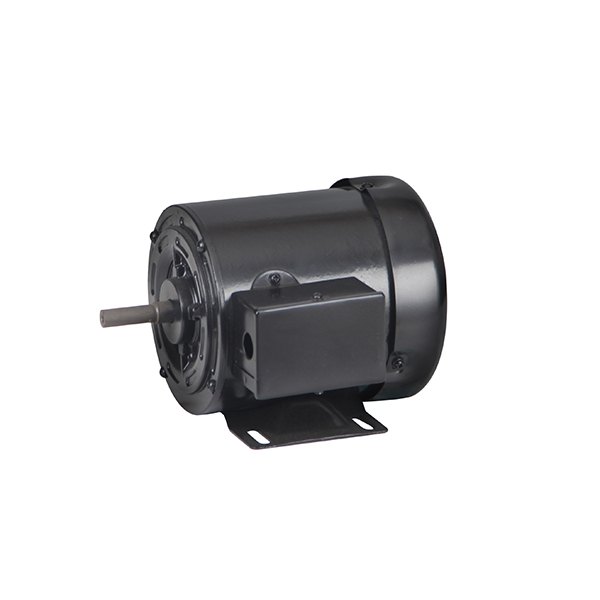

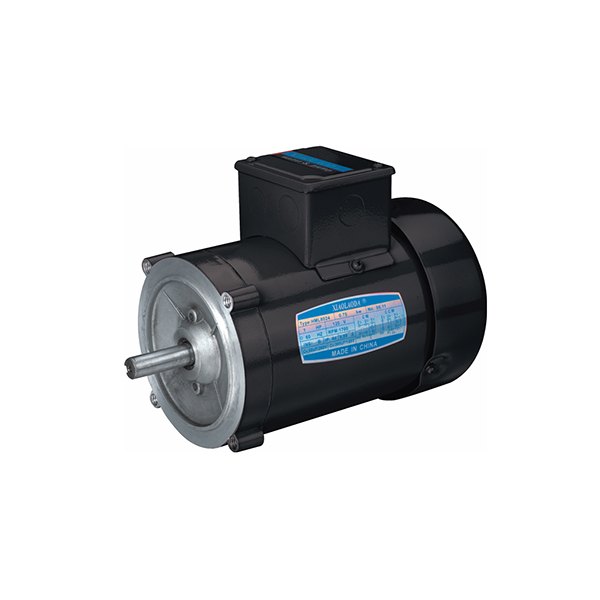

Huaming's Chinese site has separately titled NEMA 48 three-phase and NEMA 56C three-phase pages. Both currently display a nominal 208–230/460 V, 60 Hz table with rows headed 56 and 56H rather than a clearly separated 48-frame schedule. The shared text describes compressor and small-machine-tool uses, but it cannot establish whether a specific 48-frame housing has a 56C-style face, pilot or shaft. Decide the required frame and flange from the machine, then ask which drawing belongs to the offered motor.

Confirm before ordering Send existing NEMA frame, face/pilot/bolt circle, shaft diameter and key, foot or C-face mounting, horsepower, pole/speed, 60 Hz supply and starter/drive method. Request the offered unit's dated outline and nameplate.

View NEMA 56C three-phase motor →

NEMA single-phase: starting design is its own choice

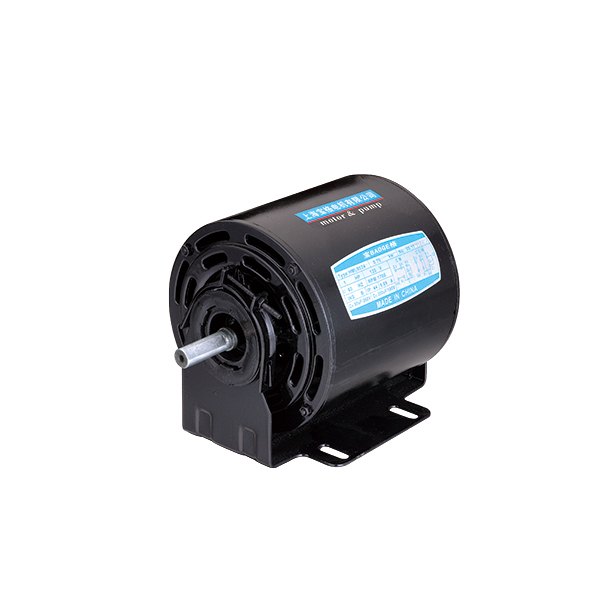

The official catalogue separates NEMA single-phase products from three-phase products and lists resistance-start, capacitor-start/run and other forms. Its NEMA 48 resistance-start page presently offers a product label but no readable performance table. A pump or compressor with high breakaway torque cannot be assigned a starting method from frame size alone; the application must specify load torque, supply and duty so the supplier can choose the appropriate winding and switching arrangement.

Confirm before ordering State 115/230 V or other supply, frequency, locked-rotor and running load, starts per hour, direction, capacitor or switch constraints, enclosure and motor replacement dimensions. Request a model-specific starting-torque/current and wiring sheet.

IEC-style B14/B3/B5: confirm the actual housing

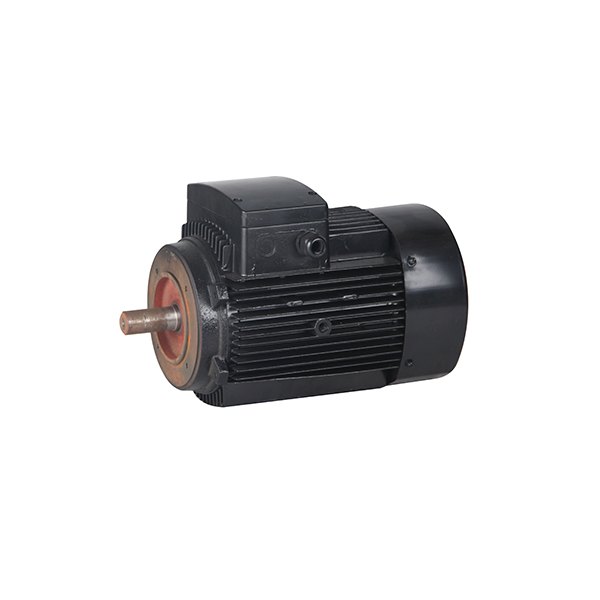

Huaming also publishes three-phase B14-flange, B3-foot and B5-flange entries across its iron and aluminium motor menus. A B14 title establishes a mounting intent, not a universal shaft or pilot size. The cast-iron B14 page is largely a labelled catalogue entry without a readable model table; it should be handled as an engineered fit check rather than a dimension-certified replacement based on the page title.

Confirm before ordering Send IEC frame size, B14 pilot and bolt circle, shaft/key, foot position if any, voltage and frequency, duty and enclosure requirement. Ask for the current drawing and a named model with the same housing material and mounting form.

02 / TWO TABLES, MANY DIFFERENT BUILDS

Separate electrical compatibility from mechanical interchange

Does a 60 Hz row apply at the installation?

The public NEMA three-phase table is written for 60 Hz and 208–230/460 V. If the machine operates on 50 Hz, a different supply or a variable-frequency drive, seek the appropriate electrical rating, speed and thermal statement for the offered model. Do not carry a 60 Hz rpm straight into a 50 Hz procurement document.

Is the table matched to the page title?

The NEMA 48 and 56C pages repeat 56/56H-frame rows, including 3450, 1725 and 1120 r/min examples. That gives a clue to available 60 Hz design points, but it does not prove each row belongs to a 48-frame machine or that all horsepower entries fit the same C-face. Ask Huaming to mark the exact row and supply a matching mechanical drawing.

Is the starting circuit part of the replacement?

For single-phase motors, resistance-start and capacitor-start/run forms are different purchases even if the envelope appears similar. Check starting load, thermal protection, switch/capacitor arrangement and wiring before approval; a product title alone is not a complete electrical specification.

03 / RFQ THAT CAN BE CHECKED

Make the supplier identify one build, not a catalogue family

Huaming's own English and Chinese sites identify Zhejiang Huaming Electric Motor Co., Ltd. in Wenling and show both NEMA and IEC-style motors, as well as pumps. A separate supplier marketplace lists the same legal company and motor categories, but its specifications and company-size fields are supplier-submitted, so the order should rely on Huaming's current model documents.

For a replacement

Send the old nameplate, front and side photographs, flange/foot and shaft measurements, machine drawing, supply and starting equipment. Request the new motor's exact code, current outline, wiring, performance curve, protection and test report relevant to the offered item.

For a new export design

Specify destination supply and machine rules, required NEMA or IEC frame, insulation, enclosure, duty, mounting, ambient, direction and accessory needs. Ask which data apply at 50 or 60 Hz and whether the supplier's drawing corresponds to the exact production version.

For buying across NEMA and IEC catalogues

Do not use a horsepower-to-kW conversion as an interchange verdict. Compare bolt circle, pilot, shaft height and length, base and face pattern, terminal box, operating temperature and starting method; approve a build only after the mechanical and electrical sheets agree.
