Oubang's catalogue spans small AC gearmotors, DC drives for floor-cleaning machines and separate planetary reducers. The first choice is the output task: brush, wheel, fan or precision axis. Then specify its load and mounting interface.

LocationJiangsu, China
Published catalogue1 product series
Motor families1 represented

DONGTAI · GEARED MOTION AND CLEANING-MACHINE DRIVES

Oubang Motor: choose a gearmotor by output duty, not motor wattage alone

Explore the published range ↓

01 / CHOOSE THE MACHINE INTERFACE

A brush, a vehicle wheel and a positioning axis are different enquiries

Compact AC gearmotor: define the ratio and direction

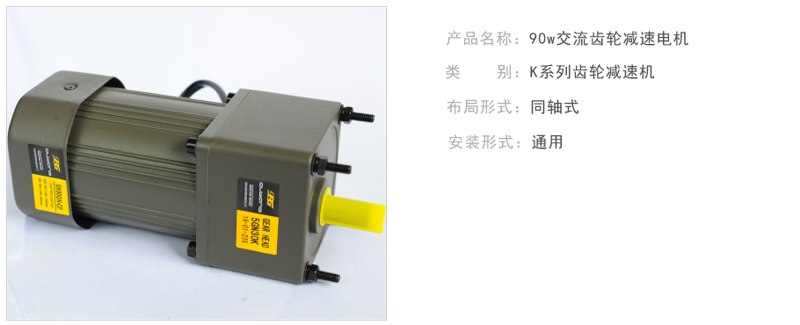

The manufacturer's small-AC catalogue includes a 90 W speed-control gearmotor advertised for mask-making equipment and a separate 120 W family with distinct fixed-speed and variable-speed order codes. Its 90 W page contains a specific caution to change a single-phase motor's direction only after stopping. A wattage label alone says nothing about output-shaft speed, available torque after reduction, flange geometry or the controller included in a quote.

Confirm before ordering Send the output-shaft duty cycle, required rpm and starting torque, supply and phase, reduction ratio, shaft and mounting drawing, direction-change sequence and any required speed controller. Ask for the selected motor-plus-gearhead code and its rated output curve rather than assuming every 90 W assembly is interchangeable.

View 90 W speed-control AC gearmotor →

Cleaning-machine DC drive: identify the actual load

Oubang separately lists a side-brush drive, a scrubber brush-disc motor and a sweeper fan motor. The side-brush title mentions 36 V or 48 V and 60 W or 90 W, but those are listing alternatives, not one confirmed combination. Brush contact torque, traction load and fan airflow impose different start, sealing and thermal requirements; a generic DC-motor quote would hide the interface difference.

Confirm before ordering State whether the part drives a side brush, scrub deck, wheel or fan; supply machine voltage range, brush or wheel diameter, load and stall events, enclosure/ingress conditions, shaft coupling and available cooling. Ask for the exact order code and a test at the complete-machine operating point.

Precision axis: quote the reducer and motor as separate boundaries

The site shows PF/PL inline planetary reducers, an AD142 helical planetary model and an ABR090 right-angle planetary model. Their titles establish different geometries, but the accessible pages do not publish a complete backlash, ratio, torque and bearing-load table. The Dongtai market regulator's 2024 proposed project list names Oubang for high-efficiency, high-precision planetary-reducer development; that listing is not an approval of every current reducer.

Confirm before ordering Provide motor frame and pilot, input speed, required ratio, continuous and peak output torque, reversal frequency, allowable backlash, radial/axial load and right-angle space constraints. Request the exact reducer drawing, test conditions and version-specific backlash and bearing limits.

02 / CHECK WHAT IS ACTUALLY SPECIFIED

The public catalogue is a selection map, not a final rating sheet

One legal company, several drive architectures

The manufacturer's site identifies Jiangsu Oubang Motor Manufacturing in Dongtai and separates miniature AC geared units, medium AC gearmotors, permanent-magnet DC motors and planetary reducers. The Dongtai government's 2024 research-project notice independently names that same company for planetary-reducer development. It supports identity and technical direction, not site-wide production volume, certification or a buyer's specific part performance.

Do not combine figures from separate listings

The 120 W AC page lists multiple 5IK and 6IK codes, fixed-speed and adjustable-speed variants. The cleaner side-brush page presents alternative voltage and wattage labels in its title. Neither is an orderable bill of material with all gearhead, controller and test conditions fixed. A buyer should select one exact code and request the current revision before comparing suppliers.

Safety instructions are not performance evidence

Several AC detail pages repeat the same operating and handling cautions instead of a model-by-model torque-speed table. Those warnings are useful for commissioning, but cannot establish suitability for high-inertia starts, a sealed washdown enclosure or a particular reducer ratio. Require the actual nameplate, dimensional drawing and measured data for the quoted assembly.

03 / MAKE THE RFQ TESTABLE

Ask for one configured drive and one acceptance test

What is included in the price?

Identify whether the offer is a bare motor, motor with gearhead, reducer alone, speed controller or fully matched drive. Attach a mechanical interface drawing and name the required electrical supply. An apparently cheaper gearbox without an adaptor or controller is not a like-for-like comparison.

Where must it work continuously?

Give the output speed and torque at the actual machine load, starts and reversals per hour, ambient and enclosure temperature, wet or dusty exposure and expected duty. For a brush machine, test brush load and stall recovery; for a positioning axis, test reversal accuracy and backlash; for an AC conveyor, test start, speed control and stop sequence. Agree the sample test, documentation revision and acceptance limits before ordering volume.
