MOTOR MANUFACTURER · Zhejiang, CHINA

Jiaxue Motor

Jiaxue's own catalogue has separate pages for ventilation-fan, ceiling-fan, pump and geared motors, plus powered rollers and controllers. The public item pages give a family label and the same broad company paragraph, not a model-level rating table. A useful RFQ should begin with the driven assembly and its mechanical and control interface.

LocationZhejiang, China
Published catalogue3 product series
Motor families2 represented

HUZHOU · APPLICATION-SPECIFIC SMALL MOTORS

Jiaxue Motor: separate airflow, ceiling-fan and geared-drive requirements

Explore the published range ↓

01 / APPLICATION CHOICE

A fan, pump and conveyor do not buy the same motor by nameplate power alone

Ventilation or ceiling fan: identify the rotating load

Jiaxue lists ventilation-fan and ceiling-fan motors on separate catalogue pages. The distinction matters because impeller or blade geometry, mounting height, balancing and speed control differ. The site does not publish a comparable torque-speed or thermal table for either page, so a buyer cannot infer one fan motor fits the other assembly.

Confirm before ordering Attach fan/blade drawing, diameter and inertia, intended speed range, airflow duty, supply and controller, mounting and shaft interface, acoustic target, operating hours and ambient. Ask for the exact motor code, temperature-rise basis and assembly test conditions.

Pump drive: check the wet-end coupling and duty

A separate water-pump motor page confirms the catalogue category but gives no readable shaft seal, wet-end coupling or winding-rating data. This is a motor procurement route, not proof that the complete pump, hydraulic performance or liquid-contact components are supplied with it.

Confirm before ordering Send the pump curve and required shaft power across the duty range, impeller and seal interface, starting method, immersion or splash exposure, supply, cable routing and mounting drawing. Request unit-specific electrical and mechanical data.

Geared drive or powered roller: define output-side motion

The catalogue separates a geared motor, a larger geared-motor heading and an electric roller. These headings do not disclose the actual ratio, torque, roller diameter or service factor of a chosen unit. A conveyor replacement should be specified from belt speed, roller load and start/stop pattern rather than by appearance of the gearbox casing.

Confirm before ordering Provide driven speed and torque, conveyor or mechanism load, overhung load, shock and reversals, output shaft or roller dimensions, brake need, mounting, lubrication orientation, available envelope and duty cycle. Require one complete configuration code and drawing.

02 / CATALOGUE LIMITS

The published categories establish scope, not an approved configuration

Independent identity versus company claims

The manufacturer's site identifies Zhejiang Jiaxue Micro & Special Motor Co., Ltd. and lists the product families. A Zhejiang science department document naming its enterprise research institute separately confirms the legal entity's motor-related activity. The company's founding year, floorspace, staff count, application sectors and quality accolades are self-reported on the site and are not used here to imply capacity or qualification for a particular order.

Individual product pages need a revision-controlled data sheet

The inspected fan, pump, geared and roller item pages repeat the same generic company text, with no readable model table, dimensional drawing or duty-specific test results. Therefore the existing three catalogue entries remain broad family pointers; no kW, torque, ratio, IP class or certification has been assigned to an individual Jiaxue motor from these pages.

Controller and motor must be specified together

The catalogue also names an electronic variable-speed controller separately. It does not demonstrate that every fan, pump or geared motor is compatible with that controller. Where speed adjustment is needed, request the actual motor-controller pairing, control range, thermal limits at low speed and wiring/EMC instructions.

03 / REQUEST EVIDENCE

Make the manufacturer quote an actual assembly

What should travel with the RFQ?

State the end machine and whether the order is a bare motor, geared assembly, roller or motor plus controller. Include nameplate of any replacement, shaft/flange drawing, load and speed profile, starts per hour, duty and ambient, available space, supply and control method, quantity and schedule. For a fan include blade and acoustics; for a pump include the hydraulic duty; for a roller include diameter and belt load.

What documents should come back before tooling or sampling?

Ask for the exact part and option code, rated electrical and output data under stated conditions, motor/gear or roller drawing, material and finish where relevant, thermal and acoustic test method, motor-controller compatibility and sample acceptance plan. Do not approve a replacement only because both catalogue pages say 'fan motor' or 'geared motor'.

Published motor range

3 series

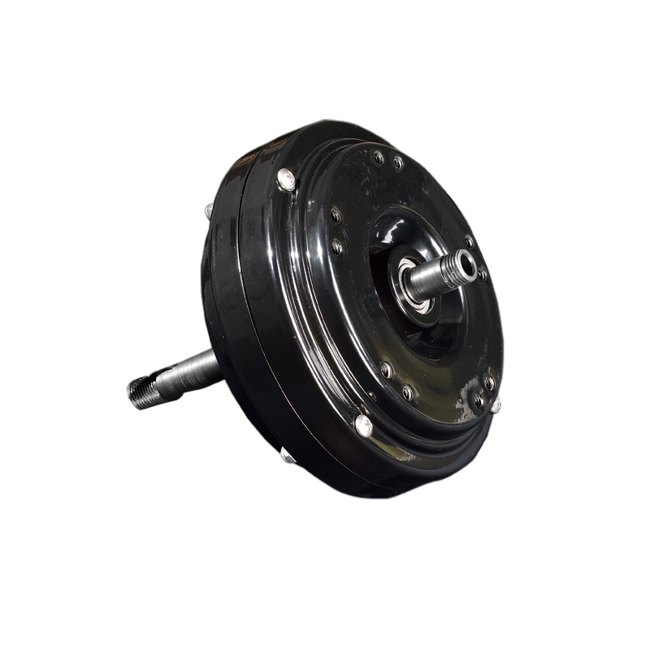

Ceiling-fan motor

Ceiling-fan motor

Ask about this series and the configuration that fits your application.

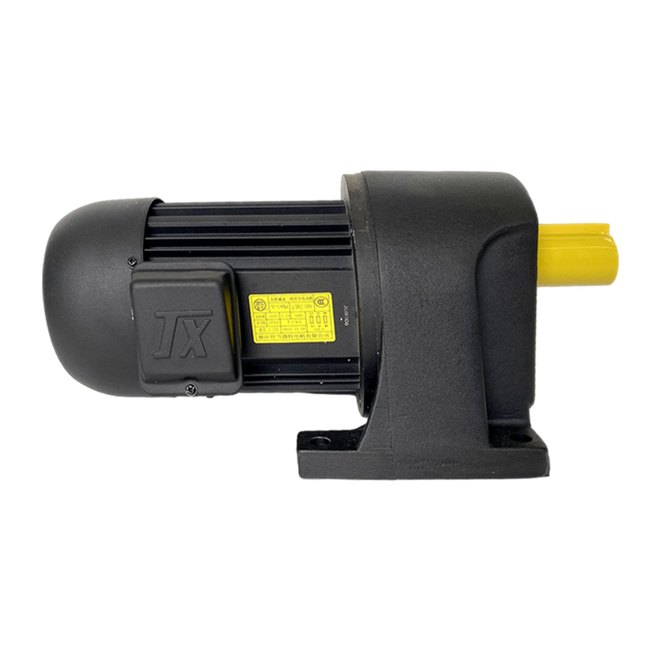

Large geared motor

Large geared motor

Ask about this series and the configuration that fits your application.

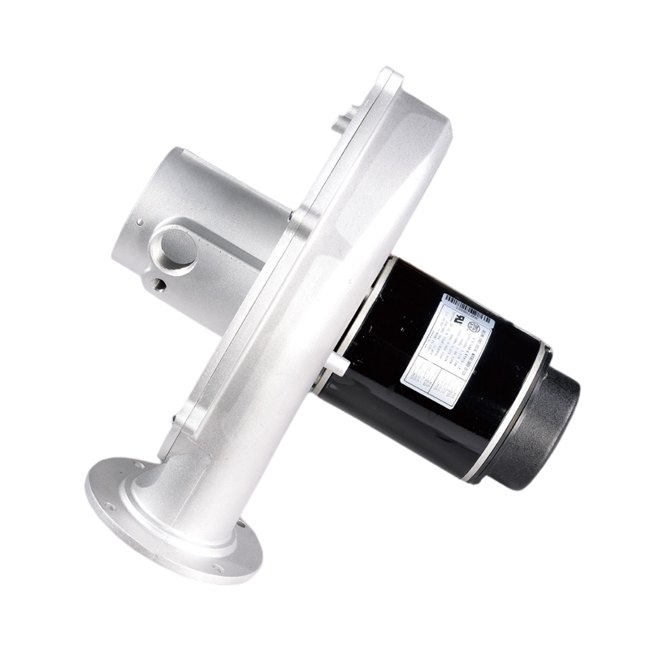

Ventilation-fan motor

Ventilation-fan motor

Ask about this series and the configuration that fits your application.

Company information

Company name
Zhejiang Jiaxue Micro & Special Motor Co., Ltd.
Chinese registered name
浙江佳雪微特电机有限公司
Region
Zhejiang, China
Record updated
2026-10-08
