Fuzhou Jingang's catalogue spans compact brushless motors, drive electronics and reduction products. Two useful but different buying routes are the 130-frame BD/BM brushless family and the DM90 motor offered for hydraulic power units. The published tables list alternative voltage, power and speed points, but leave some current, torque and length cells blank; request the selected variant's complete sheet rather than combining range endpoints into a supposed ready-to-order motor.

LocationFujian, China
Published catalogue2 product series
Motor families2 represented

KINKOPOWER · COMPACT BRUSHLESS DRIVES

KINKOPOWER brushless motors: separate 130-frame and hydraulic-drive briefs

Explore the published range ↓

01 / TWO DIFFERENT SYSTEMS

The 130 frame and DM90 hydraulic unit need different briefs

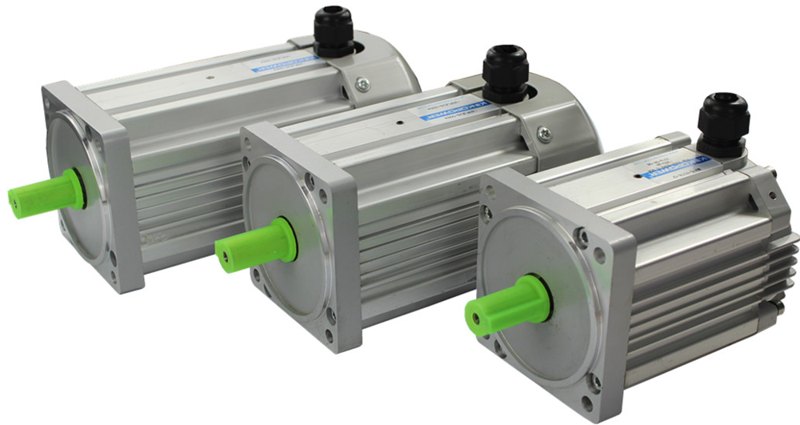

130-frame BD direct-current brushless motor

The manufacturer's BD130 table lists five distinct codes from BD130-750-4820 through BD130-3000-9630. Their listed output powers run from 750 W to 3,000 W, with 48/96 VDC options on some codes and 96 VDC on the larger two. One 750 W row shows 2,000/3,000 rpm and 3.58/2.38 Nm as alternatives; the 3,000 W row shows 3,000 rpm and 9.55 Nm. Those are separate rated points, not one motor's simultaneous envelope. Feedback choices in the table include none, Hall and magnetic encoder.

Confirm before ordering Specify the exact BD130 code, one selected voltage and rated speed, load torque over the speed range, controller current limit, feedback/commutation, shaft, mounting, cooling and braking requirement. Request the complete current, thermal and dimension sheets before mechanical release.

View 130-series brushless motor →

130-frame BM motor with a different supply architecture

On the same manufacturer page, the BM130 table is a separate 220 VAC-supply listing with codes from BM130-1.1-30 to BM130-4-40 and outputs from 1.1 to 4 kW. It also publishes a BM code explanation that distinguishes frame, speed, feedback and brake suffixes. The source does not establish that a BD motor and a BM motor share a drive or wiring arrangement simply because both carry a 130-frame label.

Confirm before ordering Ask which inverter/driver and mains or DC-bus arrangement the quoted BM package actually needs. Confirm connector, feedback protocol, brake voltage and holding data, shaft key, mounting dimensions, rated speed and duty at the chosen code.

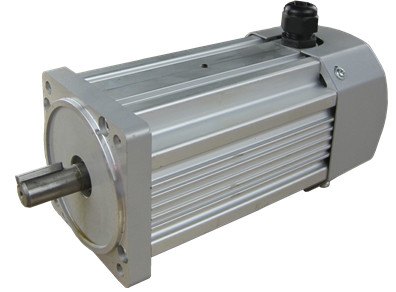

DM90 for a hydraulic power unit

The DM90 page describes a motor front-end integrated with a hydraulic valve block for compact power units. Its DM90 table names 200, 300, 400 and 500 W codes and 12/24 VDC or 24/48 VDC alternatives, with a 300–3,000 rpm variable-speed band. It separately lists a DM130 hydraulic route at higher outputs. Blank current, torque, length and weight cells prevent a complete pump-set selection from the public page alone.

Confirm before ordering Provide pump displacement, required flow and pressure, start-under-load case, battery voltage and sag, hydraulic schematic, valve-block port and mounting interface, oil temperature, number and duration of lifts, and controller limits. Request one motor-pump-block drawing and a guaranteed duty point.

View DM90 hydraulic-system motor →

02 / BEFORE AN ORDER

Close the electrical, control and mechanical interfaces together

Which controller is being supplied or reused?

For the selected BD, BM or DM route, state whether the supplier includes the driver. Request input range, peak and continuous current, feedback wiring, control signal, protection functions and software parameters for the chosen winding. A motor-only price is not a complete drive-system quote.

What shaft or hydraulic interface is fixed?

The 90-frame page says output shaft diameter and length can be customised; the DM90 page says the integrated valve block is optional by requirement. Supply keyed shaft and bearing-load drawings for a mechanical drive, or the pump and valve-block interface drawing for hydraulic equipment. Confirm whether customisation changes lead time or test scope.

Which duty definition applies to a lifting application?

The DM90 page prints 'S3' and '30 min' but does not define the complete operating cycle or thermal limits in its readable table. Give lift count, on/off times, pressure profile, enclosure temperature and expected service interval; ask for a written rated duty and temperature-rise test at the actual voltage and pump load.

How will alternatives be compared?

Request each quote against one selected model code and operating point, with dimensions, weight, efficiency, continuous and peak current, controller, connector, feedback and test record. Several public table cells are empty, so a catalogue range alone is not an acceptance sheet.

03 / AVOID FALSE SPEC COMBINATIONS

One column and one rated point at a time

Frame size is not a complete performance promise

The site groups 060, 090 and 130 brushless families under a wider permanent-magnet programme, with separate BD and BM tables. Frame labels are an ordering aid; power, speed, voltage and feedback must be taken from the same exact row/column and confirmed on the current revision of that model's sheet.

Do not infer blank ratings

The 130 and DM90 pages include empty current or dimensional cells. The 090 page also shows multiple speed/torque alternatives and some formatting anomalies. This profile uses only legible, model-attributed points and does not calculate or borrow missing current, shaft length, efficiency or thermal performance.

Hydraulic motor selection is a system calculation

A pump load depends on pressure, displacement, efficiency and duty. The motor's published output-power column does not itself prove a flow-pressure point or a full vehicle-lift rating. A buyer should align pump, valve block, wiring, battery and motor with a supplier-approved system curve.

04 / SOURCE CONTEXT

The company's product pages establish range; purchase needs a current revision

Company scope

Fuzhou Jingang identifies itself as a motor and intelligent-drive business and lists brushless and servo motors, controllers and reduction equipment. The 130-frame and DM90 programme above comes from named product pages rather than a generic industry list.

What still requires supplier confirmation

The catalogue does not provide a complete specification for every listed variant, nor a guaranteed motor-pump operating point. Ask for the selected code, date and revision of the datasheet, dimensioned drawing, controller match and test evidence before treating the public table as an order specification.
