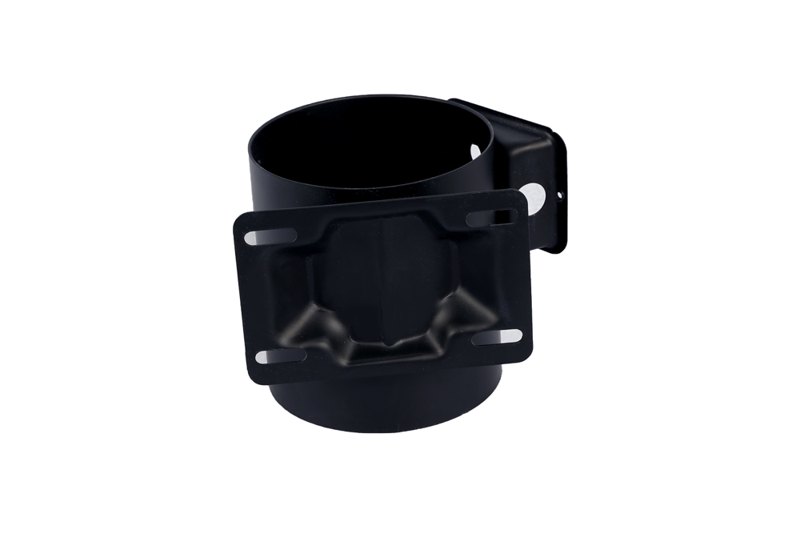

Fan cover: protect the fan without restricting its air path
The manufacturer's catalogue separates ordinary motor fan covers from a G-series variable-frequency-cover range. Its cover list also names pump, weather-cover and Y/YT-style applications. These are category and fit clues, not a published airflow or ingress rating. A cover that clears the fan mechanically can still obstruct intake or conflict with a rain shield.
Confirm before ordering Send the motor or pump manufacturer's outline, old cover photos, fan outside diameter, axial clearance, fixing-hole circle, mounting orientation and airflow direction. State outdoor rain, dust or washdown exposure and request the proposed cover's dimensioned drawing and material/finish.
Motor shell or pump part: inspect the mating surfaces
NORSSEN lists a steel motor-cylinder range and a separate aluminium-housing/pump-parts category. Neither category page provides a complete public machining tolerance or cast-material schedule. These parts need the flange, bearing-seat and fastener interfaces checked as a set, not selected from a photo of a similar frame.
Confirm before ordering Attach the full housing or pump assembly drawing with datum surfaces, bore/seat tolerances, material and coating, mounting feet/flange, cable entry and expected process conditions. Ask for a sample inspection against critical dimensions.
Terminal or capacitor box: route wiring and sealing first
The accessory list identifies an integrated capacitor box, a YC square box and boxes described for Y, Y2, YEJ, YT and YC families. The pages show these as accessory names and images but do not supply a universal terminal layout or enclosure test. A familiar series label does not confirm cable-entry position, capacitor volume or connector clearance.
Confirm before ordering Give the terminal-board and capacitor drawing, cable direction and gland size, required creepage/clearance, seals and operating environment. Request a current material specification, sample fit check and the exact box revision.
