MOTOR MANUFACTURER · Jiangsu, CHINA

Qidong Datong

Qidong Datong lists construction-hoist motors, motor-reducer drive units and larger transmission assemblies as different supply levels. Its motor catalogue also separates line-frequency and several inverter-fed ranges. Start by identifying exactly which assembly the project needs, then compare braking, interface and operating duty on one signed drawing.

LocationJiangsu, China
Published catalogue2 product series
Motor families2 represented

QIDONG DATONG · CONSTRUCTION-HOIST DRIVES

Qidong Datong hoist drives: specify motor, brake, reducer or full assembly

Explore the published range ↓

01 / WHAT IS BEING QUOTED

Motor, drive unit and transmission mechanism are not the same item

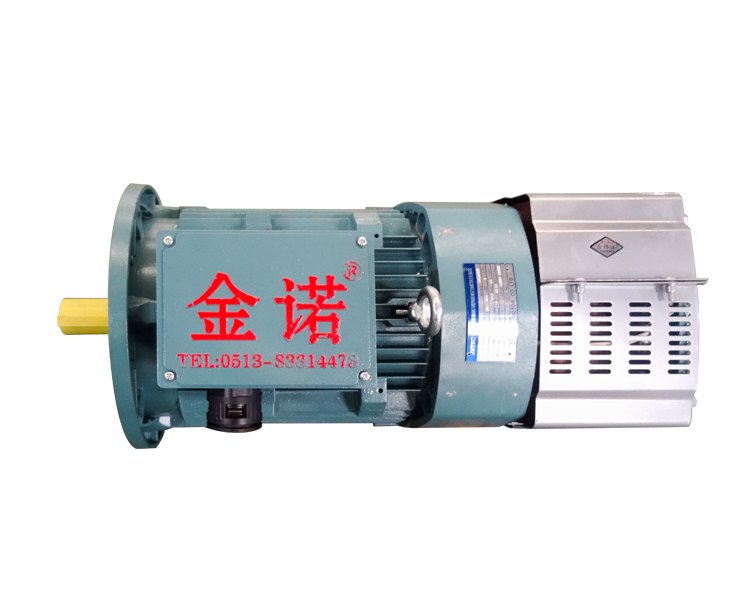

Motor and electromagnetic brake

The company's motor category describes a three-phase induction motor with an electromagnetic brake for construction hoists. It groups ordinary line-frequency, ordinary inverter, standard inverter and high-efficiency inverter ranges separately, with catalogue identifiers such as 11011, 11021, 11031 and 11041. These identifiers are not an interchangeable electrical specification. Headings including 120 Nm or 175 Nm need a current datasheet to clarify exactly which torque, brake or assembly rating the number denotes.

Confirm before ordering Quote the hoist model, required motor speed and shaft torque, mains/inverter supply, start-stop cycle, brake holding and stopping requirements, mounting, feedback and ambient conditions. Request the complete motor and brake code with a dimension and wiring drawing.

View Construction-hoist electric motor →

Drive unit: motor plus reducer and output gear

The manufacturer's drive-unit page explicitly describes a motor and reducer joined by a selected coupling arrangement, usually with an output gear. It states that configuration influences rated hoist load, travel speed and efficiency. Its line-frequency, variable-frequency, dual-brake and higher-speed options are separate assemblies; a motor-only quote cannot be compared directly with a drive-unit quote.

Confirm before ordering Provide reducer ratio and mounting, output pinion or gear geometry, required cage load and travel speed, brake count, interface to the existing drive frame and lubrication/service requirements. Ask for one bill of materials and output-speed/torque data at the assembled unit.

Transmission mechanism: several units on a frame

A third company page defines the transmission mechanism as multiple drive units fixed to a transmission plate and drive frame, connected to the cage structure. It lists different line-frequency, variable-frequency and dual-brake families. Selecting this scope means the order must specify frame, number of units, gear engagement, load-sensing interface and the safety equipment included or excluded.

Confirm before ordering Request the full assembly drawing, mounting points, load path, number of drive units, brake arrangement, electrical controls, overload/load-sensing interface and clear exclusions. Do not infer that every drive mechanism includes the separate safety device.

02 / SAFETY-CRITICAL PROJECT INPUTS

A construction-hoist replacement must match the full duty and stopping case

Which operating cycle and load set the motor size?

Give the cage rated load and own mass, travel speed, trips per hour, acceleration and regenerative or lowering duty, rack-and-pinion geometry, ambient temperature and available supply. For inverter-fed options, provide the converter model, speed range and low-speed cooling arrangement. A family label cannot show continuous thermal suitability.

What exactly is the brake expected to do?

State static holding load, stopping distance and time, emergency and normal stop frequency, manual release method, wear allowance and inspection interval. Request the selected brake's rated holding and dynamic performance with the actual motor/reducer combination, plus the control sequence and test procedure.

Which documents and tests close the replacement decision?

Ask for a signed motor or assembly code, dimensioned interface and shaft drawing, wiring and brake control diagram, motor test data, brake test record, reducer ratio and assembly bill of materials, and installation/maintenance instructions. Confirm the equipment-level approvals required by the destination jurisdiction separately from component catalogue language.

03 / WHAT HAS AND HAS NOT BEEN ESTABLISHED

The product architecture is clear; each numbered variant still needs its current sheet

Independent company-name cross-check

The manufacturer's site identifies 启东大同电机有限公司 and shows a construction-hoist motor and drive-system catalogue. A dated Jiangsu public enterprise list names the same Chinese company. That list confirms an entity name at the publication date; it does not certify a particular hoist motor, brake or integrated assembly.

Different labels need different drawings

The motor-category page lists multiple torque-labelled entries, while individual item pages expose headings for parameter tables, CAD and mounting sizes without all values as readable text. The drive-unit and transmission pages establish distinct assembly boundaries. This profile deliberately does not combine a motor label, reducer family and mechanism speed into an invented single product.

Published motor range

2 series

Company information

Company name
Qidong Datong Motor Co., Ltd.
Chinese registered name
启东大同电机有限公司
Region
Jiangsu, China
Record updated
2026-10-07
