MOTOR MANUFACTURER · Shanghai, CHINA

Shanghai Shangzhen

Shanghai Shangzhen Vibrator Motor makes eccentric-force drives for screens, feeders and other vibration equipment. Its current company site distinguishes horizontal YZO, vertical YZL, ore-feeder YZF and other families. These are not selected by motor kW alone: the required stroke, operating frequency, supported mass, direction of motion and mounting stiffness determine how the vibrator works in the complete machine. The company's own and exhibition descriptions disagree on a YZO family force limit, so the exact offered model must be checked against a current table and drawing.

LocationShanghai, China
Published catalogue4 product series
Motor families1 represented

SHANGHAI SHANGZHEN · VIBRATION DRIVE SYSTEMS

Shanghai Shangzhen: size vibration motors by machine motion

Explore the published range ↓

01 / DEFINE THE MACHINE BEFORE THE MOTOR

Horizontal, vertical and ore-feeder drives solve different motion tasks

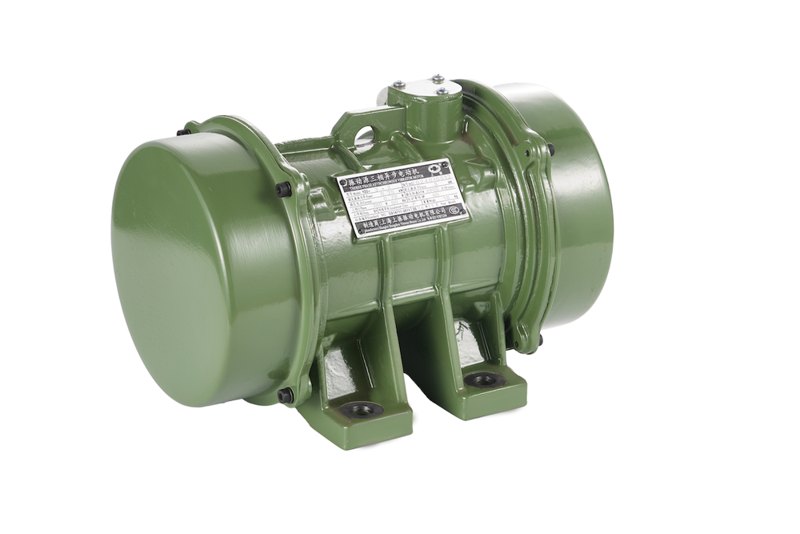

YZO horizontal exciter for a screen or feeder

The manufacturer's YZO category describes a horizontal vibration motor used on feeders, screens, conveyors, shakeout machines, drying equipment, tables and bin-flow devices. It lists two-, four-, six- and eight-pole subfamilies. Pole count changes the vibration frequency and therefore the machine's response; selecting a large centrifugal-force label without checking stroke, supported mass and structural resonance can underperform or damage the machine. A pair of motors also needs the intended counter-rotation and phasing for a linear-motion design.

Confirm before ordering Send the deck/trough mass including material, desired amplitude and frequency, process throughput, mounting angle, centre-to-centre spacing, bolt pattern and structure drawing. Ask for exact YZO model, rated force and adjustable eccentric-weight range, speed, power/current, duty and assembly instructions.

View YZO vibration motor →

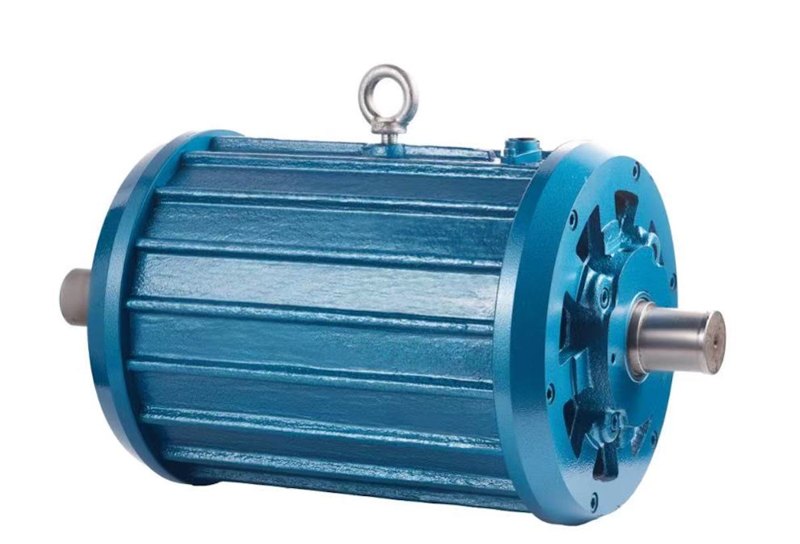

YZL vertical motor for rotary or compound motion

The company's YZL page describes a vertical motor whose exciter force enters the machine through a conical mounting interface, producing combined rotary and spatial rocking motion. It names vibrating screens, grinding, finishing and mixing equipment as use cases. This is a different layout from side-mounted horizontal YZO: upper/lower eccentric settings, the cone/interface and machine support determine the motion path.

Confirm before ordering Provide bowl or screen diameter, supported mass, process material, target orbital motion, current eccentric settings, mounting cone and flange dimensions, spring system and duty. Request a YZL-specific outline and adjustment procedure, not a YZO footprint substitution.

View YZL vertical vibration motor →

YZF ore feeder and side-plate arrangements

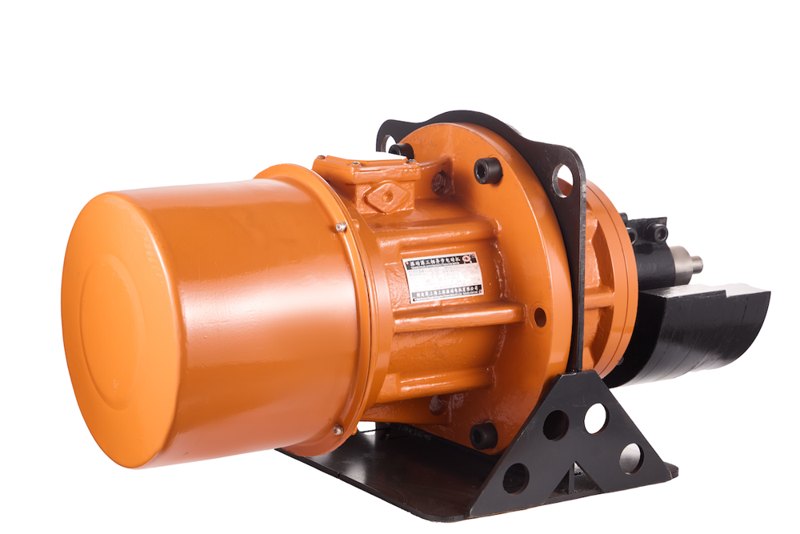

Shangzhen describes YZF as a specialist drive for heavy ore-feeder conditions, with four- and six-pole versions shown on its site. The separate YLD side-plate family appears in its trade-show exhibitor range, but a current model-level YLD datasheet was not available from the reviewed company navigation. Heavy feeder loads, side-wall mounting and impact duty require a structural check rather than assuming every general YZO or YLD card is interchangeable.

Confirm before ordering Send feeder capacity and bulk density, impact loading, required stroke and frequency, side-plate thickness and stiffness, reinforcing layout, base/weld condition and process dust/ambient. Request the offered YZF or YLD model table, force vector, dynamic loads and signed installation drawing.

02 / KEEP THE FAMILY CLAIMS BOUNDED

A force range and a motor power range are not a selection chart

The YZO force ceiling conflicts between two public descriptions

The company's category page describes a YZO family force span up to 400 kN, while its bauma CHINA exhibit description says up to 700 kN. Neither statement identifies an exact model or operating condition. This profile deliberately does not present either as the current ceiling. Confirm the series revision and obtain the specific model's adjustable-force limits, eccentric setting diagram and motor rating.

Existing product-card power bands need a model table

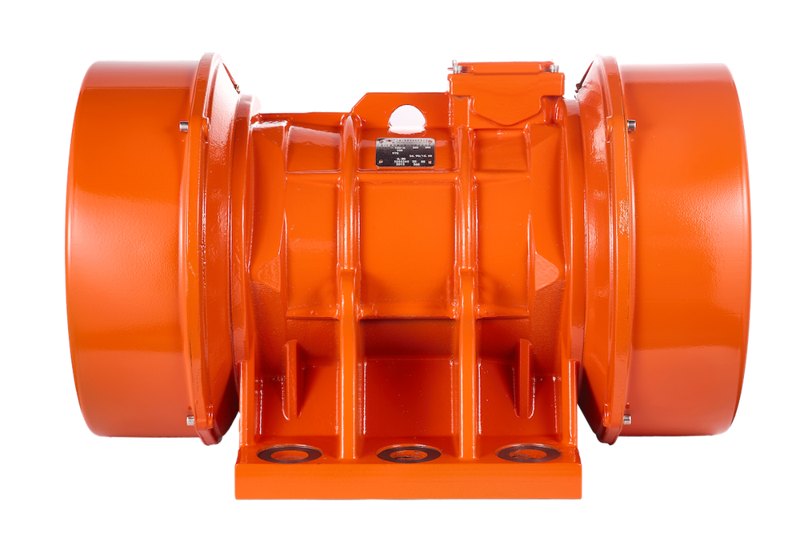

The current MotorSourcing cards display broad kW and 380 V fields for YZO, YZL, MVE and YLD. The reviewed manufacturer pages do not publish readable row-level tables sufficient to validate those bands across all poles, configurations and markets. Do not place them in a purchase order as if each value describes the selected motor. Request a manufacturer datasheet for the precise pole count and variant.

Hazard claims need the current marked unit

The company site markets a separate explosion-protected vibrator family and mentions historical certification, but the visible text does not establish a current exact-model gas or dust marking and certificate for the offered drive. Quarry, coal, chemical and food-dust installations have different classification and surface-temperature requirements. Ask for the motor nameplate, certificate scope, cable-entry/guard arrangement and site classification before use.

03 / VERIFY THE COMPLETE VIBRATING MACHINE

Make the quote testable at the actual process load

For vibration equipment, the motor is one component in a moving structure. A useful quote states the selected exciter force and speed, but also proves that the springs, welds, fasteners and process duty can sustain the resulting dynamic load.

Describe the process

State screening or feeding duty, material density/moisture and feed distribution, target throughput, permitted carryover, operating temperature and dust, intended stroke/frequency and maximum loaded mass. Include a video and measurements of the current machine if replacing an exciter.

Fix the mechanical interface

Send deck and support drawings, mounting orientation, bolt grade/pattern, stiffeners, spring rates, adjacent resonance bands, bearing access and cable routing. For two-motor drives, specify rotation and synchronisation arrangement. Request installation torque and eccentric-weight setting instructions.

Accept against measured operation

At no-load and representative load, check acceleration, amplitude, frequency, bearing and winding temperature, frame vibration, noise, bolt movement and process throughput. Record the exact motor suffix, setting, supply, duty, inspection interval and warranty boundary before repeat orders.

Published motor range

4 series

Company information

Company name
Shanghai Shangzhen Vibrator Motor Co., Ltd.
Chinese registered name
上海上振振动电机有限公司
Region
Shanghai, China
Record updated
2026-10-07
