Shenyang Blue Light Permanent Magnet Motor Technology presents permanent-magnet motors for oilfield pumping and other industrial duties within the Blue Light business network. For a buyer, the decisive question is which mechanical transmission is being replaced: a beam pump's belt drive, a gear reducer, or a different shaft load. A low-speed PM motor also requires a matched control and protection package. The manufacturer's public pages contain conflicting labels on some mining and controller entries, so this profile does not invent a complete model specification from them.

LocationLiaoning, China
Published catalogue3 product series
Motor families3 represented

BLUE LIGHT · DIRECT-DRIVE RETROFITS

Blue Light PM drives: define the retrofit before choosing a motor

Explore the published range ↓

01 / START WITH THE TRANSMISSION TO BE REMOVED

A beam pump conversion is a mechanical and control project

Inner-rotor semi-direct beam-pump conversion

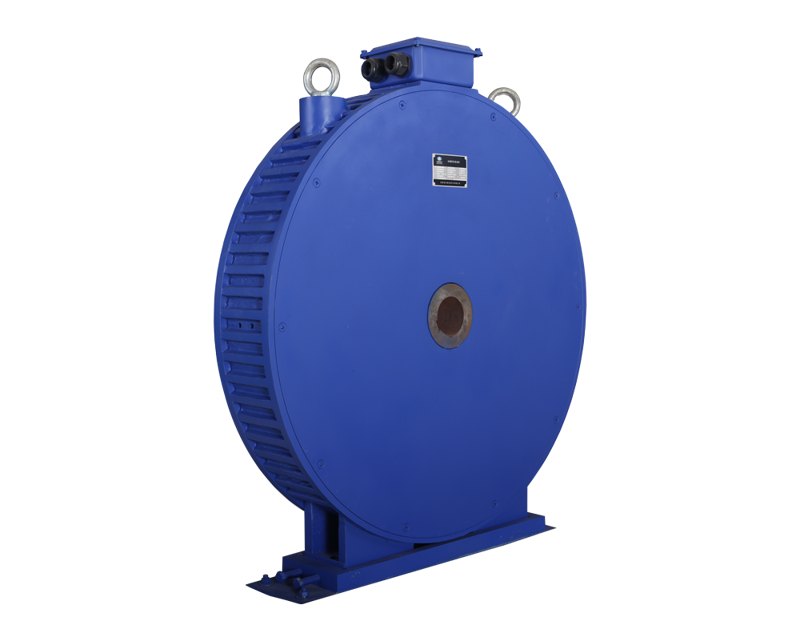

The company's BLM inner-rotor thin semi-direct page describes replacing the belt stage on a conventional beam pumping unit with a compact direct connection. It says the conversion is intended to reduce belt wear and transmission loss and improve fit for outdoor installations. Those are design intentions, not a measured energy-saving guarantee for a given well. The existing pump geometry, crank torque, balancing and duty cycle determine whether the arrangement is feasible.

Confirm before ordering Send pumping-unit model, reducer and crank data, existing motor/belt layout, shaft height, foundation, balance settings, strokes per minute, torque trace across a cycle, well load and outdoor exposure. Request a site-fit drawing, coupling and guarding design, proposed BLM torque-speed curve, inverter match and commissioning plan.

View BLM inner-rotor semi-direct-drive oilfield motor →

Outer-rotor and gearless pumping architecture

A separate company page describes an outer-rotor BLM arrangement for a beamless pumping unit, using a supported rotor and sheaves to drive the rod and counterweight without a conventional reducer. Its page refers to a high shaft-load capability, but that value belongs to a design family and is not safe to assign to a specific offered frame. This is a different machine architecture from an inner-rotor retrofit; the site civil works, suspension and safety assessment change with it.

Confirm before ordering Identify beamless-unit design, suspension ratio, rod and counterweight loads, sheave and rope specification, overspeed/braking strategy, foundation, access and emergency recovery. Ask for the exact machine assembly drawing and verified load rating, not a bare-motor quote.

Mining or process direct drive

The catalogue also shows a mining explosion-protected PM motor and application pages for mixers. The mining page's heading says BLM, while its technical paragraph says BLF; another mixer page mixes a product title and reactor-duty narrative. These conflicts prevent a responsible model-level rating claim. For a hazardous mine or a hygienic/process mixer, area classification, cooling, controller, sealing and the driven equipment must be reviewed before the proposed PM architecture is treated as suitable.

Confirm before ordering For a mine, provide gas/dust classification, zone, thermal limits, load start and cooling duty and ask for current exact-model approval. For a mixer, send batch viscosity and torque over time, shaft orientation, seal and washdown constraints, reducer to be removed and acceptance tests.

02 / CONFIRM THE MATCHED DRIVE SYSTEM

Do not infer a controller from the catalogue label

Motor and drive must be quoted together

A permanent-magnet direct drive needs a compatible inverter or servo drive, feedback strategy, overload and overspeed protection, thermal monitoring and a safe stop/restart sequence. Pumping loads reverse or fluctuate during a stroke; a nameplate power alone cannot establish starting margin or regenerative behaviour. Request curves and a control schematic for the exact assembly.

The controller page has a content mismatch

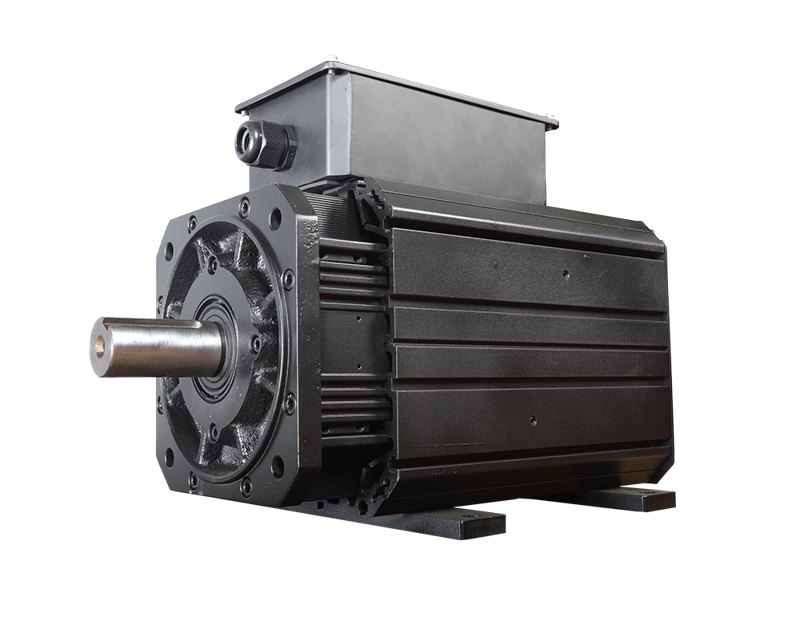

The manufacturer's listing is titled 'BLM permanent-magnet synchronous motor servo controller', yet its detailed body describes a BLI injection-moulding servo motor and gives motor torque/current/power ranges. Those values cannot be attributed to a BLM controller. Ask the supplier for a separate controller model, electrical drawing, firmware revision, I/O list and approved motor pairing.

Separate related company identities

The PM site presents Shenyang Blue Light Permanent Magnet Motor Technology within a broader Blue Light network; the group's public site also discusses elevator traction and control businesses under other named entities. Do not use an elevator traction-machine claim or another group company's certificate as proof for the oilfield, mine or mixer unit quoted by this supplier. The contracting and manufacturing legal entities should be explicit.

03 / TURN THE CONCEPT INTO A TESTABLE RFQ

Price the conversion against a measured baseline

A direct-drive retrofit can remove maintenance points, but savings and reliability depend on the actual duty. Give bidders the same operating record and require performance at defined operating points rather than an unsourced percentage claim.

Record the baseline

Collect measured kWh per pumping cycle, production and stroke profile, peak and RMS torque, starts, failures, belt/reducer maintenance, ambient and weather, vibration and existing safety interlocks. Keep the before/after measurement boundary and duration identical.

Review engineering interfaces

Ask for motor/drive/sensor part numbers, frame and foundation drawings, shaft coupling or sheave load, bearing duty, thermal path, cabling, enclosure, braking, emergency recovery and protection logic. Confirm the site's electrical supply and harmonics constraints.

Approve the exact configuration

Require model-specific rated and peak torque-speed curves, continuous thermal evidence, test reports, relevant hazardous-area certificates if applicable, warranty scope, spare parts and commissioning procedure. Resolve the website's BLM/BLF and controller/BLI content conflicts in a signed datasheet before purchase.
