MOTOR MANUFACTURER · Liaoning, CHINA

Shenyang Liming

Liming publishes separate YB2 high-voltage flameproof data, YBK mining motor entries and permanent-magnet direct-drive listings. Select by voltage, protected atmosphere and mechanical load before comparing a series name.

LocationLiaoning, China
Published catalogue3 product series
Motor families1 represented

SHENYANG · HAZARDOUS-AREA AND DIRECT-DRIVE MOTORS

Shenyang Liming: match high-voltage flameproof, mining and direct-drive duty

Explore the published range ↓

01 / START WITH THE SITE

A mine, a high-voltage plant and a direct-drive retrofit need different evidence

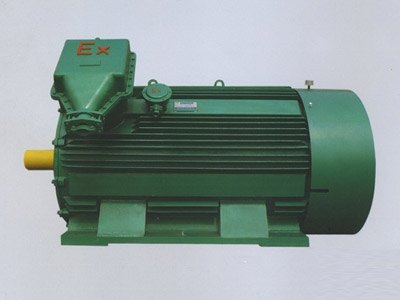

YB2 high-voltage flameproof: keep the 6 kV and 10 kV sheets apart

The manufacturer's YB2 site has distinct 6 kV and 10 kV pages. The inspected 10 kV table gives a YB2-4501-2 row at 220 kW, 16.1 A, 2985 rpm, 94.2% efficiency and 0.84 power factor. Those are one tabulated two-pole frame-450 rating, not a promise about a 6 kV machine, its outline or an available build today. The English table labels are imperfect, so the Chinese heading, unit and row must be read together.

Confirm before ordering Send plant bus voltage and frequency, starting arrangement, fault/voltage constraints, load torque and inertia, installation class, cooling, shaft and foundation drawings. Request the exact 6 or 10 kV model sheet, matching outline and terminal arrangement, current protection certificate and acceptance-test scope.

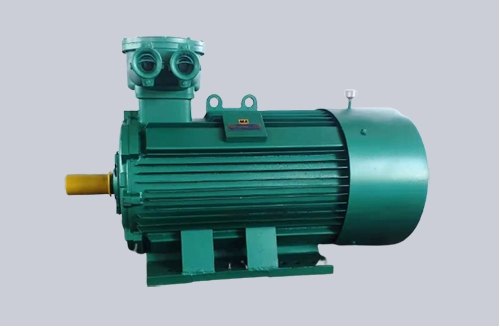

YBK3 or YBK2 for an underground mining installation

Liming lists YBK3 and YBK2 separately as underground mining explosion-protected motors. Their inspected product pages show family names and photographs, not an orderable parameter table or a certificate for a selected build. Do not substitute a general industrial YB2 marking for a mining-use requirement merely because both are called flameproof.

Confirm before ordering State mine and location classification, methane or other gas exposure, equipment duty, supply, drive/starter, ambient, enclosure and required mine-safety approvals. Ask for a current nameplate, certificate and mine-use scope matching the exact motor, factory and installation.

Permanent-magnet direct drive: establish what equipment is removed

The current catalogue also lists a permanent-magnet direct-drive synchronous motor and a separate flameproof inverter-fed direct-drive entry. These are not a different name for the YB2 induction family. A retrofit may change base speed, gearbox interface, cooling and inverter behavior. The public titles alone do not define a continuous torque curve or protected-area approval.

Confirm before ordering Provide driven-machine duty cycle, shaft torque at minimum and maximum speed, existing gearbox ratio, inertia, space and coupling dimensions, brake/hold needs, drive details and site classification. Request an integrated motor-drive proposal and variant-specific drawings and approvals.

02 / DOCUMENT BOUNDARY

The old YB2 material is a useful comparison, not a current approval

One genuine 10 kV rating row is readable

The manufacturer's YB2 10 kV electrical image explicitly labels its frame-450, two-pole rows and rated units. The 220 kW row can anchor a preliminary discussion; nearby 250–500 kW rows are other machines. A separate page carries 6 kV drawings and an older narrative. Do not combine the 10 kV electrical figures with a 6 kV outline or assume a common terminal box and shaft.

Older explosion-protection text needs a current certificate

The 6 kV YB2 page cites older GB 3836 editions and broad Ex markings in its historical narrative. That does not establish conformity under current requirements, certificate validity, or suitability for a specific zone. Obtain the current certificate from the issuer or official registry, including holder, factory, model range and marking, before the purchase decision.

Legal identity is independently corroborated, but narrowly

The manufacturer site names Shenyang Liming Electric Motor Manufacturing Co., Ltd. A Shenyang market-regulation authority's earlier enterprise list also names the same Chinese legal entity. That historical list supports identity only; it does not validate today's facilities, quality system, product certification or group affiliations with other companies sharing the Liming name.

03 / PROCUREMENT CHECKLIST

Ask for the offered build, not a family photograph

Which data should accompany a high-voltage replacement request?

Include existing motor plate and outline, actual line voltage, supply tolerance, starting method and allowable current, rated and transient load, shaft/coupling and foundation dimensions, cooling air route, ambient and hazardous-area classification. Identify any nonstandard terminal box or cable entry. Ask for a revised electrical and dimensional sheet bearing the same model code.

Which handover documents resolve the major risk?

Request a model-specific nameplate and full performance table, certified protection marking and scope where needed, insulation and temperature-rise test conditions, factory acceptance plan, outline and connection drawings, and drive pairing data for direct-drive variants. A public series range is not a substitute for this signed quotation package.

Published motor range

3 series

Company information

Company name
Shenyang Liming Electric Motor Manufacturing Co., Ltd.
Chinese registered name
沈阳黎明电机制造有限公司
Region
Liaoning, China
Record updated
2026-10-08
