01 / SELECT THE PRINCIPLE
Linear force, indexed rotation or continuous servo motion?
Short-stroke direct actuation: voice coil
The official catalogue lists 32YQ001 alongside 32YQ002 and cylindrical and flat voice-coil variants. Its 32YQ001 page shows the reference and image but no public force, stroke or thermal table. Do not treat the image or name as an orderable performance specification.
Confirm before ordering Give required stroke, continuous/peak force, moving mass, force-versus-position profile, duty, allowable heat and sensor/driver plan; request the actual 32YQ001 drawing and test curve.
View 32YQ001 voice-coil motor →
Repeatable steps: stepper
Taiping's stepper section lists separate Q/38BC-1, Q/90BC-1, 90BF001, 60BC21 and 42BC018 references. The Q/38BC-1 detail page publishes a name and image without electrical ratings, so the buyer must obtain its winding and torque-speed data rather than infer them from the frame code.
Confirm before ordering Specify step size, loaded speed, acceleration, holding requirement, drive voltage/current and whether position feedback is needed.
View Stepper motor range →

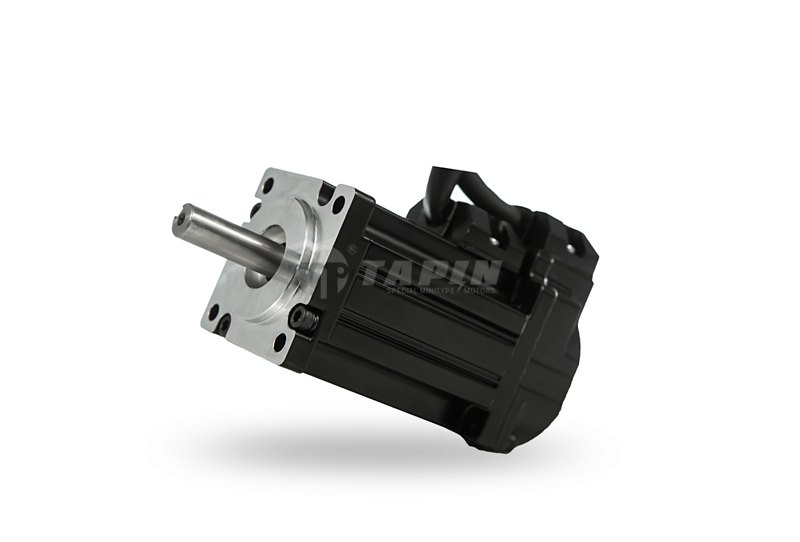

Closed-loop rotary axis: AC servo
The AC servo list includes eight different TAST references. The 40TAST-24V detail gives 24 V, 50 W, 0.16 Nm and 3,000 r/min for that named model only; none of those values describe the entire TAST list. A complete selection includes compatible drive, feedback and cable set.
Confirm before ordering Provide continuous and peak torque, inertia, speed cycle, supply, encoder/feedback and mechanical envelope; compare exact TAST variants.
View AC servo motor range →

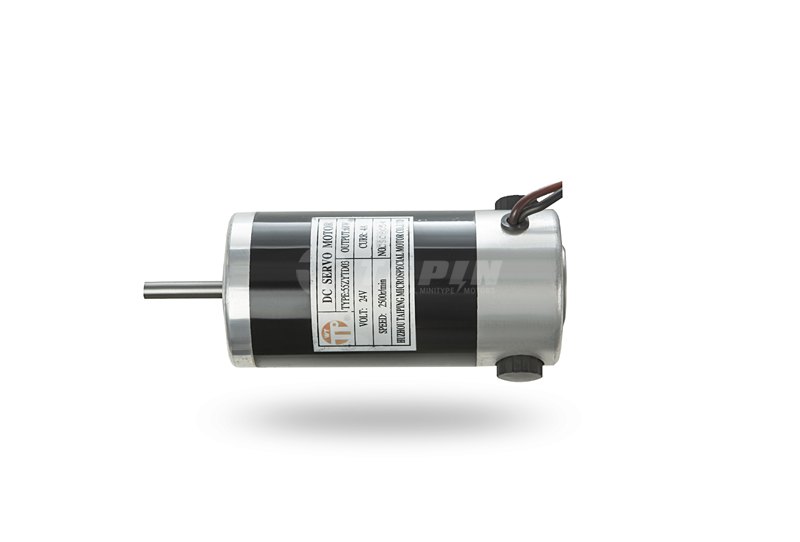

Continuous DC rotation: brushed motor
The brushed-DC list contains several distinct 55ZYTD, 110ZYTD, 80ZYTD and 40SY references. For a replacement or compact drive, ask for the exact motor code, voltage, duty, brush-life conditions and shaft dimensions; a shared category is not a matched part.
Confirm before ordering Include supply, torque-speed requirement, ambient, target brush service interval and replacement-motor drawing.
View Brushed DC motor range →
