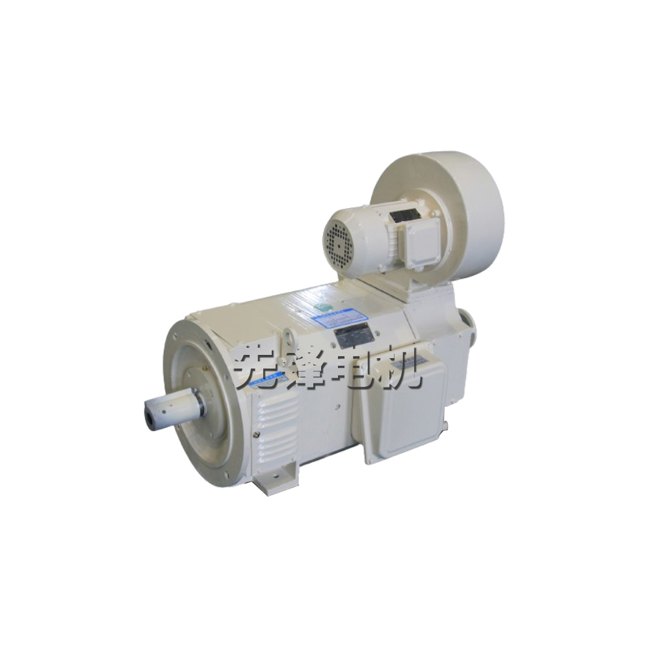

Z4: general separately excited DC drive
The manufacturer's Z4 page describes a laminated polygonal frame suited to rectifier supply. It lists 160 V and 440 V standard armature versions and a separate field circuit; cooling and blower placement change with frame size. Use it when the existing machine needs DC variable-speed behavior and the exact electrical and mounting match can be established.
Confirm before ordering Provide old nameplate, armature and field ratings, rectifier type, duty point, forced-ventilation arrangement and outline drawing.
View Z4 DC motor →

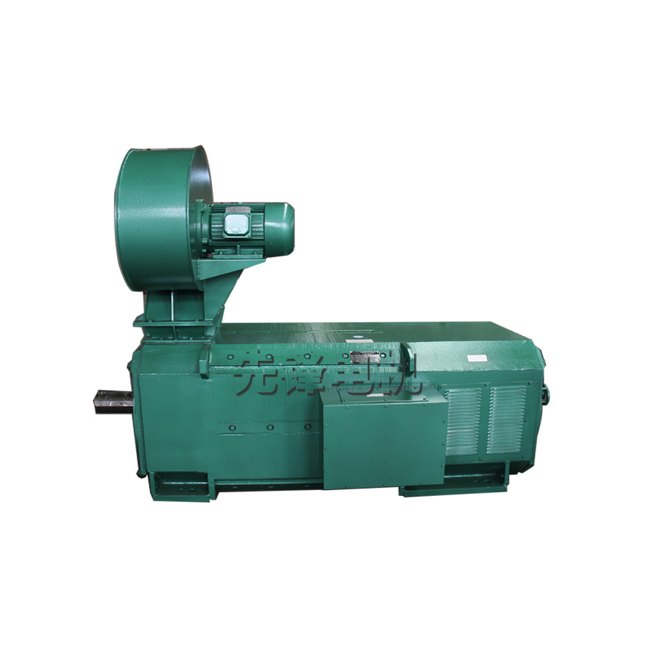

ZSN4: cement-kiln main drive
The official ZSN4 page says this family was developed from Z4 for rotary-kiln main-drive duty. It gives separate 440 V armature and 180 V field standard circuits and describes ducted ventilation for dusty operation. The ventilation table's small kW values rate auxiliary blower motors, not the main ZSN4 shaft output.
Confirm before ordering Send kiln torque-speed and starting requirements, duct pressure and air volume, enclosure/cooling variant, field supply and brake/feedback accessories.
View ZSN4 DC motor →

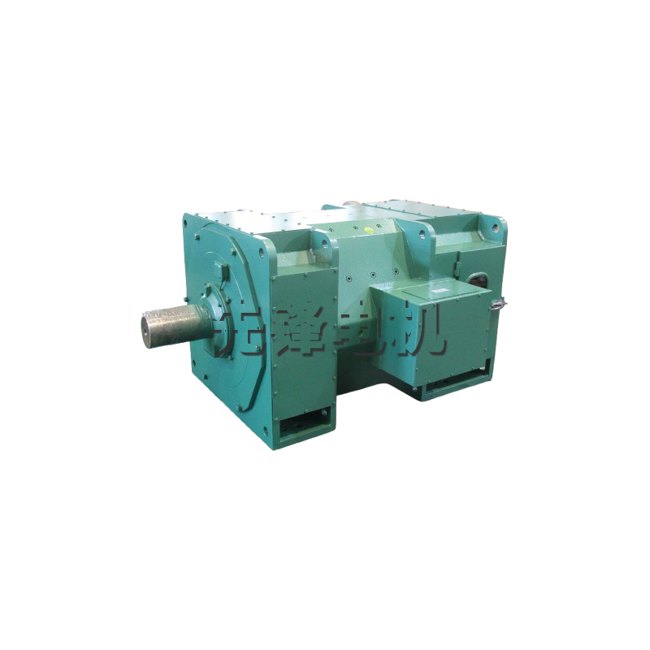

Z710-G: wire-rod rolling duty
The manufacturer's Z710-G page describes a large wire-rod-mill DC motor with continuous S1 duty, IP44 and ICW37A86 cooling. It lists 660 V or 750 V armature options and a separately excited 220 V field as standard; these are not interchangeable with Z4's lower-voltage supply. The page illustrates a 2,500 kW, 800/1,200 rpm build, not a rating for every Z710-G variant.
Confirm before ordering Request the actual mill load and speed range, existing air-to-water cooling interface, shaft/coupling drawing, armature and field supplies and drive protection settings.
View Z710-G DC motor →
