MOTOR MANUFACTURER · Henan, CHINA

Xuchang Guangwei

Guangwei lists general induction motors, fan-duty motors and electromagnetic-brake designs alongside stainless fan assemblies. Specify the driven machine and installation before choosing a series; an explosion-proof company name is not a certificate for every listed motor.

LocationHenan, China
Published catalogue3 product series
Motor families1 represented

XUCHANG · INDUCTION AND FAN DUTIES

Xuchang Guangwei: choose the motor, fan or brake as a complete duty

Explore the published range ↓

01 / APPLICATION ROUTES

A pump drive, a fan drive and a stopped load need different evidence

General three-phase induction drive

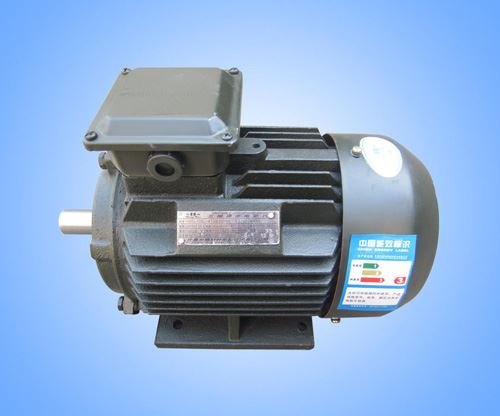

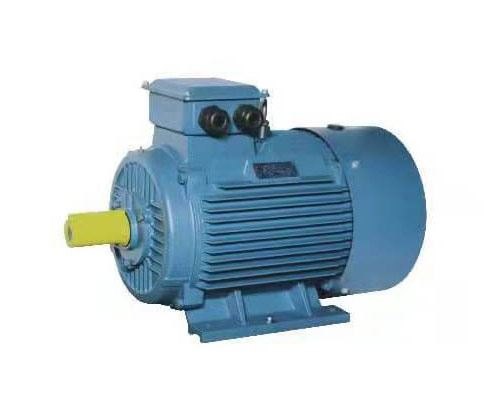

The company presents Y and YE2 three-phase induction families, plus an oil-pump-oriented Y entry. Its public category and product pages identify these families but do not supply a dependable frame-by-frame rating table for the selected item. A shared induction label cannot determine efficiency, shaft extension or suitability for an inverter retrofit.

Confirm before ordering Send the old nameplate, pump or machine load curve, supply and frequency, starting method, mounting form, shaft/key dimensions, duty and ambient. Obtain the offered full model code, current data sheet, dimensioned drawing and applicable efficiency test.

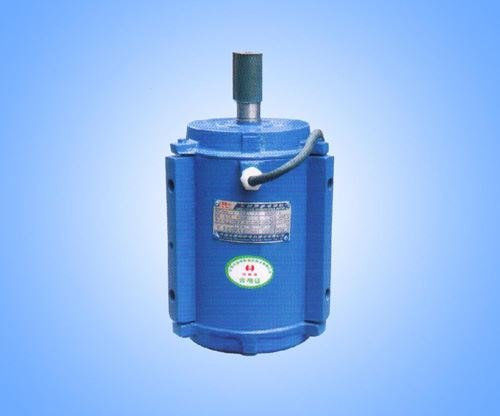

YSF motor for a fan assembly

Guangwei separately lists a YSF energy-saving fan-duty induction motor and complete stainless axial fans. The motor rating is only part of a ventilation decision: blade diameter, system pressure, airflow, rotation and the motor's cooling path determine the installed point. A photographed fan assembly is not proof that a standalone YSF motor has the same protection or performance.

Confirm before ordering Provide fan/impeller details and the required operating point, whether the quote is for a bare motor or assembled fan, mounting/flange, corrosive atmosphere, material requirements, speed control and acoustic limits. Request assembly and motor drawings separately.

YEJ brake motor for stopping and holding

The official navigation also identifies an electromagnetic-brake induction family. That is a different duty from a freely coasting Y or YE2 drive. Its public product page does not establish a model-specific brake torque, release voltage or permitted stopping frequency, so a catalogue family name is not an adequate holding-load specification.

Confirm before ordering Provide load inertia, braking cycles, vertical or horizontal load, required stop time, emergency-stop function, brake supply and release logic. Require the exact brake torque, thermal duty and wiring drawing before approving the assembly.

02 / IDENTITY AND CLAIMS

The predecessor name is documented; present product approvals are a separate question

How the company identifies itself

The company's present site names Xuchang Guangwei Explosion-proof Motor Co., Ltd. and explicitly identifies Xuchang Guangwei Special Motor Technology Co., Ltd. as its former name. A historical Henan provincial quality-inspection list reproduced by China Quality News names that former entity for two YE3 samples made in 2015. This supports a historical identity link and those bounded samples, not a present rating or approval for today's YE2, YSF or YEJ quote.

Do not infer hazardous-area suitability from the signboard

Although the current legal name includes ‘explosion-proof’, the visible general-purpose Y, YE2 and YSF catalogue entries do not establish an Ex marking, gas/dust group, temperature class, certificate number or expiry for a selected motor. If the installation is classified, request the actual model-and-serial certificate, marked nameplate, installation instructions and suitability review for the stated zone.

A stainless fan and stainless motor have different boundaries

The manufacturer's product navigation lists stainless axial fans, stainless motors and motor components separately. Confirm which surfaces and fasteners are stainless, the grade specified for the process fluid or atmosphere, and whether the quotation includes blade, guard, hub and motor. The material title alone does not prove corrosion resistance of every assembled part.

03 / QUOTE INPUTS

Make the proposed unit comparable at the machine interface

What should a replacement enquiry contain?

Attach the installed motor and equipment nameplates, photos of shaft, terminals and mounting, supply and control scheme, duty cycle, load curve, environment, quantity and delivery needs. Tell the supplier whether the requirement is a bare induction motor, a brake motor, a fan-drive motor or a complete stainless fan.

Which supplier documents close the decision?

Request one revision-controlled model sheet and outline drawing matching the offered configuration. Add efficiency and temperature-rise data for a general drive, airflow and system-point data for a fan, brake torque and stop-cycle data for YEJ, and model-specific Ex and material documents only when the application demands them. A 2015 sample inspection of a predecessor YE3 motor cannot substitute for these documents.

Published motor range

3 series

Company information

Company name
Xuchang Guangwei Explosion-proof Motor Co., Ltd.
Chinese registered name
许昌光维防爆电机有限公司
Region
Henan, China
Record updated
2026-10-08
