MOTOR MANUFACTURER · Jiangsu, CHINA

Xuzhou Yatai

Yatai's YKS and YKK 6/10kV induction motors differ in cooling and enclosure. Its separately excited DC drilling motor is a different electrical brief. Match the air path and protection to the actual machine room before choosing a family.

LocationJiangsu, China
Published catalogue3 product series
Motor families2 represented

YATAI · HIGH-VOLTAGE AND DC DRIVES

Xuzhou Yatai: select YKS or YKK high-voltage cooling, or a separate DC drill drive

Explore the published range ↓

01 / SUPPLY AND COOLING

The same manufacturer does not make these three a common substitute

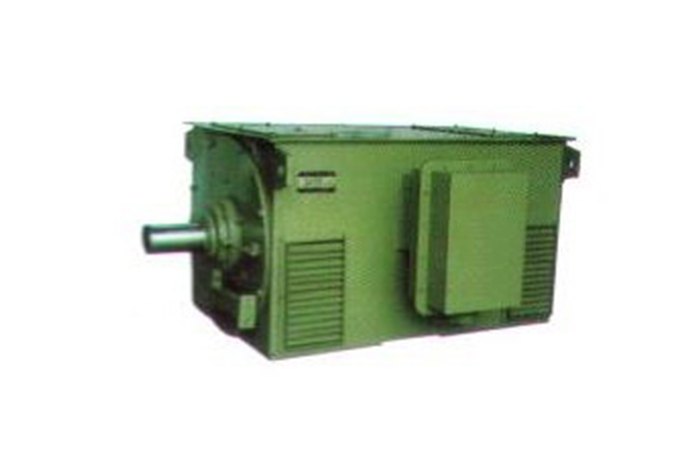

YKS: an air-path decision at 6 or 10 kV

Yatai's YKS page describes a cage-induction high-voltage motor with IC01 cooling, 50 Hz supply, IMB3 mounting and continuous S1 duty. It also lists IP23 and IP44 without a model mapping. An IC01/open-air description alongside an IP44 option deserves an exact-model explanation before ordering, especially where dust, water or a ducted plant room affects the air path.

Confirm before ordering Send site altitude, air quality, intake/discharge arrangement, enclosure exposure and available floor/maintenance space. Ask for the selected YKS frame's verified cooling and IP combination, ventilation drawing, thermal limit and nameplate; do not infer that every listed option belongs to one unit.

View YKS high-voltage three-phase induction motor →

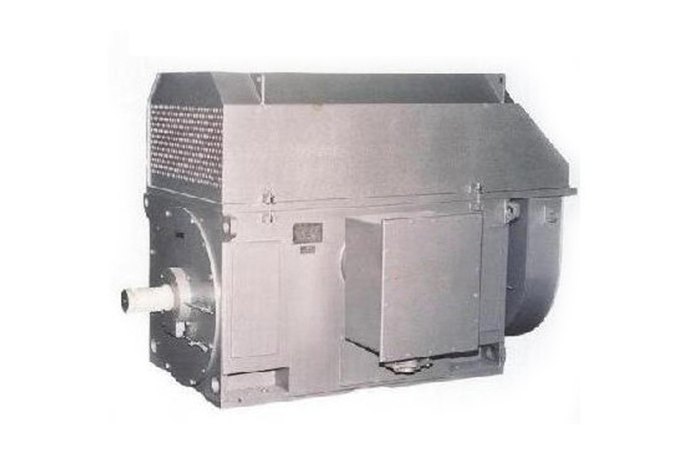

YKK: enclosed air-to-air cooling changes the package

The separate YKK page calls the motor an enclosed air-to-air-cooled cage induction design, IC611, with IP44 or IP54 options, 6 or 10 kV, 50 Hz and S1 duty. The cooler, air passages and service clearance make this a different installation question from the YKS page. It is not sufficient to choose YKK only because the plant has a dusty room; the exact offered protection, cooling circuit and pressure drop need a drawing.

Confirm before ordering Request the offered YKK model's general arrangement, cooler dimensions, fan data, air inlet and exhaust access, connection box, maintenance clearance and IP evidence. Verify the mounting designation because the official page abbreviates it as IM3 rather than a full variant drawing.

View YKK high-voltage three-phase induction motor →

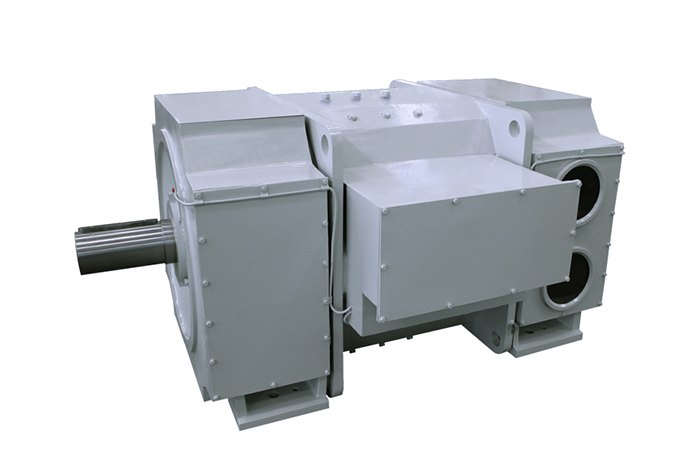

ZJ500–1000: a separately excited DC drilling route

Yatai lists a ZJ500–1000 oilfield drilling motor as a separately excited DC product. Its accessible official page identifies the family but gives no readable voltage, current, torque-speed or cooling table. It should not be evaluated from the 6/10kV YKS/YKK data or treated as the same AC starter package. The existing MotorSourcing product entry remains a catalogue lead pending a model sheet.

Confirm before ordering For a drilling-drive inquiry, provide the existing motor plate, armature and field supply, control system, required torque-speed and overload cycle, mounting/coupling and cooling. Ask for the precise ZJ code's drawing, winding/field data and duty test.

02 / THE ROOM MATTERS

A 6/10 kV motor is part of the plant electrical and ventilation system

Coordinate switchgear, protection and starting

Both high-voltage pages identify 6 and 10 kV, 50 Hz cage motors, but do not provide a model-by-model starting-current or torque schedule. Specify the driven load inertia, starts per hour, starting method, available fault level, protection relay, cable route and earthing before requesting a comparable offer. Ask for a start calculation and curve for the actual frame.

Place the cooler and terminal box in the actual room

A compressor room, pump station and crusher house impose different airborne dust, heat rejection and access constraints. YKK's IC611 cooler and YKS's stated IC01 air path should be shown on separate layout drawings with their service clearances, hot-air recirculation risks and ambient assumptions. Do not substitute the cooler concept without checking the equipment-room flow.

Industrial application is not a hazardous-area approval

The maker lists mining among possible downstream industries for high-voltage motors, but neither the cited YKS nor YKK page is a valid explosion-protection certificate. For an underground or classified process area, provide the formal zone and ask for a different specifically approved product and exact certificate.

03 / COMPARE LIKE WITH LIKE

Tie each proposed motor to one load case and one drawing

What does the buyer send first?

Send equipment type and power/speed requirement, load and inertia, duty and start count, voltage/frequency, site altitude and ambient, enclosure exposure, existing mounting/coupling drawing, room layout, switching/protection scheme and destination. Include old plate and failure mode for a replacement.

What must a high-voltage offer resolve?

Require the exact YKS or YKK model, rated data, starting and torque curves, current, insulation and temperature limits, protection level, complete cooling method, air flow, mounting/terminal arrangement, test plan, documentation and delivery boundary. Keep IP and cooling as the offered combination, not two independent catalogue pick lists.

How should it be accepted?

Agree drawing and nameplate checks, insulation and winding tests, no-load and loaded current, temperature and vibration, starting performance and cooler operation. The scope should identify which results are factory routine tests and which require a witnessed system trial at the plant.

04 / DOCUMENTED CLAIMS

Catalogue-level distinctions are supported; exact model data still decides

Company identity

The official product pages and site footer identify 徐州亚泰电机有限公司 in Peixian. A Jiangsu public technology-enterprise list names the same legal entity, and a published Chinese patent identifies it in the same locality. Those records corroborate the enterprise, not the rated performance or current approval of any offered motor.

What the official pages do and do not show

YKS and YKK each have written family-level voltage, cooling, enclosure and duty descriptions. YKS's IP options with IC01 need variant clarification; YKK's abbreviated mounting code needs a drawing. The ZJ DC drilling page has a title but no readable electrical performance schedule. This profile therefore leaves output ranges and certificates to the actual quotation.

Published motor range

3 series

Company information

Company name
Xuzhou Yatai Electric Machines Co., Ltd.
Chinese registered name
徐州亚泰电机有限公司
Region
Jiangsu, China
Record updated
2026-10-07
