MOTOR MANUFACTURER · Zhejiang, CHINA

Zhejiang Shangzhen

Zhejiang Shangzhen's catalogue separates horizontal YZO from vertical YZL vibration motors. Published examples give 380 V, 50 Hz operation and different vibration speeds, but they do not establish the force or mounting fit for your machine. Start with the equipment drawing and target motion, then request the exact motor sheet.

LocationZhejiang, China
Published catalogue2 product series
Motor families1 represented

ZHEJIANG SHANGZHEN · VIBRATION-MOTOR SELECTION

Zhejiang Shangzhen vibration motors: choose mounting and excitation speed

Explore the published range ↓

01 / MATCH THE MACHINE

The horizontal-versus-vertical decision comes before a catalogue speed

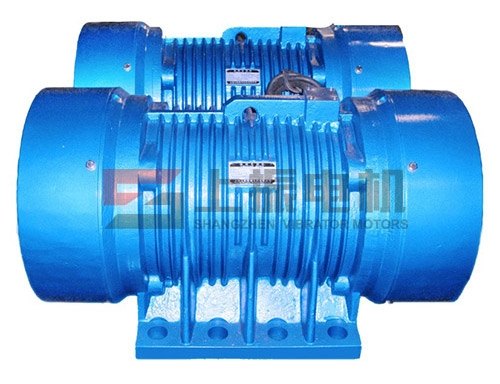

YZO: start from a horizontal motor mount

The maker places YZO in its horizontal vibration-motor range. Its separate two-pole and six-pole listings describe 380 V, 50 Hz operating conditions and vibration speeds of 2900 and 970 r/min respectively. Those are different catalogue examples, not a selectable speed range for one unit. The existing MotorSourcing card labels an eight-pole YZO range, but the cited two- and six-pole pages do not verify an eight-pole model's force or dimensions.

Confirm before ordering Send a drawing of the motor seat, quantity and positions of motors, screen or feeder mass, desired motion and available three-phase supply. Ask for the exact YZO suffix, excitation-force setting, mounting dimensions, bearing load limits and wiring diagram.

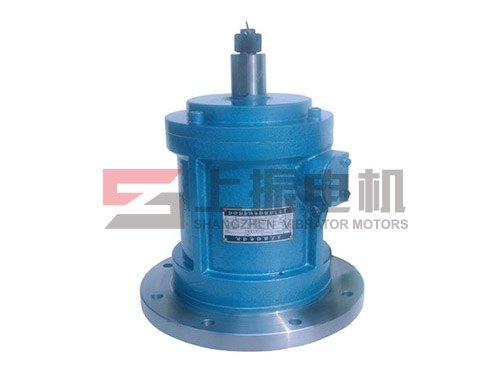

YZL: confirm a vertical installation and its output pattern

The maker classifies YZL separately as a vertical vibration motor. Its four-pole listing states 380 V, 50 Hz and 1430 r/min; a separate six-pole listing states 970 r/min under the same supply conditions. These figures distinguish published examples only. Neither page provides a full force-versus-setting table or proof that an existing vertical machine accepts either mounting pattern.

Confirm before ordering Provide the original vertical-motor interface, equipment drawing, shaft/weight arrangement and desired material flow. Request the selected YZL model, force-adjustment method, rotation direction, dimensions and duty limits before calling it a replacement.

View YZL four-pole vertical vibration motor →

02 / INFORMATION THE QUOTE NEEDS

A vibration-motor quote needs the vibrating assembly, not just motor power

What motion must the machine produce?

State whether the equipment is screening, conveying or feeding; include loaded and empty vibrating mass, material throughput, target amplitude, inclination and permitted operating speed. Shangzhen's application page discusses both screening and a belt-driven twin-eccentric-shaft feeder. That whole-machine feeder description must not be read as a specification for a direct-mounted YZO or YZL motor.

How will the drive be attached and paired?

Show the bolt pattern, orientation, available envelope, structural stiffness and whether the machine uses one or synchronized pairs of exciters. Ask the supplier to state direction of rotation, eccentric-weight adjustment, start/stop procedure, fastener grade and torque, and compatibility with the existing base. The public product snippets do not settle these details.

What evidence should accompany acceptance?

Request a current selected-model datasheet with force, current, insulation, enclosure and duty; a dimension drawing; setting instructions; and the test/inspection record for the quoted configuration. Compare the supplier's recommendation against the actual machine drawing rather than combining catalogue endpoints from different pole counts.

03 / WHAT THE SOURCES ACTUALLY SHOW

Company identity is corroborated; a selected motor still needs its own datasheet

A named manufacturer, with distinct catalogue paths

The manufacturer's current site identifies 浙江上振电机有限公司 in Linhai and separates YZO horizontal, YZL vertical and other vibration-motor families. A Zhejiang public enterprise list independently names the same Chinese company. That list establishes a dated identity record; it does not certify any particular motor or its current capacity.

Published speeds are not excitation ratings

The checked two-pole YZO, six-pole YZO, four-pole YZL and six-pole YZL pages give supply and vibration-speed examples but no complete force, power, current, envelope or adjustment schedule in readable page text. A supplier recommendation must identify the specific model and setting. No force, certificate or performance claim has been inferred from the speed alone.

Published motor range

2 series

Company information

Company name
Zhejiang Shangzhen Motor Co., Ltd.
Chinese registered name
浙江上振电机有限公司
Region
Zhejiang, China
Record updated
2026-10-07
