01 / MATCH THE HOST VEHICLE
Start from the locomotive and the original traction-motor code
ZD-series replacement inquiry

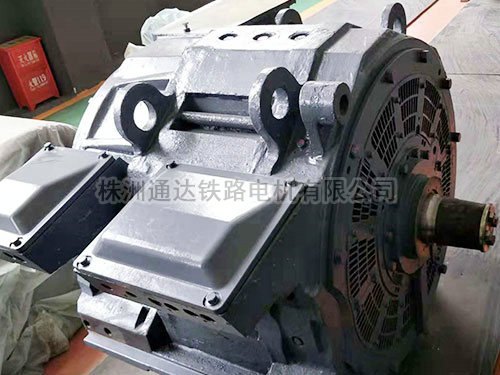

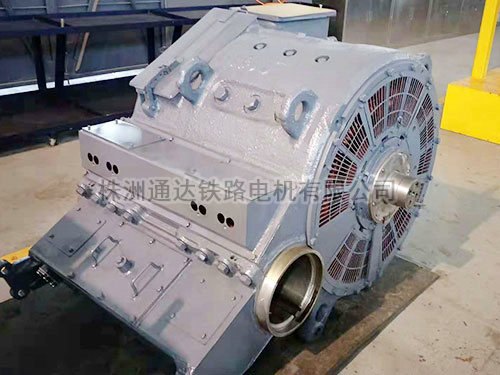

The company's locomotive-motor catalogue presents ZD105, ZD109B and ZD120 as separate traction-motor entries. The individual pages identify each model but repeat company background rather than publishing a usable electrical or dimensional table. A similar ZD prefix therefore cannot establish a drop-in replacement, winding match or cooling arrangement.
Confirm before ordering Send the locomotive or bogie type, original motor nameplate, serial number, overhaul history, mounting and gear-end photographs, supply and control data, cooling route and the required replacement boundary. Ask for the exact proposed motor code, signed outline drawing and rating/test sheet.

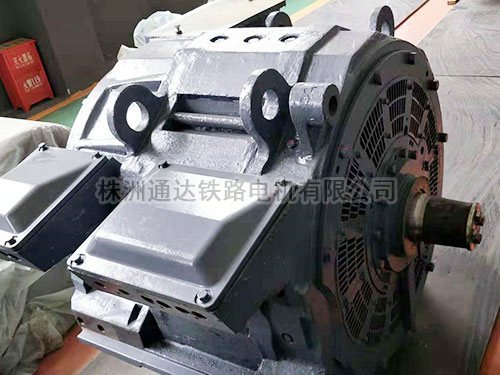

View ZD109B railway traction motor →

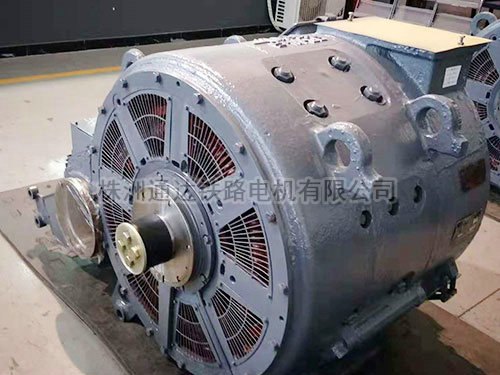

ZQ800-1 is a distinct catalogue route
ZQ800-1 appears alongside the ZD models in the manufacturer's locomotive catalogue. Its separate designation is a useful search handle, not evidence of the same voltage, traction characteristic, shaft or frame. The manufacturer also lists other traction models such as YQ-190-1 and ZQDR-410; each needs its own host-vehicle and configuration check.
Confirm before ordering For ZQ800-1 or another named model, request the applicable vehicle and bogie list, characteristic curves, rated and short-time duty, insulation and cooling data, shaft/gear-end drawing, terminal arrangement and interchangeability statement for the original unit.
View ZQ800-1 railway traction motor →
Motor versus adjacent drivetrain components
Tongda's public navigation separates locomotive motors from a locomotive gearbox, wiper and vacuum-circuit-breaker catalogue. The gearbox page establishes a listed category, but does not provide a gear-ratio or interface sheet. A traction-motor offer should not silently include a gearbox or other vehicle electrical equipment.
Confirm before ordering Mark the supply boundary on one drawing: motor only, pinion or gear-end parts, gearbox, cables, cooling components, sensors, spare parts and commissioning. Ask for a priced bill of materials and exclusions.
