Huyuan's published range has several motors that look similar in a catalogue but solve different problems: YSE softens crane-travel starting, YSEW combines reducer, motor and brake, YBX3 is a hazardous-area family, and ZLS is built around a reducer interface. Start with the duty and installation risk; do not select by power alone.

LocationZhejiang, China
Published catalogue4 product series
Motor families3 represented

HUYUAN · CRANE-DRIVE SELECTION

Huyuan Motor: crane travel, brake and flameproof routes

Explore the published range ↓

01 / DEFINE THE MOVEMENT

Is the drive moving a crane trolley or holding a suspended load?

The manufacturer presents YSE and YSEW for crane travel and says the first YSE generation combines a solid-rotor induction motor with an AC brake. That does not by itself qualify the motor or brake for a particular hoist or safety function; the travel-versus-lifting decision belongs in the machine design.

Travel shock and frequent starts

For a trolley or bridge travel axis, provide wheel diameter, gearing, vehicle mass, travel speed, starts per hour and stopping distance. YSE's published R1 page states S3 40% duty for its overview, while its extended model table goes beyond the overview frame range; request the current generation's model sheet before applying either range.

Brake and holding requirement

Specify whether the brake only stops a travel axis or must hold a suspended load. Ask for the offered brake's rated torque, release voltage, stopping test and fail-safe behavior in the complete mechanism; a catalogue phrase such as 'brake motor' is insufficient.

Control method

Describe direct-on-line or inverter operation, acceleration and deceleration settings, electrical supply and control cabinet. The R1 YSE's solid-rotor soft-start behavior is not the same as a programmable inverter ramp.

02 / PACKAGE BOUNDARY

YSE is a motor-and-brake choice; YSEW is a travel-drive assembly

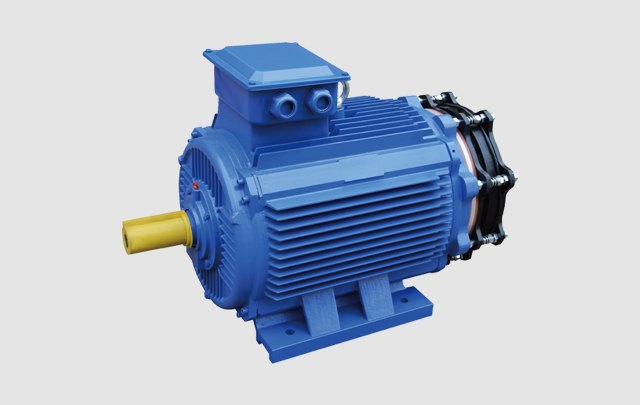

YSE R1 soft-start brake motor

The official R1 page describes a solid rotor and AC brake, and lists 380 V, 50 Hz, IP54, class F and S3 40% in its overview. Its first-generation context matters: later R3 disc-brake versions are separate catalogue entries, so request the generation and brake configuration in writing.

Confirm before ordering Compare rated and synchronous speed separately; request the exact frame, duty and brake torque, not only a series heading.

View YSE soft-start brake motor →

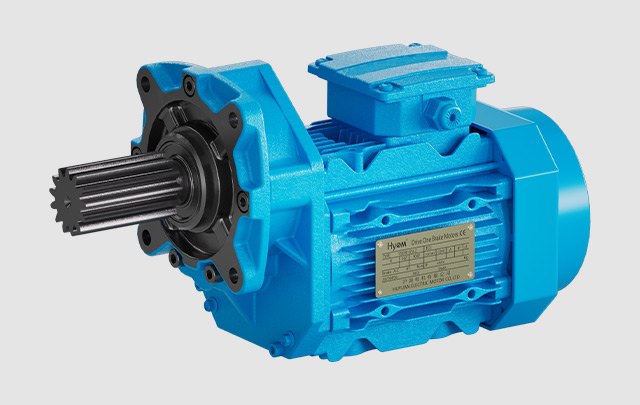

YSEW integrated crane-travel unit

The YSEW catalogue describes a reducer, motor and brake as one drive unit. Its 65, 70, 75 and 85 entries use different mounting interfaces; the YSEW-85 page calls out a European trolley interface. A wheel-speed example applies only with its stated ratio, poles and wheel diameter.

Confirm before ordering Send the trolley mounting interface, rail/wheel geometry, required travel speed, reducer ratio, inverter plan and brake test requirement.

View YSEW integrated-drive brake motor →

03 / DO NOT CROSS-APPLY RATINGS

Hazardous area and reducer coupling need different evidence

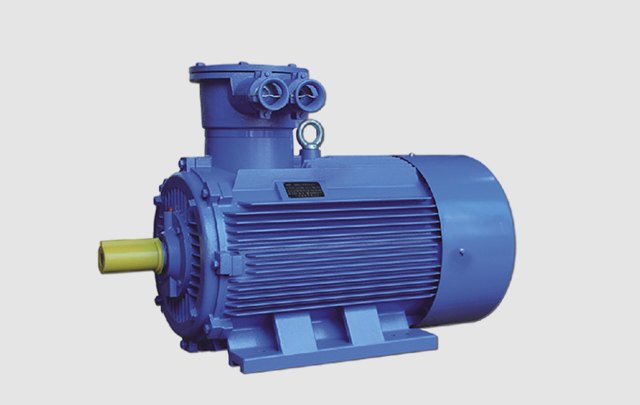

YBX3 in a classified area

Huyuan lists YBX3, YBX3-EJ and a soft-start brake variant separately. The public YBX3 page prints malformed protection marks and a mistitled electrical value; do not infer a valid approval from that text. Match the actual site classification to the full offered model and a current certificate from the issuer.

Confirm before ordering Request full marking, certificate holder and number, covered model, temperature class, ambient conditions and nameplate; verify the certificate in the issuing register.

View YBX3 flameproof three-phase motor →

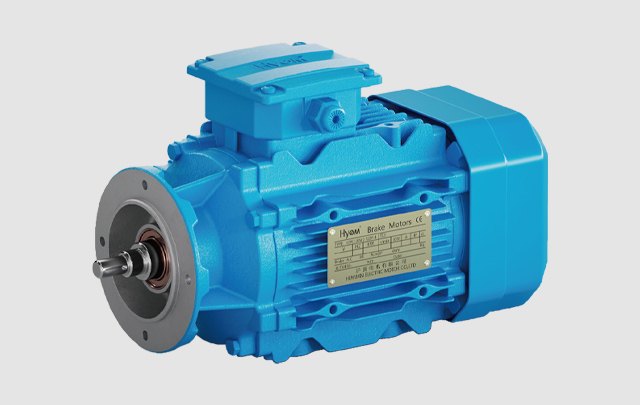

ZLS direct-coupled motor for a reducer

The ZLS family includes a YZP-ZLS inverter-duty configuration intended to mate with R, S, F and K hardened-gear reducers. The published motor-side power range belongs to that subfamily, not every ZLS product; reducer output torque and shaft load remain separate checks.

Confirm before ordering Provide reducer brand/model, input flange and shaft drawings, ratio, output load and duty, then ask for an assembled interface drawing.

View ZLS direct-coupled motor →

04 / PURCHASE PACKAGE

Identify the Zhejiang company and quote the exact assembly

The official history says production moved to Zhejiang in 2013 and 沪源电机有限公司 was formed in 2016; it also mentions an earlier Shanghai Huyuan company within the business history. The site's Zhejiang filing and a public Zhejiang government list naming 沪源电机有限公司 help distinguish this entity. Those records do not establish that every catalogue configuration carries a current product certificate.

Mechanical load

State travel or lift function, mass, wheel or gearbox dimensions, speed, acceleration, starts per hour, mounting, ambient exposure and required stopping distance.

Electrical and protection

State supply, controller/inverter, duty, enclosure requirements and any hazardous-area classification. For YBX3 request model-specific valid approval; for crane service request the exact brake and duty documents.

Acceptance documents

Ask for full model designation, nameplate, current drawing, motor curve, brake/reducer details, wiring and test report. If replacing an existing drive, attach the old assembly's drawing and explain the failure mode.
