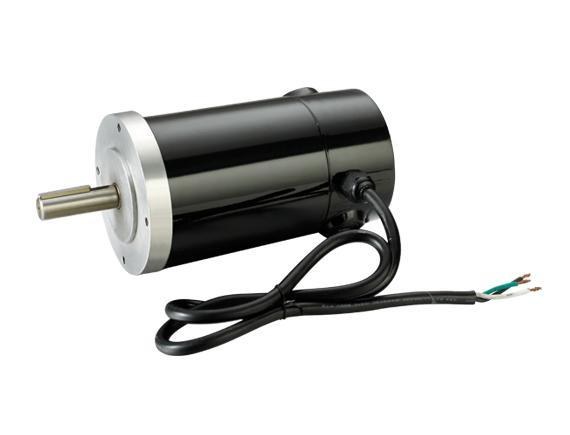

48CZ1: NEMA48CZ, 90 V armature
The official NEMA48C table names 48CZ1 at 1/4 HP, 2,300 r/min, 90 V armature, 2.8 A and 7 in-lb rated torque, with TENV enclosure. Its dimension row is in inches and includes a 0.625-inch shaft dimension and 9.32-inch overall dimension C. These values belong to this row; they should not be copied onto an IEC71 motor or treated as AC supply ratings.
Confirm before ordering Provide the existing motor and controller nameplates, DC armature voltage/current limits, rotation, duty and the NEMA48CZ mounting/shaft drawing. Request a current outline drawing and the controller/brush/thermal recommendations for the quoted 48CZ1 revision.
View 48CZ1 NEMA48CZ 90 V DC motor →

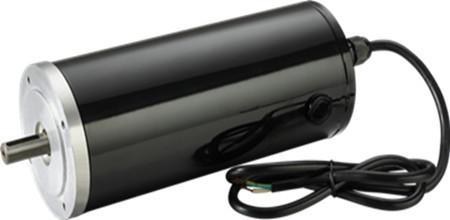

IEC71/B14: four different voltage-speed codes
Eson's IEC71-B14 page lists four 1/3 HP codes: D7139018N and D7131818N at 1,800 r/min with 90 V/3.6 A or 180 V/1.8 A armature supply respectively, both at 1.3 N·m; D7139030N and D7131830N at 3,000 r/min with the same respective voltage/current choices, both at 0.79 N·m. The row drawing uses millimetres, including a 14 mm U shaft entry and 98 mm O dimension. Speed and torque must stay with the same model row.
Confirm before ordering Specify the intended one of the four codes, controller output voltage/current, required load speed and torque, IEC71/B14 flange pilot/bolt circle, shaft/key dimensions and axial space. Request the code-specific drawing and confirm rotation, duty and permissible control range.
View IEC71-B14 1/3 HP DC motor family →
