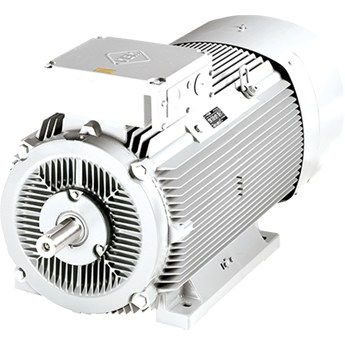

IEC low voltage: frame and operating duty first
The VEM China page describes its ordinary IEC category under IEC 60034, with class F insulation as standard and H as an option, plus IM B3/B35/B5/B14/B34 mount forms. A stated 0.06–132 kW category span is a family envelope, not proof every mounting, efficiency class, inverter duty or low-temperature option is available at every power. The same page says the lower-power group machines are German-made; current origin must be checked on the proposed unit.
Confirm before ordering Give output, load curve, supply, base/maximum speed, converter type, frame and shaft, mount, enclosure/cooling, ambient and efficiency jurisdiction. Ask for the exact type code, drawing, nameplate, efficiency/test data and factory of origin.
View IEC standard low-voltage induction motors →
High-voltage compressor: build around the process train
The group's compressor section distinguishes squirrel-cage asynchronous from brushless salient-pole synchronous drives and lists alternative voltage, air-water/air-air cooling and rolling/sliding bearing choices. Its broad kW and voltage envelopes describe a VEM portfolio, not an orderable Chinese-made motor or a single valid configuration. Illustrations of 20 MW and 25 MW machines are examples, not ratings of the product linked here.
Confirm before ordering Send compressor torque-speed and inertia, gas duty, start method and grid fault limits, site supply/harmonics, hazardous-area classification, cooling water/air availability, footprint, bearing/lubrication and protection philosophy. Request the plant of manufacture, one named design, start/transient study, heat-run plan, interface drawing and project-specific inspection schedule.
View High-voltage asynchronous compressor drive motors →
