Jiangsu Wangpai Motor Manufacturing lists small low-voltage induction motors alongside high-voltage AC machines, low-speed permanent-magnet direct drives and DC motors for rolling-mill auxiliaries. These are separate electrical and mechanical replacement projects. A buyer can use the existing machine's supply and load to choose a route, then resolve the exact model, cooling, controls and mounting in a written technical schedule. The public catalogue has useful tables but also model-label conflicts that should be settled before an order.

LocationJiangsu, China
Published catalogue4 product series
Motor families3 represented

WANGPAI · AC, PM AND DC INDUSTRIAL DRIVES

Wangpai Motor: four drive routes, four different RFQ briefs

Explore the published range ↓

01 / START AT THE MACHINE INTERFACE

The four catalogue lines answer different replacement questions

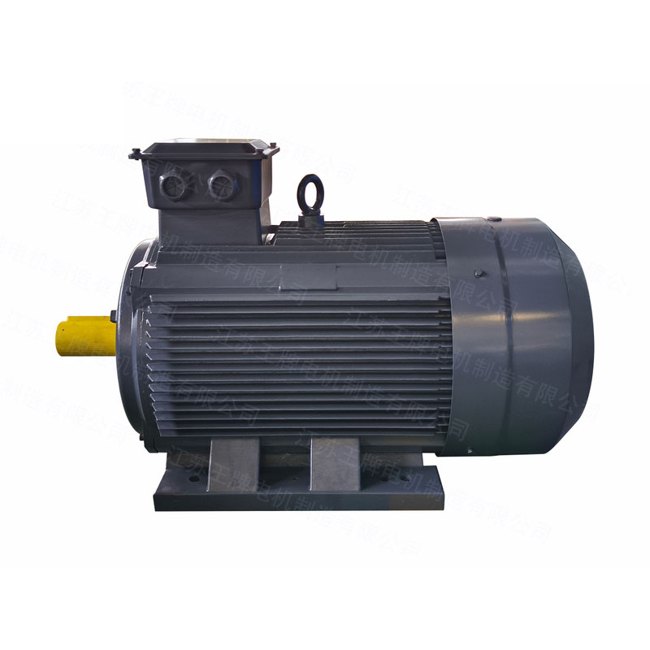

YE3: a small fixed-speed AC replacement

The manufacturer's YE3-90S-2P table row identifies a 1.5 kW, 50 Hz, two-pole motor at 2895 rpm and 4.95 N·m. It prints separate 380 V and 400 V current columns, while the page headline uses 380 V and its family introduction calls 400 V normal. Those descriptions do not specify the winding ordered for every destination. Confirm the exact supply, efficiency requirement, mounting, shaft and starter before treating it as a drop-in replacement.

Confirm before ordering Send a nameplate photo, supply voltage and frequency, 90S frame dimensions, shaft and foot/flange drawing, start frequency and load. Ask for the offered variant's certified efficiency evidence and dimension sheet.

View YE3-90S-2 1.5kW three-phase induction motor →

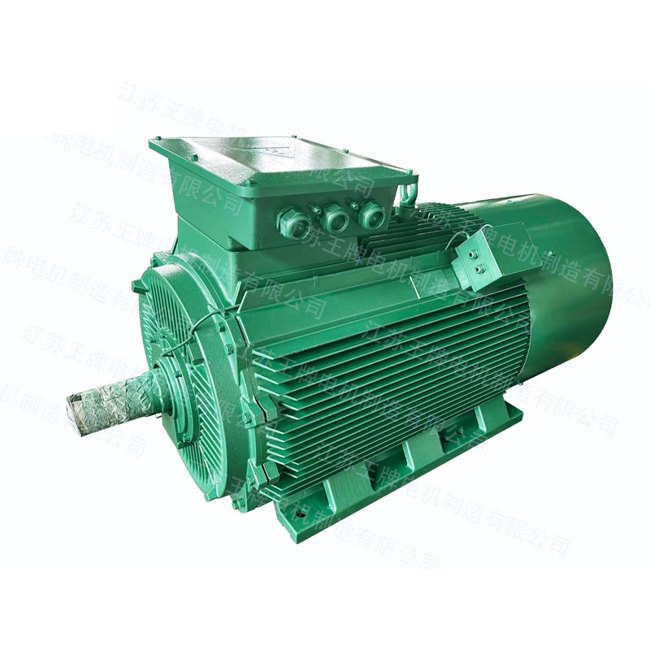

Y2: a high-voltage rotating-equipment project

The Y2 product headline advertises a 185 kW, 6 kV, two-pole motor at 2980 rpm, but the table's 185 kW row is labelled Y2-3551-2 and 2985 rpm. The family page describes 6/10 kV, IP55, IC411 and IMB3 as its standard context; it also says the two-pole external fan is directional, unlike the 4–8-pole fan arrangement. A crusher, hoist or coal-mill duty needs a technical agreement rather than a generic high-voltage catalogue choice.

Confirm before ordering Specify supply and starting method, load inertia and torque curve, rotation direction, cooling air, vibration limits, coupling and bearing loads. Ask Wangpai to reconcile Y2-355-2 versus Y2-3551-2 and 2980 versus 2985 rpm in the quotation and drawing.

View Y2-355-2 185kW high-voltage induction motor →

TPTYC: low-speed permanent-magnet direct drive

TPTYC is a variable-frequency permanent-magnet synchronous drive rather than a line-start induction-motor swap. Its official table groups 60, 75 and 90 rpm designs by centre height, voltage and power. A 60 rpm row lists 30 kW and 4775 N·m at 450 mm centre height, although the page's short family summary begins at a higher power. The table and headline therefore need model-specific reconciliation; no range endpoints are combined into one machine.

Confirm before ordering Provide load torque through the speed range, start and overload profile, gearbox removal plan, available VFD, mounting envelope, shaft and thermal arrangement. Request the exact TPTYC row, matched inverter settings and a signed performance/dimension sheet.

View Synchronous motor range →

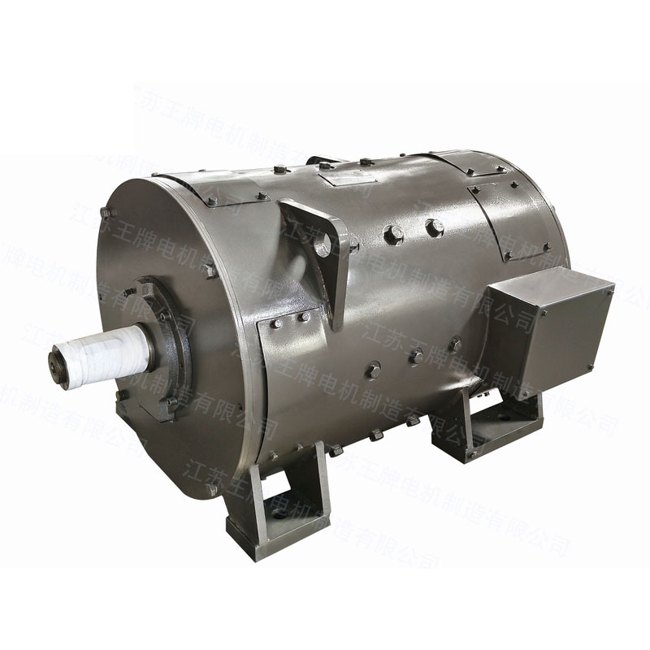

ZZJ: DC rolling-mill auxiliary duty

The ZZJ-800 literature covers roller tables, screw-down equipment, loopers and shears with repeated start, brake and reversal. The series includes different excitation, enclosure, cooling and S1/S2/S3 duty combinations. Its ZZJ-818 heading highlights 186 kW and 410 rpm, but the table has further speed and duty columns; 186 kW at one duty must not be read as a universal continuous rating. The armature circuit and field circuit need separate supply checks.

Confirm before ordering Send the existing motor's armature and field data, duty cycle and starts/reversals per hour, rectifier, ventilation, base and tapered shaft drawing. Ask for a specific ZZJ-818 winding, duty, cooling, enclosure and commutation test record.

View ZZJ-818 186kW DC rolling-mill auxiliary motor →

02 / CATALOGUE CHECKPOINTS

Three catalogue details that can change a purchase order

A headline is not always a table row

The Y2 page's headline and 185 kW row differ in both code and stated rpm. Use the table to frame the question, then put the supplier-confirmed model, performance tolerances and drawing revision on the purchase order. A nominal 2-pole speed alone does not establish interchangeability.

Permanent-magnet table and summary need reconciliation

The TPTYC table contains a 30 kW, 60 rpm row while its short description begins at a higher power. That may be a catalogue maintenance issue, but the page does not explain it. Confirm availability, drive voltage, thermal method and inverter pairing for the exact row before specifying a direct-drive conversion.

DC ratings depend on cooling and duty

The ZZJ literature separates naturally or fan-cooled enclosed builds from ducted or independently ventilated versions, and continuous S1 from short-time S2 and intermittent S3 duty. Its table also divides excitation types. Transfer neither 186 kW nor 410 rpm to a different excitation/duty combination without the supplied motor schedule.

03 / GIVE ENGINEERING A COMPLETE BRIEF

Ask for one confirmed build, not an attractive series range

Wangpai's company site names AC high-voltage, DC and permanent-magnet production as well as controls and retrofit work. Those are manufacturer descriptions; this review did not verify production capacity, a current quality certificate or a plant audit. For a replacement, the decisive evidence is a model-specific offer aligned to the existing machine and supply.

Electrical interface

State frequency, voltage, starter or converter type, protective devices and cable constraints. For the high-voltage line include switchgear starting limits; for TPTYC include the VFD; for ZZJ include independent armature and field supply conditions.

Mechanical and thermal interface

Supply the existing drawing, shaft/coupling, bearing loads, installation orientation, enclosure and cooling air path. Confirm rotation direction on a two-pole Y2. For a DC motor, specify external air and duct requirements where the selected duty depends on ventilation.

Acceptance documents

Require a quotation with exact suffix, rating and duty, outline and terminal drawings, winding/drive schedule, test scope, nameplate format and revision. Record how the supplier resolved the catalogue conflicts before sample or production approval.
