A crane motor is selected against a movement cycle, not just a kilowatt figure. Hongtai's YZ cage-rotor and YZR wound-rotor ranges serve lifting and metallurgical machinery, but require different controls. Send the existing nameplate, motion cycle, rotor connections and brake details to obtain an exact-frame, exact-duty quote.

LocationJiangsu, China
Published catalogue2 product series
Motor families1 represented

HONGTAI · CRANE AND METALLURGY DRIVES

Hongtai crane motors: choose YZ cage or YZR wound rotor by duty

Explore the published range ↓

01 / CHOOSE THE ROTOR SYSTEM

The same crane duty can conceal two incompatible motor circuits

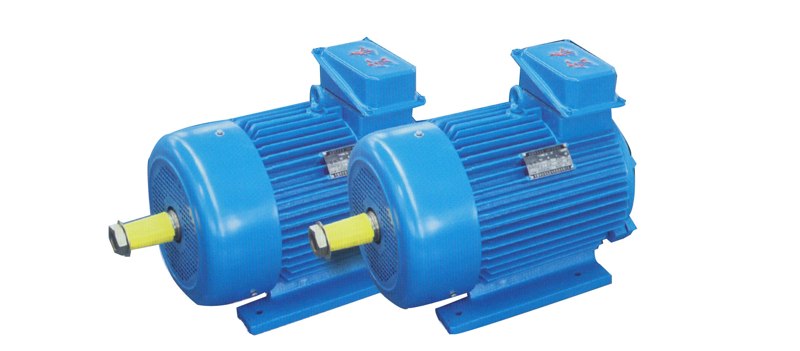

YZ: cage-rotor drive

Hongtai identifies YZ as its cage-rotor crane/metallurgy series. Its own overview describes frequent starts, reversing and electrical or mechanical braking under intermittent service. A cage-rotor replacement still has to match the starter or inverter, starting current, permitted start frequency and brake timing; a 380 V label by itself does not establish compatibility with the existing panel.

Confirm before ordering Send the present YZ nameplate, line and starter data, hoist/travel function, load cycle, starts and reversals per hour, brake sequence, shaft and mounting drawing. Ask for the selected frame's rated output at the proposed duty, current, torque limits and thermal evidence.

View YZ cage-rotor crane and metallurgy motor →

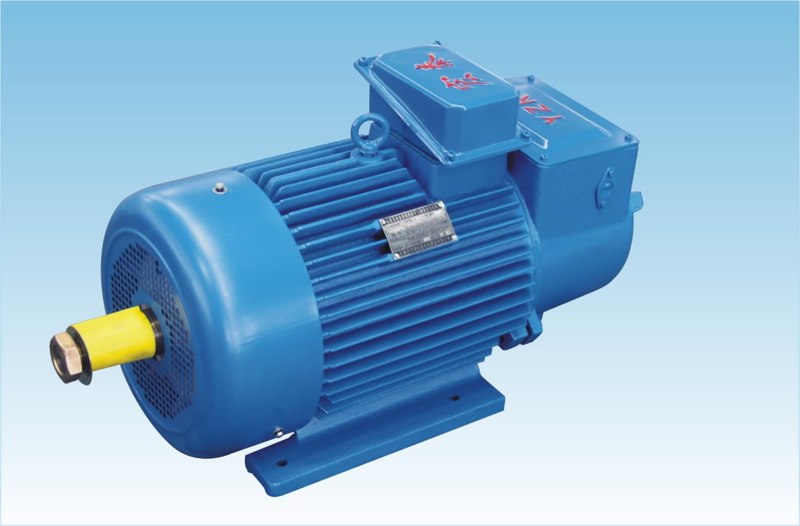

YZR: wound-rotor drive

The YZR page explicitly identifies a wound rotor. Existing cranes may use external rotor resistance to control acceleration and torque. A replacement must therefore be checked as part of the motor, rotor-resistor and controller system, including slip-ring connections and the actual braking sequence. It cannot be substituted for a YZ cage motor solely because shaft kW and flange appear similar.

Confirm before ordering Provide rotor-terminal and resistor-bank drawings, contactor stages, starting/reversing sequence, brake and gearbox data. Request the exact YZR rotor electrical data, connection diagram, frame/pole/duty rating and permitted cycle for the offered build.

View YZR wound-rotor crane and metallurgy motor →

02 / THERMAL SIZING

Count starts, jogging, reversals and braking in the real shift

The published baseline is S3-40%, not universal continuous duty

Hongtai says the catalogue rating is normally given at an S3 40% reference duty. Its explanation also distinguishes S4, which includes starting, from S5, which includes electrical braking. The page shows example starts-per-hour groupings, but those are calculation categories, not a promise that every frame tolerates the highest group. Specify actual loaded run, idle interval and starts in a ten-minute cycle before comparing quotes.

Ambient and enclosure depend on the application

The maker separates up-to-40°C lifting service from up-to-60°C metallurgical cooling-medium conditions and describes different insulation and protection variants for those contexts. Do not apply the more severe environment rating to an unspecified standard motor. State measured ambient, radiant heat, dust and water exposure, then ask which insulation, IP and cooling arrangement belongs to the quoted frame.

A brake is a system requirement

Hongtai lists separate electromagnetic-brake and variable-frequency crane families in its catalogue. The YZ or YZR name alone does not mean a holding brake is built in. For vertical lifting, request the holding and dynamic braking arrangement, release timing, safe-stop behavior and who supplies each component.

03 / MECHANICAL AND ELECTRICAL FIT

Match the existing crane before changing its motor architecture

Which physical interface cannot move?

Record foot or flange mounting, shaft end, key, coupling or pinion, available envelope and terminal-box exit. Hongtai's catalogue distinguishes cylindrical shaft ends on smaller frames and tapered ends on larger ones, and lists horizontal and vertical mounting patterns. Require the offered motor's dimensioned drawing rather than assuming a common frame number is drop-in compatible.

What supply and control are actually present?

The catalogue uses 380 V and 50 Hz as its stated baseline, but destination-site supply may differ. Give measured voltage/frequency, starter or inverter details, cable length, protections and controller sequence. For YZR include the rotor-resistor circuit; for YZ establish starting current and torque against the existing panel.

What acceptance test closes the RFQ?

Agree loaded acceleration, reversal and stop tests at the specified duty, brake coordination, winding temperature, vibration and fit at the coupling. Compare vendor offers on the same cycle chart and request the nameplate, routine test report, connection drawing and warranty boundary for the exact production code.

04 / WHAT IS DOCUMENTED

The company and motor families are identifiable; a build-specific quote is still needed

Manufacturer and family

The company's published Chinese identity is 无锡市宏泰电机股份有限公司, located in Wuxi's Qianzhou area. Its catalogue has distinct YZ cage and YZR wound-rotor entries plus brake, VFD and other crane variants. An independent trade-show organizer listing cross-checks the company identity and crane/metallurgy focus; it does not certify a particular motor.

A catalogue wording error should not become a specification

The technical page correctly pairs 380 V with 50 Hz in one section but elsewhere labels 50 Hz as rated current. Frequency cannot be current; ask for the selected motor's actual nameplate and test sheet. The large company-wide power range and generic duty tables are not exact-model ratings, and no quote, approval, torque curve or brake capacity has been independently established for a buyer's proposed configuration.

Published motor range

2 series

Company information

Company name
Wuxi Hongtai Motor Co., Ltd.
Chinese registered name
无锡市宏泰电机股份有限公司
Region
Jiangsu, China
Record updated
2026-10-07
