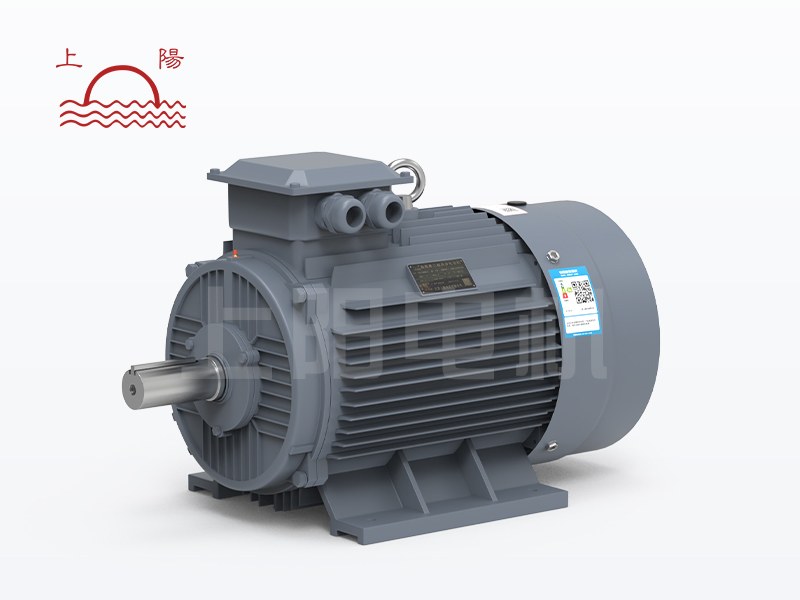

YE4 industrial induction motor family

Manufacturer catalogue image · Series illustration

AC induction motors

YE4 industrial induction motor family

Power
0.12–315 kW
Voltage
200–1140 V family options
Cooling
IC411
Mounting
B3 / B5 / B35 / V1

Catalogue series · Exact configuration and availability confirmed by the manufacturer.

CATALOGUE OVERVIEW

About this motor series

Shangyang's YE4 technical sheet describes an industrial induction-motor family with frame heights H63–H355 and output ratings spanning 0.12–315 kW. It lists two- through eight-pole options, 50 Hz operation, class F insulation and IC411 cooling. Mounting and enclosure alternatives are shown separately, including B3, B5, B35 and V1 arrangements and IP55, IP56 or IP65 options. These alternatives should not be interpreted as one standard build. The manufacturer identifies uses such as pumps, fans, compressors, machine tools and conveyors. To obtain a comparable quotation, specify the voltage and pole count along with shaft power, mounting and environment. Ask for the model-level efficiency data and confirm which protective and installation options are included in the offered motor.

Model / series reference: YE4

Published specifications

Specifications describe a series range; confirm which ratings apply together to the quoted model.

Power
0.12–315 kW
Voltage
200–1140 V family options
Cooling
IC411
Mounting
B3 / B5 / B35 / V1
Frequency
50 Hz
Insulation
Class F
Frame Range
H63–H355
Pole Options
2–8
Protection Options
IP55 / IP56 / IP65
Speed
Model dependent

Confirm mounting and shaft dimensions against the drawing for the quoted configuration.

Catalogue reference

Manufacturer
Shangyang
Product reference
YE4 industrial induction motor family
Source reviewed
2026-09-23

Ask for the current datasheet and dimensioned drawing with your inquiry.

Selection guidance for AC induction motors
  • Rated output and duty
  • Voltage, phase and frequency
  • Pole count and rated speed
  • IEC frame and mounting
  • Efficiency class and enclosure
